SELECT A DIAGRAM

02 - Cooktop


03 - Door And Drawer


04 - Oven, Literature And Optional


05 - Control Panel


06 - Oven (continued)


07 - Wiring Harness

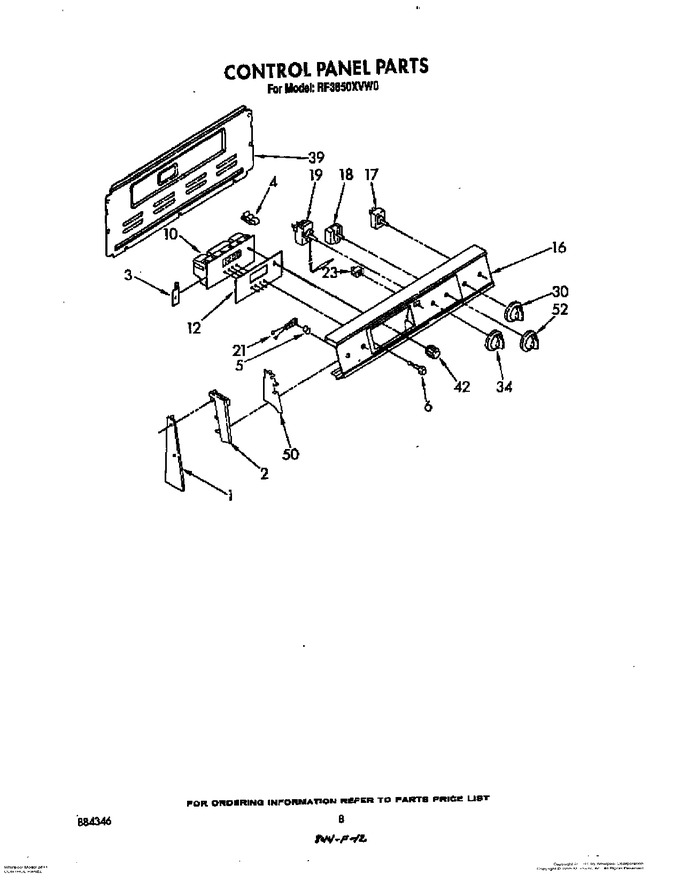

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313188		End Trim L.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
1	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
1	313189		End Trim R.h.		Appelez-nous	-
2	254225		Screw (4)		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
2	313231		End Cap L.h.		Appelez-nous	-
3	3148817		Bracket, Timer (2)		Appelez-nous	-
3	WP965173		Screw (2)   (Replaces: 246132)			Immediately	$ 11.87
4	98005642		Clip (2) Thermostat Bulb   (Replaces: 313382)			Immediately	$ 87.08
5	313101		Lens, Light (5)		Appelez-nous	-
6	314132		Button, Set (4)		Appelez-nous	-
10	3149808		Timer		Appelez-nous	-
12	3148978		Glass, Timer		Appelez-nous	-
16	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
16	3148842		Control, Panel		Appelez-nous	-
17	WP3149400		Switch, Infinite (8`` Unit (2))   (Replaces: 3148954)			Immediately	$ 90.51
17	WP3148952		Switch, Infinite (6`` Unit (2))   (Replaces: 3148952)			Immediately	$ 69.51
17	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.89
18	3147832		Nut (2)		Appelez-nous	-
18	WP486579		Screw (2)   (Replaces: 311865)				$ 7.89
18	312288		Switch, Selector		Appelez-nous	-
19	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
19	3148933		Thermostat, Oven				$ 181.60
21	3148719		Light, Indicator (locked)		Appelez-nous	-
21	313102		Light, Indicator (surface Unit On (2))				$ 66.48
21	314031		Light, Indicator (oven Heating)				$ 62.88
23	WP4314961		Switch, Rocker   (Replaces: 3148564)				$ 93.95
30	330171		Knob, (4) Surface Unit		Appelez-nous	-
34	330169		Knob, Thremostat		Appelez-nous	-
39	WP681414		Screw, 10-16 X 1/2 (12)   (Replaces: 343641)			Immediately	$ 8.47
39	313195		Rear Cover Control Panel		Appelez-nous	-
42	313523		Knob, Bit Generator				$ 13.66
50	313608		Shield, Control Panel (2)		Appelez-nous	-
50	WP965173		Screw (4)   (Replaces: 246132)			Immediately	$ 11.87
52	WP688805		Spring, Knob   (Replaces: 688805)			Immediately	$ 8.20
52	330172		Knob, Selector		Appelez-nous	-
