SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Oven


04 - Wiring Harness

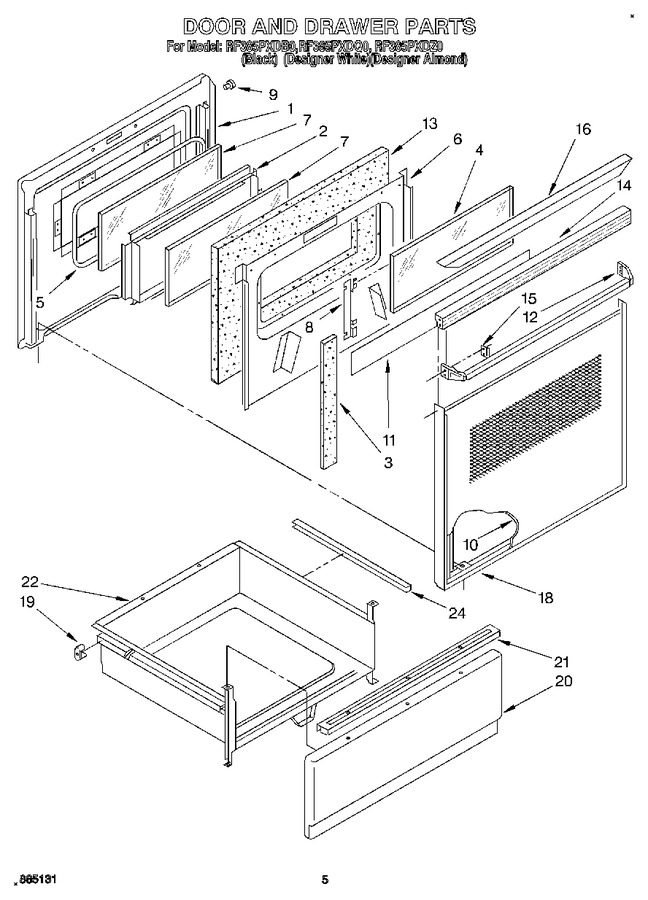

05 - Door And Drawer


06 - Unit, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172218		Liner, Oven Door		Appelez-nous	-
2	3148234		Frame, Inner Glass		Appelez-nous	-
2	3185647		Screw (6)		Appelez-nous	-
3	3148441		Seal, Foam		Appelez-nous	-
4	3169202		Glass, Clear		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148443		Screw (4)		Appelez-nous	-
6	3148159		Retainer, Insulation		Appelez-nous	-
7	WP3169203		Glass, Inside/outside   (Replaces: 3169203)				$ 150.79
8	3185647		Screw (4)		Appelez-nous	-
8	3148187		Retainer, Glass		Appelez-nous	-
9	3148182		Bumper (4)		Appelez-nous	-
10	3188739		Outer Glass, Door (black)		Appelez-nous	-
10	3189263		Outer Glass, Door (designer Almond)		Appelez-nous	-
10	3188738		Outer Glass, Door (designer White)		Appelez-nous	-
11	3169191		Foil		Appelez-nous	-
12	3188696		Handle, Door (designer White)		Appelez-nous	-
12	3188695		Handle, Door (black)		Appelez-nous	-
12	WP999367		Handle, Door (screw (2))   (Replaces: 3169474)				$ 7.86
12	3188697		Handle, Door (designer Almond)		Appelez-nous	-
13	3147951		Insulation, Door		Appelez-nous	-
14	3188694		Top, Door Vent (designer Almond)		Appelez-nous	-
14	3188692		Top, Door Vent (black)		Appelez-nous	-
14	3149333		Top, Door Vent (screw, Black (2))				$ 5.33
14	3188693		Top, Door Vent (designer White)		Appelez-nous	-
15	3148282		Clip (2)				$ 8.69
16	3189001		Cap, Door Top (designer White Mdl.)		Appelez-nous	-
16	3188400		Cap, Door Top (screw (2))		Appelez-nous	-
16	3189002		Cap, Door Top (designer Almond)		Appelez-nous	-
16	3188399		Cap, Door Top (screw (2))		Appelez-nous	-
18	3188403		Frame, Outer Glass (screw (4))		Appelez-nous	-
18	3188999		Frame, Outer Glass (designer Almond)		Appelez-nous	-
18	3188404		Frame, Outer Glass (screw (4))		Appelez-nous	-
18	3188997		Frame, Outer Glass (black)		Appelez-nous	-
18	3149333		Frame, Outer Glass (screw (3))				$ 5.33
18	3149253		Frame, Outer Glass (screw (4))		Appelez-nous	-
18	3188998		Frame, Outer Glass (designer White)		Appelez-nous	-
18	3185918		Frame, Outer Glass (screw (3))		Appelez-nous	-
19	307980		Glide, Rear		Appelez-nous	-
19	WP488627		Screw (2)   (Replaces: 313349)				$ 7.57
20	3169423		Panel Drawer (almond)		Appelez-nous	-
20	3169422		Panel Drawer (white)		Appelez-nous	-
20	WP488627		Panel, Drawer (screw)   (Replaces: 313349)				$ 7.57
20	3169424		Panel, Drawer (black)		Appelez-nous	-
21	3184530		Handle, Drawer (black)		Appelez-nous	-
21	3169472		Handle, Drawer (almond)		Appelez-nous	-
21	3169473		Handle, Drawer (white)		Appelez-nous	-
22	327887		Drawer, Utility		Appelez-nous	-
24	309329		Protector, Drawer (2)		Appelez-nous	-
