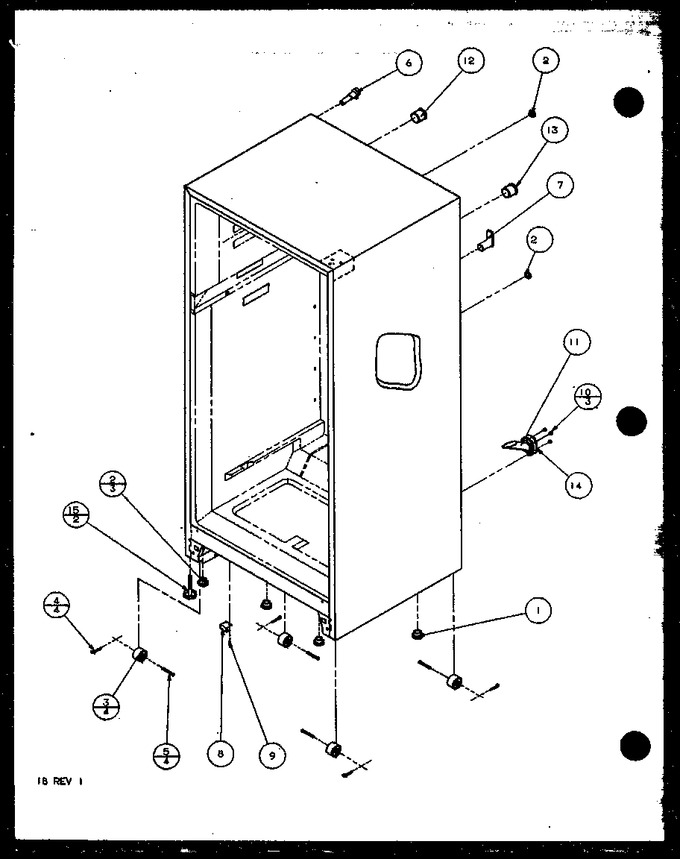

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 2 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 3 | M0520102 | Roller |
|
- | |||||
| 4 | M1200004 | Cotter Pin K |
|
- | |||||
| 5 | M1200202 | Pin K |
|
- | |||||
| 6 | B8318805 | Fill Tube Assy |
|
- | |||||
| 7 | B5749501 | Tunnel-heat Ex |
|
- | |||||
| 8 | 10161301 | Holder Tube |
|
- | |||||
| 9 | WP489069 | Screw-sd (Replaces: M0233704) |
|
Immediately | $ 8.40 | ||||
| 10 | W11233072 | Screw (Replaces: M0214931) |
|
Immediately | $ 14.72 | ||||
| 11 | 10163201 | Elbow Drain Tube |
|
- | |||||
| 12 | 10110401 | Tunnel, Wire |
|
- | |||||
| 13 | Y10110501 | Tinnel, Wire |
|
- | |||||
| 14 | A3132301 | Gasket |
|
- | |||||
| 15 | M0266510 | Glider Bolt |
|
- |
