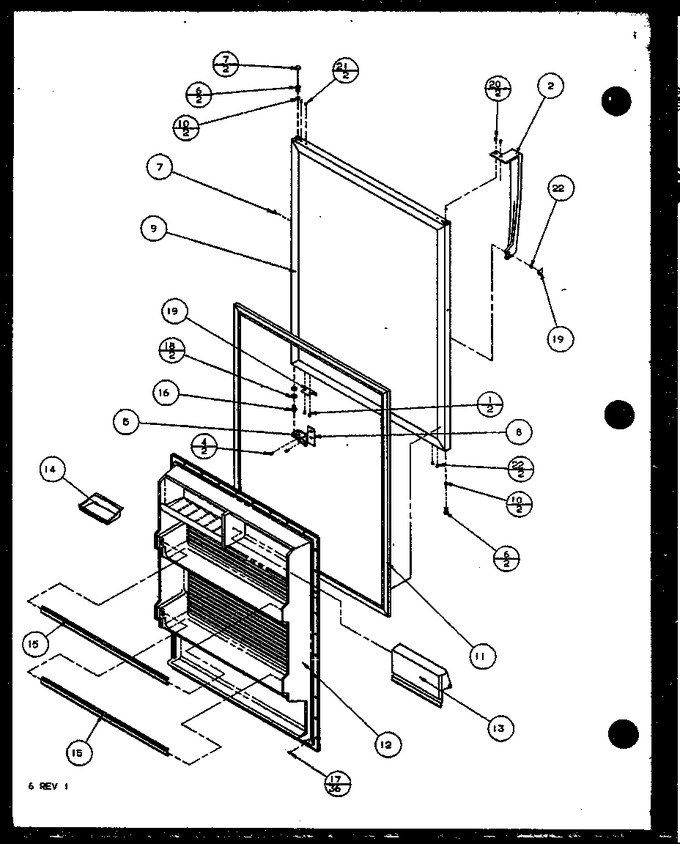

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0203458		Screw		Appelez-nous	-
2	10253508		Ref Handle Assy Bk		Appelez-nous	-
4	M0233844		Screw, T F		Appelez-nous	-
5	10163607		Btm Hinge Brkt E		Appelez-nous	-
6	10253001		Bushing		Appelez-nous	-
6	10253002		Bushing		Appelez-nous	-
7	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 5.98
7	M0310714		Plug		Appelez-nous	-
7	M0310704		Plug		Appelez-nous	-
8	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
8	B5744802		Shim		Appelez-nous	-
8	B5744803		Shim		Appelez-nous	-
8	B5744804		Shim, Bottom Hinge		Appelez-nous	-
9	10253902Q		Ref Door Foam Assy		Appelez-nous	-
9	10253901Q		Foam Dr As Wht Cfc 11		Appelez-nous	-
9	10253910Q		W Ref Dr. Foam Assy		Appelez-nous	-
9	10253911Q		L Ref Dr. Foam Assy		Appelez-nous	-
9	10253903Q		Foam Dr As Almd Cfc11		Appelez-nous	-
10	10252901		Bushing		Appelez-nous	-
11	D7605112		Gasket, Door		Appelez-nous	-
12	D7652403		Inner Dr Panel Ref W		Appelez-nous	-
13	D7604422		Door Dairy		Appelez-nous	-
14	10310901		Tray, Butter		Appelez-nous	-
15	C8907234		Retainer Package		Appelez-nous	-
16	C8814901		Pin, Hinge K		Appelez-nous	-
17	M0219730		Screw				$ 7.65
18	M0274049		Washer		Appelez-nous	-
19	10201810		Cover, Handle Screw-blk		Appelez-nous	-
19	10266101		Stop Door		Appelez-nous	-
20	WPW10348409		Screw   (Replaces: M0222429)			Immediately	$ 8.20
22	M0203931		Screw, Tf		Appelez-nous	-
