01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318276 Burner Assembly

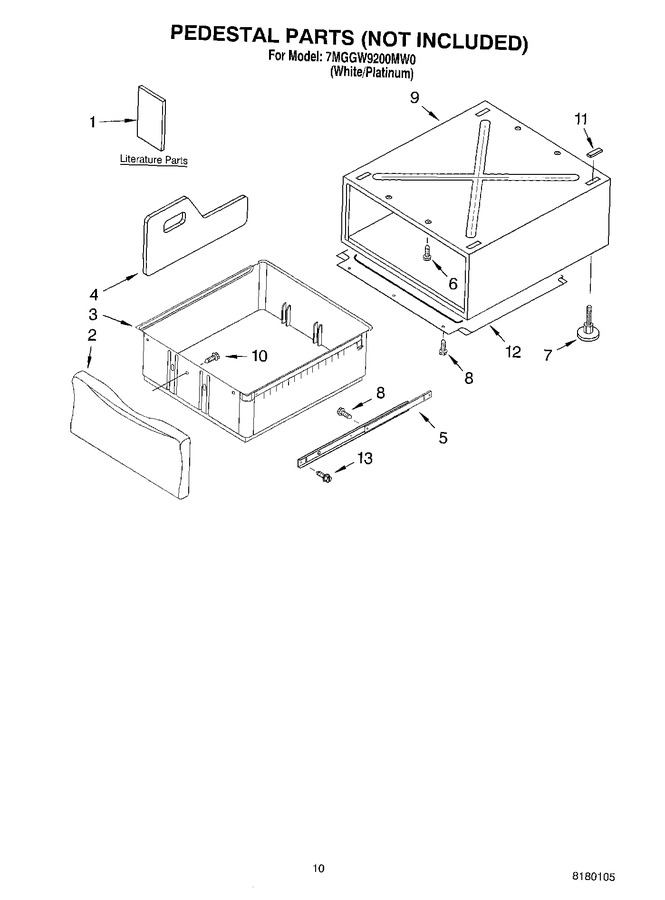

05 - Door Parts


06 - Pedestal Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8537342		Literature Parts (parts List)		Appelez-nous	-
1	LIT8537141		Literature Parts (installation Instructions)		Appelez-nous	-
2	8537908		Drawer Front Assembly (pewter)		Appelez-nous	-
2	8537870		Drawer Front Assembly (white)		Appelez-nous	-
2	8537871		Drawer Front Assembly (biscuit)		Appelez-nous	-
2	8537872		Drawer Front Assembly (graphite)		Appelez-nous	-
3	8537883		Drawer Bin				$ 113.24
4	8537875		Divider, Drawer (set Of 2)		Appelez-nous	-
5	WP8578394		Slide Assembly   (Replaces: 8537850)				$ 103.07
6	WPW10346892		Screw   (Replaces: 3400111)			Immediately	$ 7.55
7	WP8563585		Foot Assembly   (Replaces: 8537852)			Immediately	$ 14.76
8	WP3388228		Screw, 6-20 X 3/8   (Replaces: 3400639)				$ 7.30
9	N/A		Cabinet (not Serviced)		Appelez-nous	-
10	WP1163283		Screw, 8-18 X 1/2   (Replaces: 3400842)				$ 7.55
11	8537863		Pad (4)				$ 34.34
12	8537853		Pan, Bottom		Appelez-nous	-
13	3400618		Screw				$ 67.94
