Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 330086 Main Chassis (white) Appelez-nous -
1 330090 Main Chassis (almond) Appelez-nous -
1 WP681414 Main Chassis (screw 10-32 X 1/2)   (Replaces: 690989) In-Stock Immediately $ 8.47

2 238614 Bumper, Cooktop (2) Special Order $ 84.79

3 WPW10058460 Leg, Leveling (4)   (Replaces: 3150150) In-Stock Immediately $ 8.24

4 311056 Screw (2) Appelez-nous -
4 3172194 Frame, Front Appelez-nous -
4 3150537 Screw (1) Appelez-nous -
5 307985 Pin, Hinge (2) Special Order $ 29.54

6 3148284 Seal, Door Appelez-nous -
7 308306 Pushnut (2) Appelez-nous -
8 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 8.47

8 327891 Hinge (l.h.) Appelez-nous -
8 327890 Hinge (r.h.) Appelez-nous -
9 3172547 Oven (30`` Pyro) Appelez-nous -
9 311056 Screw (3) Appelez-nous -
10 W11594027 Socket Assembly   (Replaces: 3150505) In-Stock Immediately $ 87.01

11 8009 Bulb, Oven Light   (Replaces: 311255) In-Stock Immediately $ 18.67

15 311220 Bracket, Oven (mounting) Appelez-nous -
15 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 8.47

16 307961 Vent, Oven Appelez-nous -
16 307748 Screw, 10a X 1/2 (2) Appelez-nous -
17 8273888A Bracket, Anchor   (Replaces: 3148603) Special Order $ 32.62

17 3148604 Screw (2) Appelez-nous -
18 3148605 Anchor, Plastic Appelez-nous -
19 329710 Channel, Arm (2) Appelez-nous -
20 WP307986 Hinge Pin (2)   (Replaces: 307986) Special Order $ 15.81

21 307594 Ring, Retainer (2) Appelez-nous -
22 WP308126 Spring, Oven Door (2)   (Replaces: 308126) Special Order $ 48.22

23 WP308125 Anchor, Spring (2)   (Replaces: 308125) Special Order $ 12.74

24 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 8.47

24 313196 Support, L.h. Post Appelez-nous -
24 313197 Support, R.h. Post Appelez-nous -
25 310345 Switch, Door (2) Special Order $ 94.86

26 309111 Snubber, Door Appelez-nous -
27 314209 Broil Switch Appelez-nous -
27 314215 Screw, No.6 Appelez-nous -
28 314210 Bake Switch Appelez-nous -
28 314215 Screw, No.6 Appelez-nous -
29 98005642 Bulb Clip (2)   (Replaces: 313382) In-Stock Immediately $ 87.08


    View Diagram in Separate Window     Print Icon   Print Part List

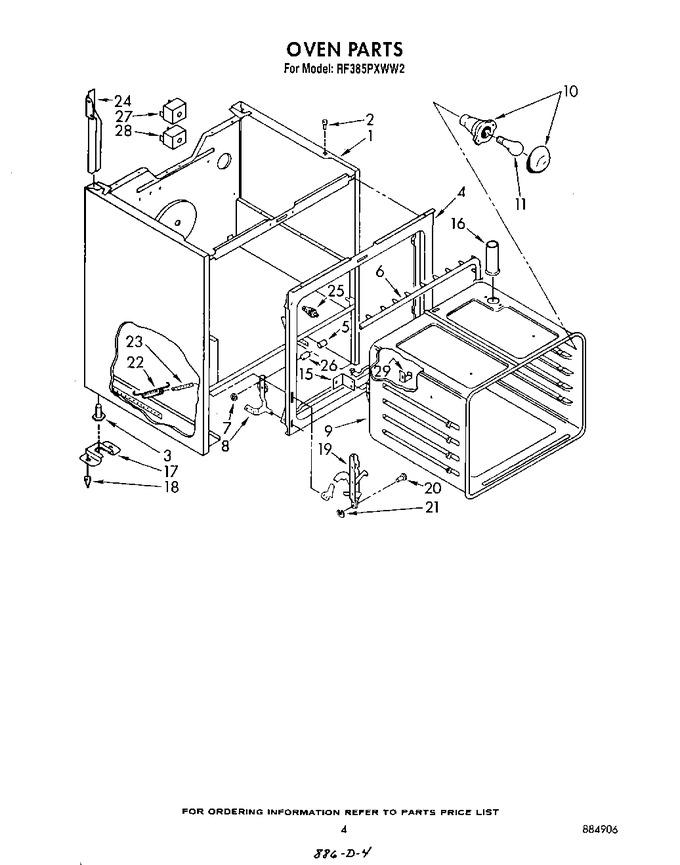

Diagram for RF385PXWW2
