SELECT A DIAGRAM

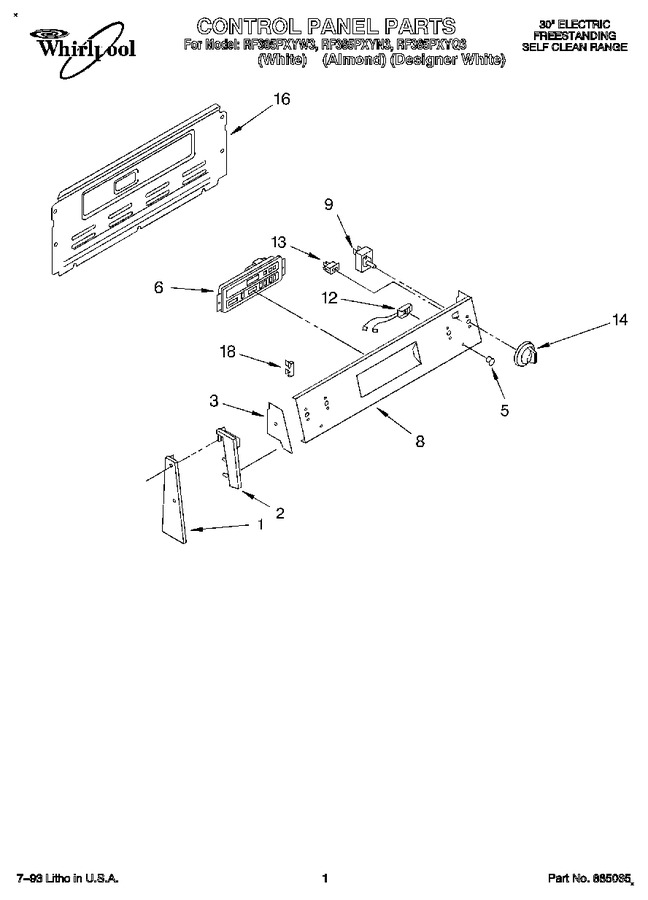

01 - Control Panel


02 - Oven


03 - Cooktop


04 - Door And Drawer


05 - Unit, Literature


06 - Wiring Harness, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313190		End Trim L.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
1	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
1	313191		End Trim R.h.		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
2	313231		End Cap L.h.		Appelez-nous	-
2	254225		Screw (4)		Appelez-nous	-
3	313608		Shield, L. Or R.		Appelez-nous	-
3	WP965173		Screw, (2) 8a X 3/8   (Replaces: 246132)			Immediately	$ 11.87
5	313101		Lens, Light (2)		Appelez-nous	-
6	3169257		Electronic Control (designer White Mdl)		Appelez-nous	-
6	3169256		Electronic Control (white/almond Mdl.)		Appelez-nous	-
6	WP965173		Electronic Control (screw (2))   (Replaces: 246132)			Immediately	$ 11.87
8	3169211		Control Panel (designer White Mdl)		Appelez-nous	-
8	3169210		Control Panel (white/almond Mdl.)		Appelez-nous	-
9	WP3149400		Switch, Infinite (8`` Unit (2))   (Replaces: 3148954)			Immediately	$ 90.51
9	5500-287		Switch, Infinite (6`` Unit (2))   (Replaces: 3148951)			Immediately	$ 52.39
9	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
12	313102		Indicator Light (2)				$ 66.48
13	3182718		Switch, Rocker (designer White Mdl)		Appelez-nous	-
13	3182717		Switch, Rocker (white/almond Mdl.)		Appelez-nous	-
14	3183118		Knob, (4) Infinite Switch (white/almond Mdl.)				$ 23.04
14	3183117		Knob, (4) Infinite Switch (designer White Mdl)				$ 24.34
14	WP681414		Knob, (4) Infinite Switch (screw, 10-16 X 1/2 (2))   (Replaces: 343641)			Immediately	$ 8.47
16	WP681414		Screw, 10-16 X 1/2 (12)   (Replaces: 343641)			Immediately	$ 8.47
16	3187332		Rear Cover Control Panel		Appelez-nous	-
18	98520		Screw (1)		Appelez-nous	-
18	WP3196548		Fuse, Thermal   (Replaces: 313214)			Immediately	$ 50.10

    View Diagram in Separate Window       Print Part List
