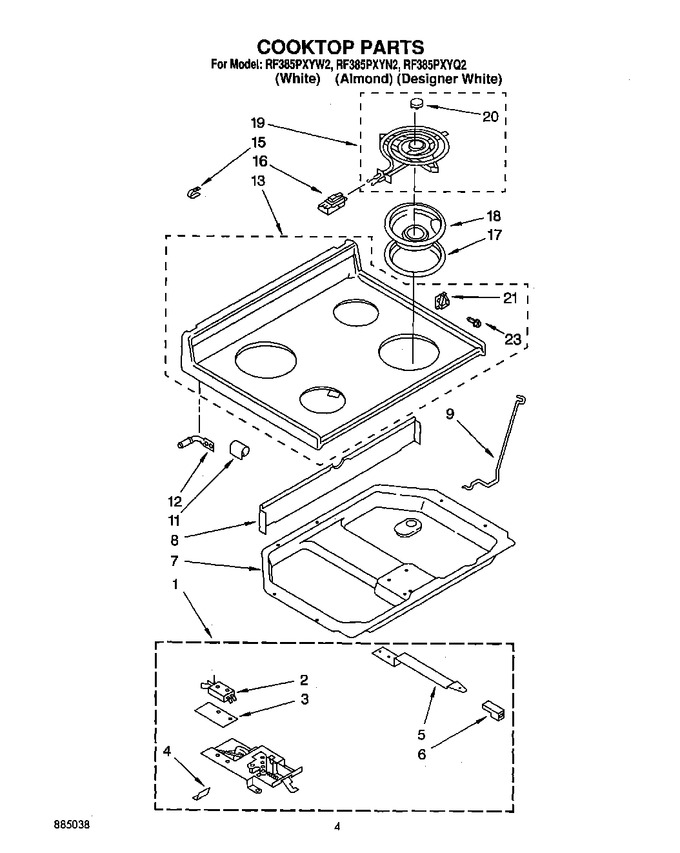

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183319		Latch Asm Complete W/wire Harness (designer White)		Appelez-nous	-
1	3183321		Latch Asm Complete W/wire Harness (white/almond)		Appelez-nous	-
1	WP681414		Latch Asm Complete W/wire Harness (screw (2))   (Replaces: 343641)			Immediately	$ 7.85
2	98106		Screw (2)		Appelez-nous	-
2	3183096		Safety Switch		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	313035		Shield, Latch		Appelez-nous	-
4	309258		Screw,6-3/8 (2)		Appelez-nous	-
5	3169081		Handle, Latch (white/almond)		Appelez-nous	-
5	3150175		Handle, Latch (designer White)		Appelez-nous	-
5	308422		Handle, Latch (screw (2))		Appelez-nous	-
6	155023		Knob, Latch (screw, 8-32 X 1/4)			Immediately	$ 7.91
6	3148684		Knob, Latch (black)		Appelez-nous	-
6	3150174		Knob, Latch (white)		Appelez-nous	-
7	WP3390631		Screw (4)   (Replaces: 309112)				$ 7.82
7	3169186		Box, Burner		Appelez-nous	-
8	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 7.85
8	307973		Shield, Wiring		Appelez-nous	-
9	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
9	3148659		Rod, Cooktop		Appelez-nous	-
11	307965		Bracket, Cooktop (2)		Appelez-nous	-
11	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 7.85
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
12	307966		Pin, Cooktop (2)		Appelez-nous	-
13	WP681414		Cooktop (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.85
13	3170982		Cooktop (almond)		Appelez-nous	-
13	3170981		Cooktop (white)		Appelez-nous	-
15	WP308605		Strain, Relief   (Replaces: 308605)				$ 11.20
15	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
16	WP313808		Screw, 6-32 X 1/4 (4)   (Replaces: 313808)				$ 7.60
16	330031		Receptacle, Clip (4)   (Replaces: 312606)			Immediately	$ 16.09
17	W10858781		Adapter Ring Designer Mdl. Only (8`` (2))   (Replaces: 3150245)				$ 95.16
17	W10854470		Adapter Ring Designer Mdl. Only (6`` (2))   (Replaces: 3150244)				$ 90.41
18	WPW10290350		Reflector Pan Designer Model (8`` (2))   (Replaces: 3169205)			Immediately	$ 16.94
18	3150198		Reflector Pan Designer Model (6`` (2))		Appelez-nous	-
18	W10291024		Reflector Pan Designer Model (8`` (2) Pan-combination White/almond)   (Replaces: 3150199)			Immediately	$ 55.44
18	W10290353RW		Reflector Pan Designer Model (6`` (2))   (Replaces: 3169204)			Immediately	$ 21.41
19	WP660533		Unit, Surface (8`` (2) (includes Illus. 20))   (Replaces: 660533)			Immediately	$ 43.86
19	WP660532		Unit, Surface (6`` (2))   (Replaces: 660529)			Immediately	$ 41.00
20	309195		Medallion (4)		Appelez-nous	-
21	814103		Clip, Hold Down (4)   (Replaces: 3148790)				$ 10.02
23	814103		Fastener (4)   (Replaces: 3148789)				$ 10.02
