Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 330090 Main Chassis (almond) Appelez-nous -
1 330086 Main Chassis (white) Appelez-nous -
1 3181515 Main Chassis (black) Appelez-nous -
1 WP681414 Main Chassis (screw 10-32 X 1/2)   (Replaces: 690989) In-Stock Immediately $ 8.47

2 307748 Screw (8) Appelez-nous -
2 3169109 Tube, Vent Appelez-nous -
3 3169499 Leg Leveling (4) Appelez-nous -
4 311056 Screw (2) Appelez-nous -
4 3176718 Frame Front Appelez-nous -
4 3150537 Screw (1) Appelez-nous -
5 307985 Pin, Hinge (2) Special Order $ 29.54

6 3169251 Seal, Door Appelez-nous -
7 308306 Pushnut (2) Appelez-nous -
8 3176711 Hinge, L.h. Appelez-nous -
8 3176710 Hinge, R.h. Appelez-nous -
8 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 8.47

9 311056 Screw (3) Appelez-nous -
9 3176611 Oven (30`` Pyro) Appelez-nous -
10 W11594027 Socket, Lamp   (Replaces: 3150505) In-Stock Immediately $ 87.01

11 8009 Bulb, Oven Light   (Replaces: 311255) In-Stock Immediately $ 18.67

15 311220 Bracket, Oven (mounting) Appelez-nous -
15 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 8.47

16 3169365 Vent, Oven Appelez-nous -
16 307748 Screw (2) Appelez-nous -
17 3169418 Support, Foot (2) Appelez-nous -
17 WP681414 Screw (2)   (Replaces: 343641) In-Stock Immediately $ 8.47

18 3169448 Cover, Foot (2) Appelez-nous -
19 3176709 Channel, Arm (2) Appelez-nous -
20 WP307986 Hinge Pin (2)   (Replaces: 307986) Special Order $ 15.81

21 307594 Ring, Retainer (2) Appelez-nous -
22 WP308126 Spring, Oven Door (2)   (Replaces: 308126) Special Order $ 48.22

23 WP308125 Anchor, Spring (2)   (Replaces: 308125) Special Order $ 12.74

24 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 8.47

24 313196 Support Post, L.h. Appelez-nous -
24 313197 Support Post, R.h. Appelez-nous -
25 310345 Switch, Door (2) Special Order $ 94.86

30 309111 Snubber, Door (2) Appelez-nous -
32 3147646 Support, Chassis Appelez-nous -
32 WP3390631 Screw (4)   (Replaces: 309112) Special Order $ 8.25

33 3149006 Shield, Box Appelez-nous -
33 98520 Screw (3) Appelez-nous -
34 3169278 Vent, Box Appelez-nous -
34 3147954 Insulation, Conv. W/w Appelez-nous -
34 3169094 Insulation, Oven Back Appelez-nous -
34 3169093 Insulation, Wrapper Appelez-nous -
34 WP488627 Screw (2)   (Replaces: 313349) Special Order $ 8.11

3147832 Terminal, Adapter Appelez-nous -
242828 Wire (12 Ga. 150 C Black) Appelez-nous -
242826 Wire, White 14 Ga. 150~c Appelez-nous -
242827 Wire (14 Ga. 150 C Yellow) Appelez-nous -
242832 Wire, Yellow 14 Ga. 200~c Appelez-nous -
DD81-03471A Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109) Special Order $ 60.28

DD81-03944A Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108) Special Order $ 109.25

DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 137.86

72112 Paint, (touch-up 1/2 Oz.) (toast) Appelez-nous -
DD81-03496A Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113) Special Order $ 117.11

511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 51.75

350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 40.12

242821 Wire (14 Ga. 150 C Blue) Appelez-nous -
261888 New Avocado Appelez-nous -
261886 Coffee Appelez-nous -
261890 Harvest Gold Appelez-nous -
285365 Toast Appelez-nous -
285366 Paint, Spray (13 Oz.) (platinum) Appelez-nous -
285006 Paint, Spray 13 Oz. (black) Special Order $ 59.89

350942 Primer (white)   (Replaces: 206922) Special Order $ 94.14

206925 Leveler (thinner) (2oz.) Appelez-nous -
799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

978883 Almond (uncut) Appelez-nous -
242822 Wire (14 Ga. 150 C Brown) Appelez-nous -
261891 Harvest Gold (uncut) Appelez-nous -
285367 Enamal, Toast (1 Qt. Uncut) Appelez-nous -
285368 Platinum (uncut) Appelez-nous -
799832 Kit. Porcelain Repair (white) Appelez-nous -
8212471 Touch-up Self-clean(1/2 Pt)   (Replaces: 242756) In-Stock Immediately $ 87.22

261582 Grease Appelez-nous -
CERAMABRYTE Glass Cleaner   (Replaces: 3184477) In-Stock Immediately $ 9.95

WPW10208653 Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514) In-Stock Immediately $ 55.47

WPW10208653 Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132) In-Stock Immediately $ 55.47

241430 Foil, Aluminum Oven (18`` X 25`) Special Order $ 20.65

242830 Wire (14 Ga. 200 C Brown) Appelez-nous -
8273888A Anti-tip Kit (wall Mount)   (Replaces: 814234) Special Order $ 32.62

3169503 Harness, Wire (oven) Appelez-nous -
3169508 Harness, Wire (lock Switch) Appelez-nous -
3169551 Harness, Wire (cooktop) Appelez-nous -
311311 Clip, Wire Appelez-nous -
313154 Harness, Wire (oven Light) Appelez-nous -
242820 Wire (14 Ga. 150 C Black) Appelez-nous -
350956 Paint, Spray 13 Oz. (almond) Special Order $ 54.01

72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 18.81

242823 Wire (14 Ga. 150 C Green) Appelez-nous -
LIT3187321 Instructions, Installation Appelez-nous -
LIT3150400 Installation Instr (templet) Appelez-nous -
LIT3189073 Use And Care Guide Appelez-nous -
LIT3169520 Tech Sheet Appelez-nous -
LIT677973 Manual, Range Appelez-nous -
242824 Wire (14 Ga. 150 C Orange) Appelez-nous -
242829 Wire, Red 12 Ga. 150~c Appelez-nous -
242825 Wire (14 Ga. 150 C Red) Appelez-nous -
242831 Wire (14 Ga. 200 C Red) Special Order $ 342.23


    View Diagram in Separate Window     Print Icon   Print Part List

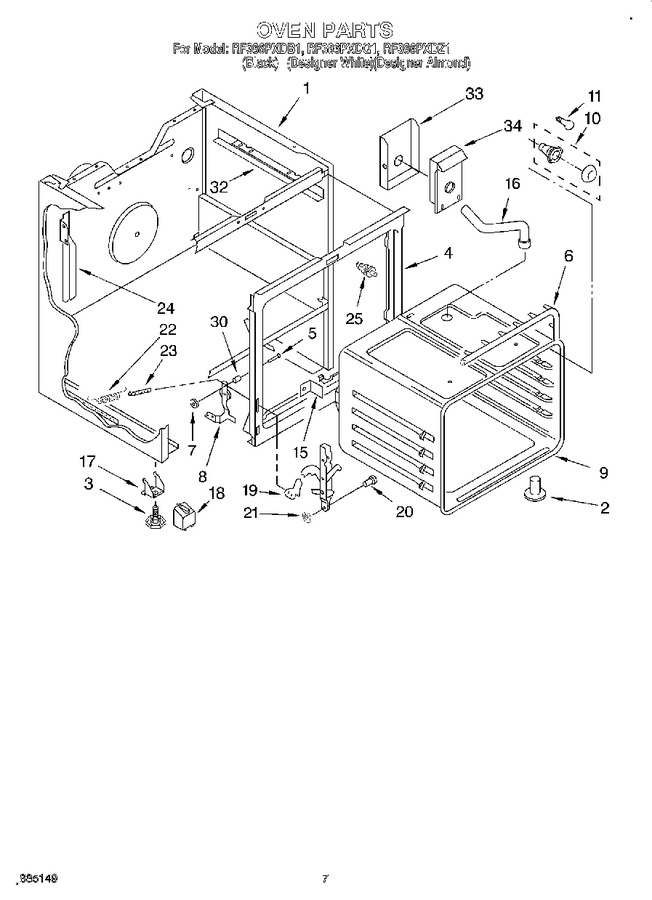

Diagram for RF386PXDQ1
