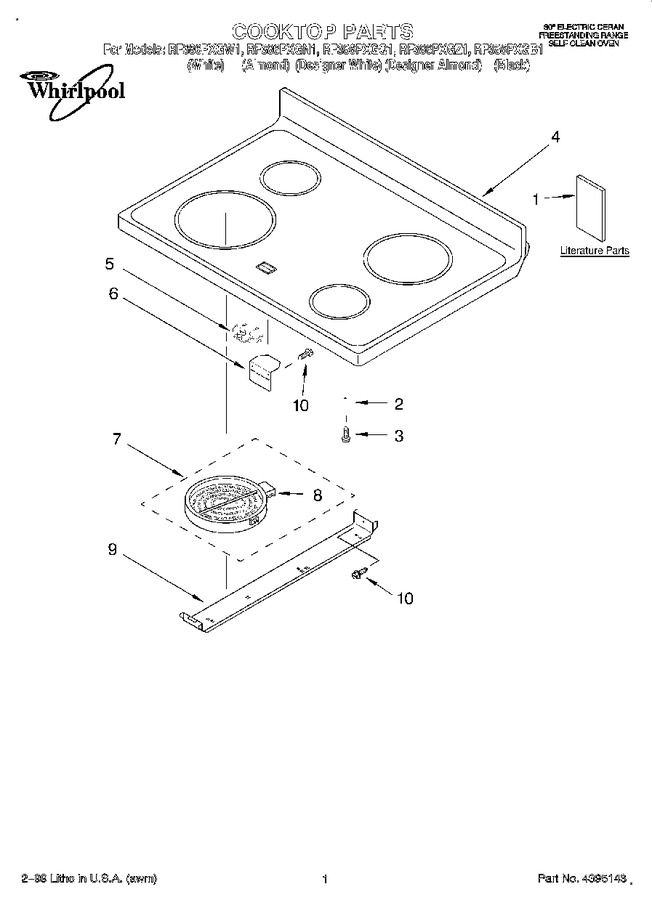

01 - Cooktop, Literature
02 - Control Panel
03 - Chassis
04 - Door
05 - Drawer And Broiler, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8053714 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT3195945 | Literature Parts (installation Instr (template)) |
|
- | |||||
| 1 | LIT8053401 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT8053302 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 4 | 8053542 | Cooktop (almond/black Glass) |
|
- | |||||
| 4 | 8053544 | Cooktop (almond/alm Glass) |
|
- | |||||
| 4 | 8053545 | Cooktop (black/black Glass) |
|
- | |||||
| 4 | 8053541 | Cooktop (white/black Glass) |
|
- | |||||
| 4 | 8053543 | Cooktop (white/white Glass) |
|
- | |||||
| 5 | 8053722 | Light, Indicator (hot Surface) |
|
- | |||||
| 6 | 3195810 | Bracket, Ind Light |
|
- | |||||
| 7 | W10823698 | Element, Surface (includes No. 8) (1800 W - Rr) (Replaces: 8053606) |
|
Immediately | $ 195.12 | ||||
| 7 | W10823711 | Element, Surface (includes No. 8) (1200 W - Rf) (Replaces: 8053621) |
|
Immediately | $ 204.39 | ||||
| 7 | 8053605 | Element, Surface (includes No. 8) (2500 W - Lf) |
|
- | |||||
| 8 | 8053620 | Limiter, Temp. All Surface Elmnts |
|
- | |||||
| 9 | 3196455 | Bracket, Element |
|
- | |||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 |
