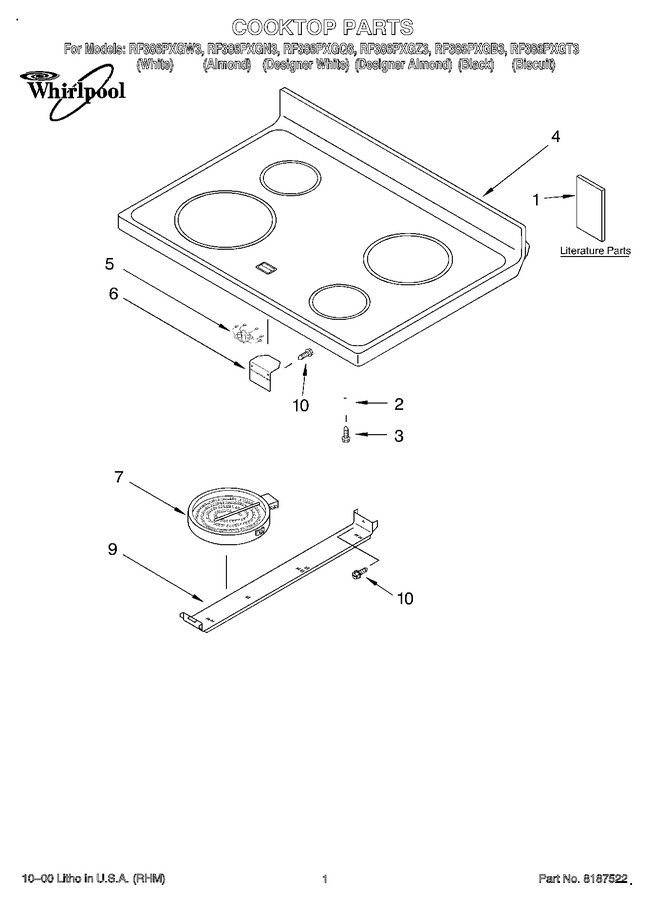

01 - Cooktop, Literature
02 - Control Panel
03 - Chassis
04 - Door
05 - Drawer & Broiler, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8053714 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT3195945 | Literature Parts (installation Instr (template)) |
|
- | |||||
| 1 | LIT8053401 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT8053302 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 4 | 8053542 | Cooktop (almond/black Glass) |
|
- | |||||
| 4 | 8053544 | Cooktop (almond/alm Glass) |
|
- | |||||
| 4 | 8053545 | Cooktop (black/black Glass) |
|
- | |||||
| 4 | 8272513 | Cooktop (biscuit) |
|
- | |||||
| 4 | 8053541 | Cooktop (white/black Glass) |
|
- | |||||
| 4 | 8053543 | Cooktop (white/white Glass) |
|
- | |||||
| 5 | 8273334 | Light, Indicator (hot Surface) |
|
- | |||||
| 6 | 3195810 | Bracket, Ind Light |
|
- | |||||
| 7 | W11047722 | Element, Surface (2500 W - Lf) (Replaces: 8273992) |
|
Immediately | $ 132.46 | ||||
| 7 | WP8273993 | Element, Surface (1800 W - Rr) (Replaces: 8273993) |
|
Immediately | $ 244.51 | ||||
| 7 | W11171119 | Element, Surface (1200 W - Rf) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 9 | 3196455 | Bracket, Element |
|
- | |||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 |
