SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318276 Burner Assembly

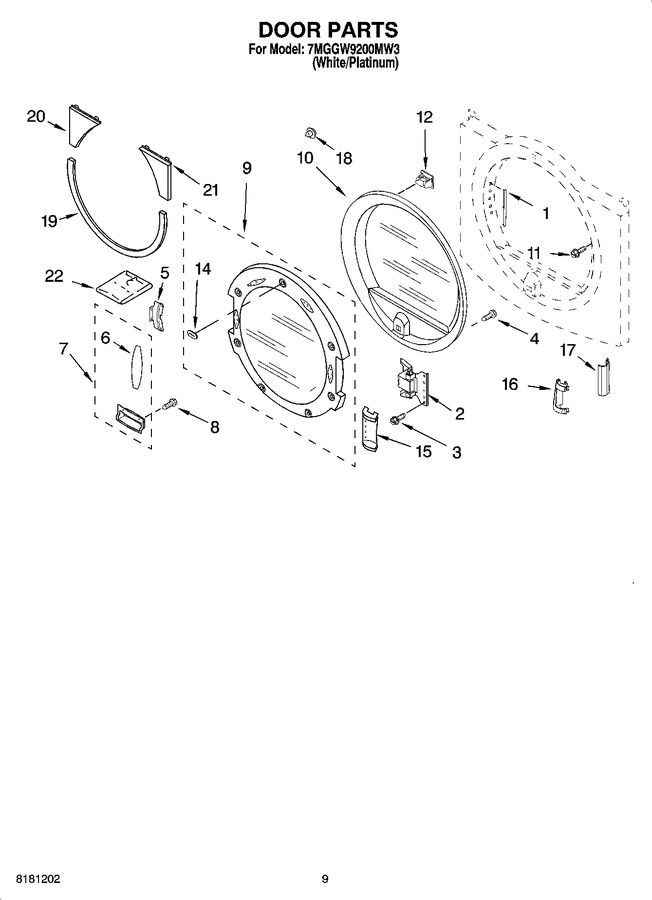

05 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8066209		Plug, Strip		Appelez-nous	-
2	8559709		Door Hinge Assembly		Appelez-nous	-
3	8534015		Screw, 10-32 X 3/8		Appelez-nous	-
4	W10850046		Screw, 8-18 X 5/8   (Replaces: 9742177)			Immediately	$ 7.19
5	8529539		Bracket, Handle		Appelez-nous	-
6	8529930		Pad, Door Handle		Appelez-nous	-
7	8559738		Handle, Door Assembly (rh)				$ 43.65
7	8559739		Handle, Door Assembly (lh)				$ 56.86
8	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
9	8572960		Door Assembly (outer)				$ 230.07
10	8557501		Door Assembly (inner) (includes Illus. 12)				$ 160.79
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 7.67
12	WP3389441		Door Catch Assembly   (Replaces: 3389441)				$ 6.20
14	8529540		Badge, Assembly		Appelez-nous	-
15	8528289		Filler Handle (lh)				$ 56.51
15	8528287		Filler Handle (rh)				$ 56.82
16	8559713		Cover-hinge, Stationary (rh)				$ 20.92
16	8559712		Cover-hinge Stationary (lh)				$ 20.18
17	8559722		Cover-hinge, Rotating				$ 20.93
18	8547091		Clip, Trim Panel		Appelez-nous	-
19	8558683		Trim & Clip Assembly (lower)		Appelez-nous	-
20	8558687		Trim & Clip Assembly (lh)		Appelez-nous	-
21	8558689		Trim & Clip Assembly (rh)		Appelez-nous	-
22	8530070		Kit, Door Reversing				$ 33.00
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	8529894		Kit, Hold Down		Appelez-nous	-
	8541503		Kit, Stack Assembly			Immediately	$ 43.18
	4392067		Kit, Dryer Repair   (Replaces: 80047)			Immediately	$ 62.25

    View Diagram in Separate Window       Print Part List
