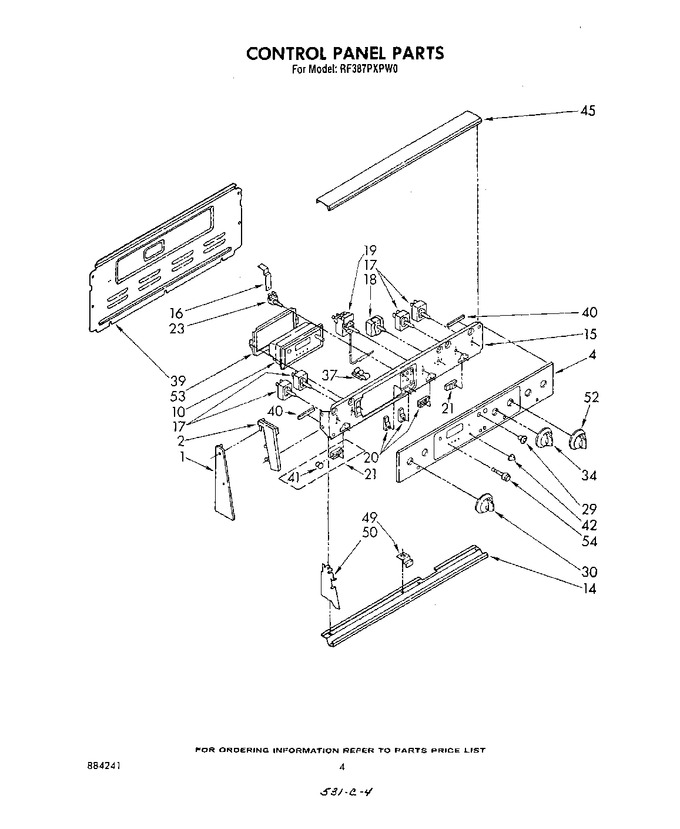

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313189		End Trim R.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
1	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 8.25
1	313188		End Trim L.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	313233		End Cap L.h.		Appelez-nous	-
2	313232		End Cap R.h.		Appelez-nous	-
2	W11693756		Screw, 8-18 X 5/8 (4)   (Replaces: 688983)			Immediately	$ 14.76
4	314175		Control Panel, Glass		Appelez-nous	-
10	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
10	314030		Timer, Digital		Appelez-nous	-
14	313424		Trim, Bottom		Appelez-nous	-
15	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
15	3147063		Bracket, Control		Appelez-nous	-
15	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
16	313312		Brace, Control Bracket		Appelez-nous	-
16	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
17	W10900107		Switch, Infinite (use W/8`` Surface Unit (2))   (Replaces: 311836)			Immediately	$ 57.63
17	W10900107		Switch, Infinite (use W/6`` Surface Unit (2))   (Replaces: 311837)			Immediately	$ 57.63
17	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.89
18	310009		Switch, Selector (5 Position)		Appelez-nous	-
18	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.89
19	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
19	313859		Thermostat, Oven Pyro		Appelez-nous	-
20	314126		Light, Indicator (3) (oven, Lock, Clean) (includes Illus. 41)		Appelez-nous	-
21	313106		Light, Indicator (surface Unit) (2) (includes Illus. 41)		Appelez-nous	-
23	312581		Switch, Oven Light		Appelez-nous	-
23	312796		Washer		Appelez-nous	-
29	313030		Bezel, Switch (2)		Appelez-nous	-
30	330171		Knob, Control (4)		Appelez-nous	-
34	310410		Screw (2)		Appelez-nous	-
34	330169		Knob, Control		Appelez-nous	-
37	313570		Tube Clip		Appelez-nous	-
39	WP681414		Screw, 10-16 X 1/2 (10)   (Replaces: 343641)			Immediately	$ 8.47
39	313195		Rear Cover Control Panel		Appelez-nous	-
40	308299		Seal, Foam (2)		Appelez-nous	-
41	311688		Lens, Amber (5)		Appelez-nous	-
42	313523		Knob, Timer (3)				$ 13.66
45	313234		Trim, Socket (top)		Appelez-nous	-
49	313482		Support, Wedge		Appelez-nous	-
49	246131		Screw, 6ab X 3/8		Appelez-nous	-
50	313609		Shield, Glass (2)		Appelez-nous	-
50	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
52	330172		Knob, Control		Appelez-nous	-
52	WP688805		Spring   (Replaces: 688805)			Immediately	$ 8.20
53	313475		Timer Bracket		Appelez-nous	-
54	314132		Set Button (4)		Appelez-nous	-
