Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3147129 Harness, Wire (suface Units) Appelez-nous -
2 3148722 Harness, Wire (oven) Appelez-nous -
3 313154 Harness, Wire (oven Light) Appelez-nous -
3 3148700 Harness, Wire (lock Switch) Appelez-nous -
4 3147138 Terminal Appelez-nous -
5 16515 Clip, Harness   (Replaces: 313438) Special Order $ 19.55

6 488946 Relief, Strain   (Replaces: 308606) Special Order $ 20.45


    View Diagram in Separate Window     Print Icon   Print Part List

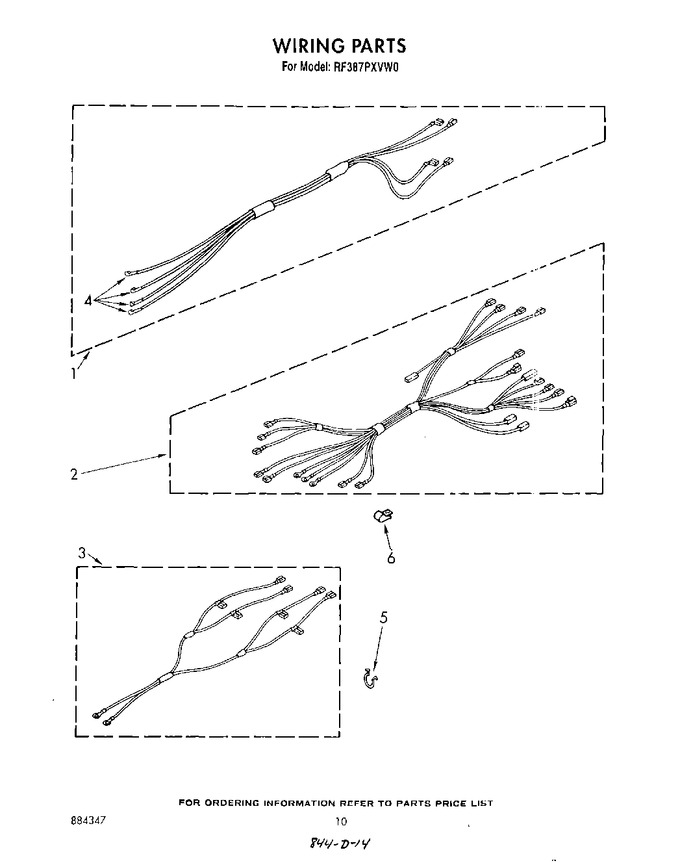

Diagram for RF387PXVN0
