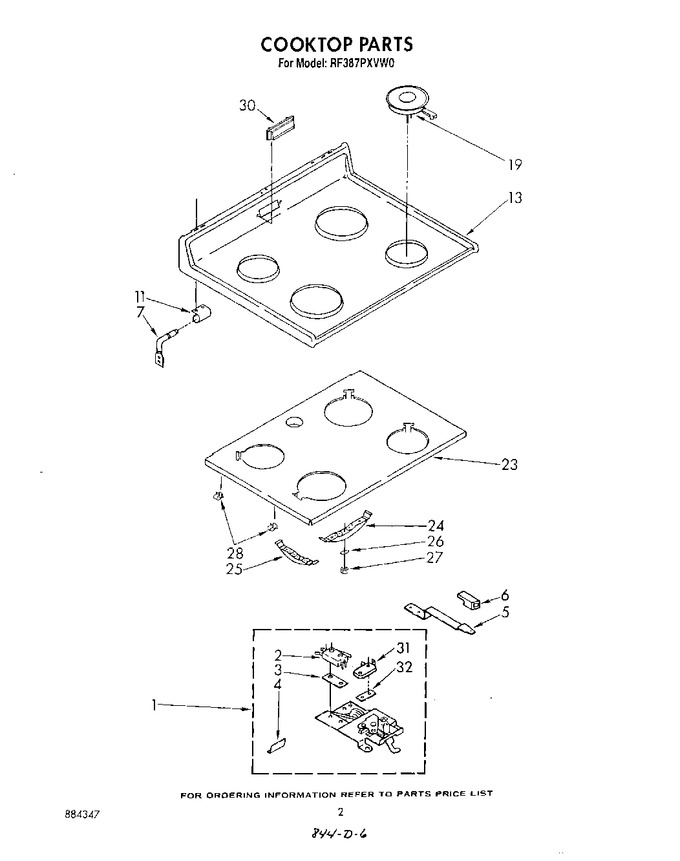

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3171149 | Latch Assembly (pyro) |
|
- | |||||
| 1 | WP681414 | Screw, 10-16 X 1/2 (2) (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 2 | 3148725 | Safety Switch |
|
- | |||||
| 2 | 98106 | Screw (2) |
|
- | |||||
| 3 | 309245 | Insulator, Switch |
|
- | |||||
| 4 | 309258 | Screw, 6 X 3/8b (2) |
|
- | |||||
| 4 | 313035 | Shield, Latch Terminal |
|
- | |||||
| 5 | 3147065 | Handle, Latch |
|
- | |||||
| 5 | 311056 | Screw (2) |
|
- | |||||
| 5 | 308422 | Screw, 10-24 X 1/2 (2) |
|
- | |||||
| 5 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 313349) |
|
$ 7.57 | |||||
| 6 | 155023 | Screw 8-32 X 1/4 |
|
Immediately | $ 7.91 | ||||
| 6 | 3148684 | Knob, Latch |
|
- | |||||
| 7 | WP681414 | Screw, 10-16 X 1/2 (2) (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 7 | 307966 | Pin, Top (2) |
|
- | |||||
| 11 | 307965 | Bracket, Top (2) |
|
- | |||||
| 11 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 13 | 3171373 | Cooktop (almond) |
|
- | |||||
| 13 | WP681414 | Cooktop (screw 10-32 X 1/2) (Replaces: 690989) |
|
Immediately | $ 7.85 | ||||
| 13 | 3171372 | Cooktop (white) |
|
- | |||||
| 13 | 3171376 | Cooktop (gold) |
|
- | |||||
| 13 | 3171374 | Cooktop (toast) |
|
- | |||||
| 13 | 3171375 | Cooktop (platinum) |
|
- | |||||
| 19 | WP3147131 | Unit, Surface 6`` L.f. & R.r. (Replaces: 3147131) |
|
$ 271.96 | |||||
| 19 | WP3147132 | Unit, Surface (8`` R.f. & L.r.) (Replaces: 3147132) |
|
$ 302.99 | |||||
| 23 | 3149261 | Support, Cooktop |
|
- | |||||
| 24 | 3147703 | Bracket, Mounting 6`` Surface Unit (2) |
|
- | |||||
| 25 | 3147704 | Bracket, Mounting 8`` Surface Unit (2) |
|
- | |||||
| 26 | 3147191 | Spring, Leaf (4) |
|
- | |||||
| 27 | 3147189 | Nut, Metric (4) |
|
- | |||||
| 28 | 311311 | Clip-wire (5) |
|
- | |||||
| 30 | 3149190 | Cover, Vent (clip, Mtg. (2)) |
|
- | |||||
| 30 | 3149015 | Cover, Vent (gold) |
|
- | |||||
| 30 | 3149014 | Cover, Vent (toast) |
|
- | |||||
| 30 | 3149013 | Cover, Vent (platinum) |
|
- | |||||
| 30 | 3149011 | Cover, Vent (white) |
|
- | |||||
| 30 | 3149012 | Cover, Vent (almond) |
|
- | |||||
| 31 | 3148669 | Switch, Lock |
|
- | |||||
| 32 | 3147864 | Insulator, Switch |
|
- |
