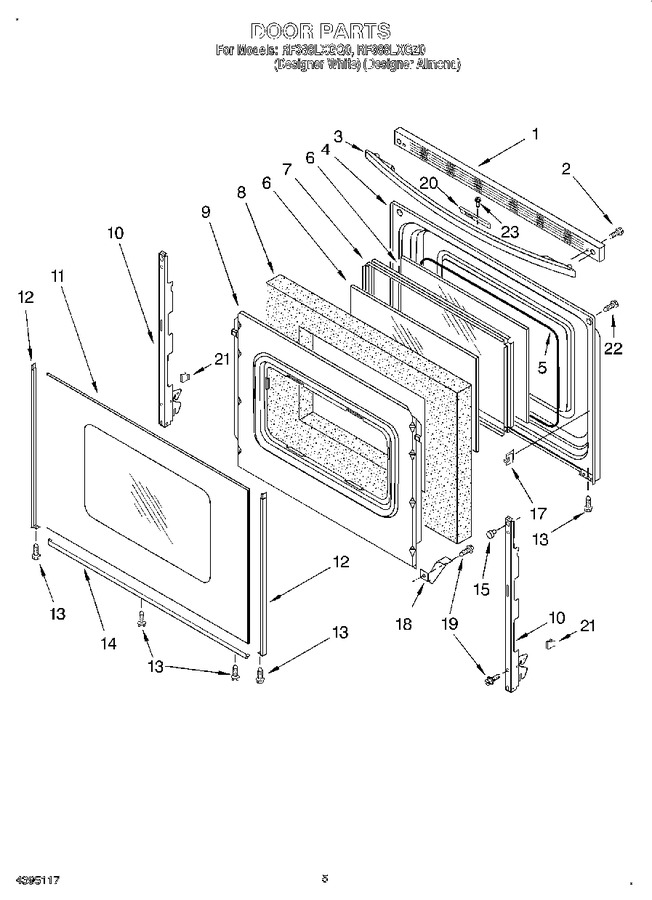

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3196821		Trim, Door Top (white)		Appelez-nous	-
1	3196820		Trim, Door Top (almond)		Appelez-nous	-
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 8.69
3	WPW10202216		Handle, Door (white)   (Replaces: 3195218)				$ 353.02
3	3195921		Handle, Door (almond)		Appelez-nous	-
4	3186292		Liner, Door		Appelez-nous	-
5	3195984		Seal, Window		Appelez-nous	-
6	WP8053948		Glass, Inner (2)   (Replaces: 3186271)				$ 178.28
7	WPW10316950		Frame, Glass   (Replaces: 3186289)			Immediately	$ 84.86
8	WPW10278991		Insulation, Door   (Replaces: 3186250)			Immediately	$ 96.54
9	W11539580		Retainer, Insul.   (Replaces: 3186297)				$ 221.30
10	WP8053807		Hinge, Door (2)   (Replaces: 3186068)				$ 90.81
11	WP8053834		Glass, Outer Door (white)   (Replaces: 8053480)				$ 277.96
11	8053482		Glass, Outer Door (almond)		Appelez-nous	-
12	8184859		Trim, Side (white Right Hand)   (Replaces: 3195971)				$ 170.91
12	8184859		Trim, Side (white Left Hand)   (Replaces: 3195974)				$ 170.91
12	8184860		Trim, Side (almond Right Hand)   (Replaces: 3195972)				$ 151.56
12	8184860		Trim, Side (almond Left Hand)   (Replaces: 3195975)				$ 151.56
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.19
14	8184860		Trim, Lower (almond)   (Replaces: 3195423)				$ 151.56
14	8184859		Trim, Lower (white)   (Replaces: 3195422)				$ 170.91
15	238614		Bumper, Door (2)   (Replaces: 3195809)				$ 84.79
17	3196025		Clip, Glass (4)				$ 20.10
18	3196794		Bracket, Window (2)				$ 24.34
19	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.19
20	3195914		Bracket, Latch		Appelez-nous	-
21	3196925		Clip, Door Stop				$ 9.06
22	WP179051		Screw   (Replaces: 3196161)			Immediately	$ 7.96
23	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 7.75
