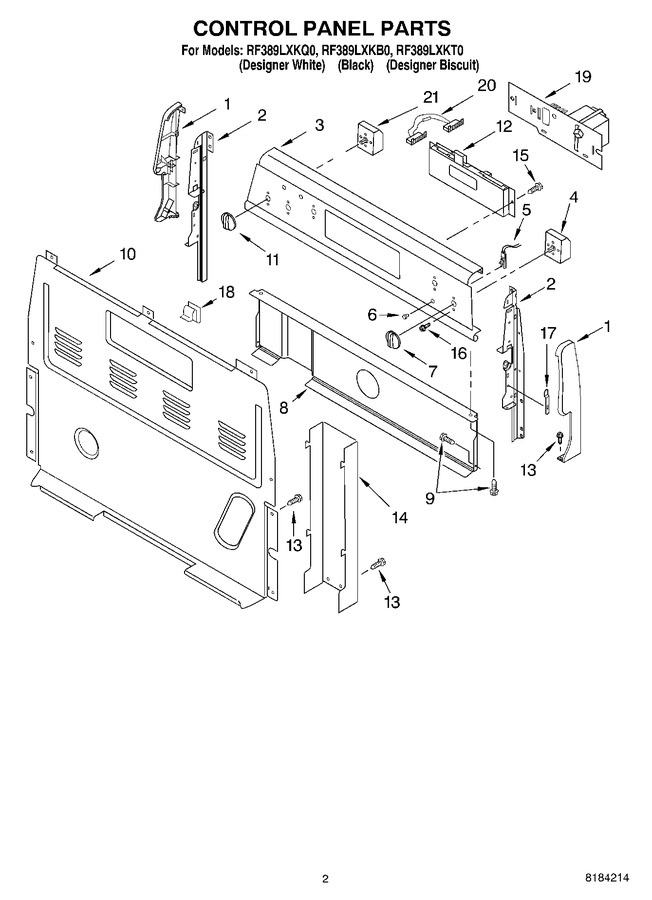

01 - Cooktop, Literature
02 - Control Panel
03 - Chassis
04 - Drawer And Broiler
05 - Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3186190 | Endcap (left Hand White) |
|
- | |||||
| 1 | 3186188 | Endcap, Left Hand (black) |
|
- | |||||
| 1 | 3186189 | Endcap, Right Hand (black) |
|
- | |||||
| 1 | 8272508 | Endcap (right Hand-biscuit) |
|
- | |||||
| 1 | 3186191 | Endcap (right Hand White) |
|
- | |||||
| 1 | 8272507 | Endcap (left Hand-biscuit) |
|
- | |||||
| 2 | 3186198 | Support, Endcap (left Hand) |
|
- | |||||
| 2 | 3186199 | Support, Endcap (right Hand) |
|
- | |||||
| 3 | 8522821 | Panel, Backguard (black) |
|
- | |||||
| 3 | 8522820 | Panel, Backguard (white) |
|
- | |||||
| 3 | 8522822 | Panel, Backguard (biscuit) |
|
- | |||||
| 4 | WP3148952 | Switch, Infinite (lr & Rf) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 4 | WP3149400 | Switch, Infinite (lf - Rr) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 5 | 8273338 | Light, Indicator (accusimmer) |
|
- | |||||
| 5 | 8273301 | Light, Indicator (surface Unit) |
|
- | |||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WP8522566 | Knob, Infinite (4) (black) (Replaces: 8522566) |
|
$ 22.29 | |||||
| 7 | WP8522565 | Knob, Infinite (4) (white) (Replaces: 8522565) |
|
Immediately | $ 20.90 | ||||
| 7 | 8522567 | Knob, Infinite (4) (biscuit) |
|
$ 15.97 | |||||
| 8 | 8053912 | Shield, Heat |
|
$ 34.55 | |||||
| 9 | W10276642 | Screw (Replaces: 4449746) |
|
$ 6.41 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | 8522569 | Knob, Accusimmer |
|
$ 6.69 | |||||
| 12 | 8522527 | Control, Range (white) |
|
- | |||||
| 12 | 8522528 | Control, Range (biscuit) |
|
- | |||||
| 12 | 8522526 | Control, Range (black) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WPW10326122 | Box, Cover (Replaces: 3195133) |
|
$ 139.60 | |||||
| 15 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 17 | 3196200 | Clip, Spring (2) |
|
$ 10.45 | |||||
| 18 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.66 | |||||
| 19 | 9755076 | Power Supply, Pca |
|
- | |||||
| 20 | 8273906 | Jumper W/ Fuse |
|
- | |||||
| 21 | 8053511 | Switch, Accusimmer |
|
- |
