Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP681414 Main Chassis (screw 10-32 X 1/2)   (Replaces: 690989) In-Stock Immediately $ 7.85

1 330090 Main Chassis (almond) Appelez-nous -
1 330086 Main Chassis (white) Appelez-nous -
2 238614 Bumper, Cooktop (2) Special Order $ 80.76

3 WPW10058460 Leg Leveling (4)   (Replaces: 312701) In-Stock Immediately $ 7.85

4 3170856 Frame, Front Appelez-nous -
4 WP681414 Screw, 10-16 X 1/2 (13)   (Replaces: 343641) In-Stock Immediately $ 7.85

5 307985 Pin, Hinge (2) Special Order $ 29.54

6 3148284 Seal, Door Appelez-nous -
7 308306 Pushnut (2) Appelez-nous -
8 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 7.85

8 327891 Hinge (l.h.) Appelez-nous -
8 327890 Hinge (r.h.) Appelez-nous -
9 329002 Oven (30`` Pyro) Appelez-nous -
9 311056 Screw (3) Appelez-nous -
10 310208 Socket, Lamp (alt.) In-Stock Immediately $ 36.34

10 660556 Socket, Lamp Appelez-nous -
10 307856 Socket, Lamp (alt.) Appelez-nous -
11 8009 Bulb, Oven Light   (Replaces: 311255) In-Stock Immediately $ 18.67

12 308039 Cover, Light Appelez-nous -
13 308038 Retainer, Light Appelez-nous -
14 257314 Plug Button Appelez-nous -
15 311220 Bracket, Oven (mounting) Appelez-nous -
15 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 7.85

16 307748 Screw, 10a X 1/2 (2) Appelez-nous -
16 307961 Vent, Oven Appelez-nous -
19 329710 Channel, Arm (2) Appelez-nous -
20 WP307986 Hinge Pin (2)   (Replaces: 307986) Special Order $ 13.09

21 307594 Ring, Retainer (2) Appelez-nous -
22 WP308126 Spring, Oven Door (2)   (Replaces: 308126) Special Order $ 42.39

23 WP308125 Anchor, Spring (2)   (Replaces: 308125) Special Order $ 12.16

24 313196 Support, L.h. Post Appelez-nous -
24 313197 Support, R.h. Post Appelez-nous -
24 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 7.85

25 310345 Switch, Door (2) Special Order $ 94.86

26 309111 Snubber, Door (2) Appelez-nous -
27 3148604 Screw Appelez-nous -
27 8273888A Bracket, Anchor   (Replaces: 3148603) Special Order $ 31.07

28 261582 Grease Appelez-nous -
28 350956 Paint, Spray 13 Oz. (almond) Special Order $ 51.44

28 72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

28 WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 17.91

28 206925 Leveler (thinner) (2oz.) Appelez-nous -
28 799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

28 978883 Almond (uncut) Appelez-nous -
28 261889 New Avocado (uncut) Appelez-nous -
28 261887 Coffee (uncut) Appelez-nous -
28 261891 Harvest Gold (uncut) Appelez-nous -
28 285367 Enamal, Toast (1 Qt. Uncut) Appelez-nous -
28 285368 Platinum (uncut) Appelez-nous -
28 799832 Kit. Porcelain Repair (white) Appelez-nous -
28 8212471 Touch-up Self-clean(1/2 Pt)   (Replaces: 242756) In-Stock Immediately $ 83.07

28 242820 Wire (14 Ga. 150 C Black) Appelez-nous -
28 3148605 Anchor, Plastic Appelez-nous -
28 242828 Wire (12 Ga. 150 C Black) Appelez-nous -
28 242821 Wire (14 Ga. 150 C Blue) Appelez-nous -
28 242822 Wire (14 Ga. 150 C Brown) Appelez-nous -
28 242830 Wire (14 Ga. 200 C Brown) Appelez-nous -
28 242823 Wire (14 Ga. 150 C Green) Appelez-nous -
28 242824 Wire (14 Ga. 150 C Orange) Appelez-nous -
28 242829 Wire, Red 12 Ga. 150~c Appelez-nous -
28 242825 Wire (14 Ga. 150 C Red) Appelez-nous -
28 242831 Wire (14 Ga. 200 C Red) Special Order $ 342.23

28 242826 Wire, White 14 Ga. 150~c Appelez-nous -
28 242827 Wire (14 Ga. 150 C Yellow) Appelez-nous -
28 242832 Wire, Yellow 14 Ga. 200~c Appelez-nous -
28 DD81-03471A Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109) Special Order $ 60.28

28 DD81-03944A Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108) Special Order $ 109.25

28 DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 137.86

28 72112 Paint, (touch-up 1/2 Oz.) (toast) Appelez-nous -
28 DD81-03496A Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113) Special Order $ 117.11

28 350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 38.21

28 261888 New Avocado Appelez-nous -
28 261886 Coffee Appelez-nous -
28 261890 Harvest Gold Appelez-nous -
28 285365 Toast Appelez-nous -
28 285366 Paint, Spray (13 Oz.) (platinum) Appelez-nous -
28 285006 Paint, Spray 13 Oz. (black) Special Order $ 57.04

28 350942 Primer (white)   (Replaces: 206922) Special Order $ 89.66

308043 Screw, 10-12 X 7/8 (2) Appelez-nous -
511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 49.29


    View Diagram in Separate Window     Print Icon   Print Part List

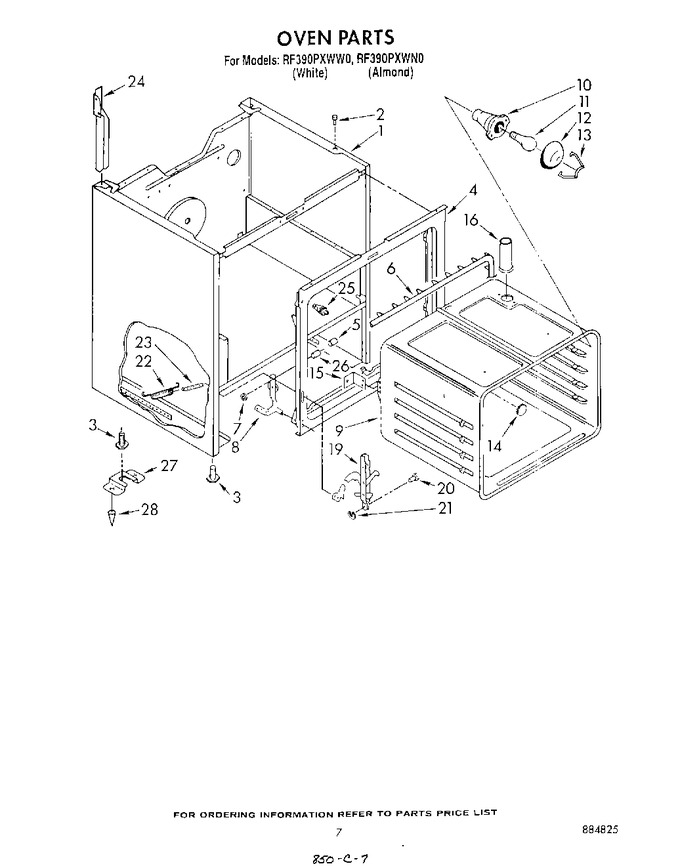

Diagram for RF390PXWW0
