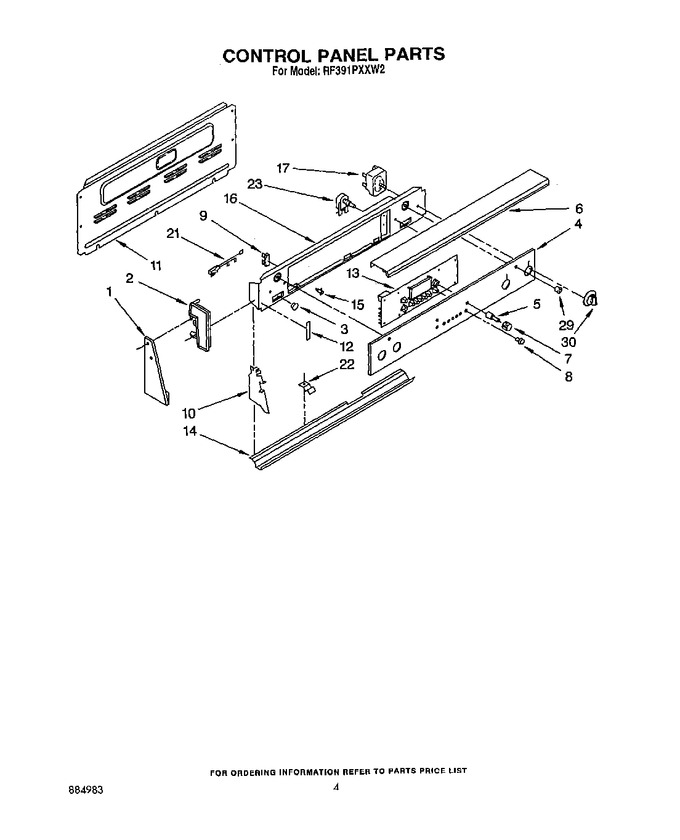

03 - Control Panel


04 - Oven


05 - Door And Drawer


06 - Harness, Lit/optional


07 - Unit, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313190		End Trim L.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
1	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
1	313191		End Trim R.h.		Appelez-nous	-
2	313232		End Cap R.h.		Appelez-nous	-
2	313233		End Cap L.h.		Appelez-nous	-
3	311688		Lens, Light (2)		Appelez-nous	-
4	3150171		Glass, Panel		Appelez-nous	-
5	3149319		Shaft, Bit Generator		Appelez-nous	-
6	3150176		Trim, Top		Appelez-nous	-
7	3149176		Knob, Bit Generator		Appelez-nous	-
8	3149177		Button, Set (8)		Appelez-nous	-
9	WP3196548		Fuse, Thermal   (Replaces: 313214)			Immediately	$ 50.10
9	309258		Screw		Appelez-nous	-
10	WP965173		Screw (2)   (Replaces: 246132)			Immediately	$ 11.87
10	313609		Shield, Glass (2)		Appelez-nous	-
11	313195		Cover, Rear		Appelez-nous	-
11	WP681414		Screw (12)   (Replaces: 343641)			Immediately	$ 8.47
12	3147603		Seal, Foam		Appelez-nous	-
13	3150200		Timer, Clock		Appelez-nous	-
14	313424		Trim, Bottom		Appelez-nous	-
14	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
15	313087		Support (9)		Appelez-nous	-
16	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
16	3148430		Bracket, Control Mounting		Appelez-nous	-
17	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.89
17	W10900107		Switch, Infinite (use W/6`` Surface Unit (2))   (Replaces: 3148946)			Immediately	$ 57.63
17	5500-287		Switch, Infinite (use W/8`` Surface Unit (2))   (Replaces: 3148945)			Immediately	$ 52.39
21	313106		Light, Indicator (2)		Appelez-nous	-
22	313482		Support, Wedge		Appelez-nous	-
22	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 11.87
23	312796		Lockwasher		Appelez-nous	-
23	3148465		Switch, Light		Appelez-nous	-
29	3149170		Bezel Switch (1)		Appelez-nous	-
30	WP3149983		Knob, Control (4)   (Replaces: 3181465)				$ 24.39
