01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts


07 - Pedestal Parts (not Included), Optional Parts (not Included)

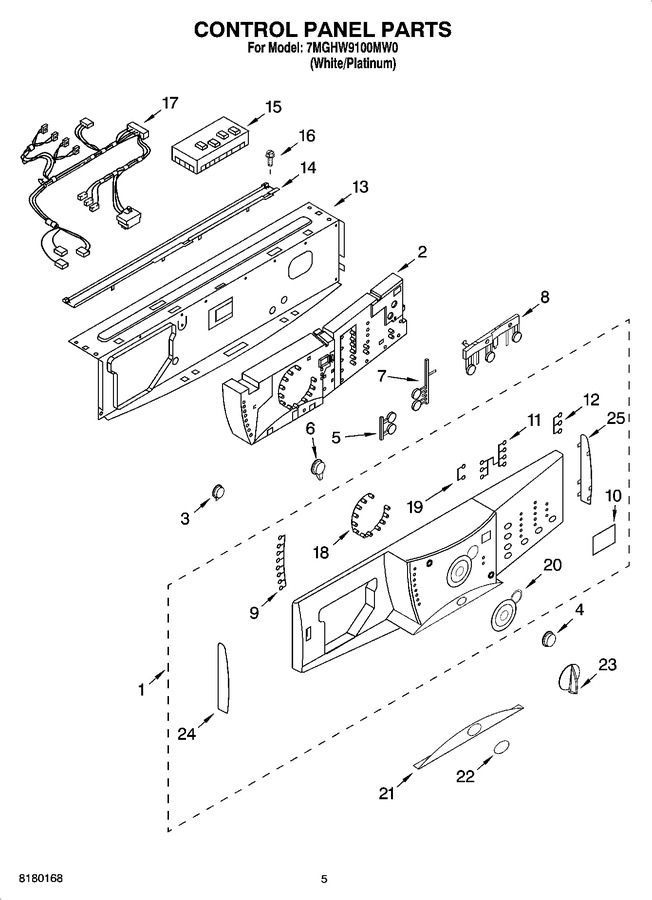

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8182138		Panel, Control		Appelez-nous	-
2	8181905		User Interface				$ 309.45
3	8181860		Button, Power				$ 31.30
4	8182188		Button, Start		Appelez-nous	-
5	8181863		Button Set, Soil Level				$ 60.60
6	8182189		Button, Pause/cancel		Appelez-nous	-
7	8181889		Button Set, Options				$ 68.05
8	8181865		Button Set, Spin/temperature				$ 64.96
9	8181868		Light, Indicator (status)		Appelez-nous	-
10	8181856		Window, Display		Appelez-nous	-
11	8181908		Light, Indicator (7 Lights)		Appelez-nous	-
12	8181871		Light, Indicator (3 Lights)		Appelez-nous	-
13	8181639		Brace, Front Top		Appelez-nous	-
14	8181640		Channel, Water		Appelez-nous	-
15	8181923		Microcomputer, Machine Control		Appelez-nous	-
16	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 8.28
17	8181783		Harness, Wire				$ 119.42
18	8181906		Light, Indicator (program)		Appelez-nous	-
19	8181907		Light, Indicator (2 Lights)		Appelez-nous	-
20	8182139		Bezel, Knob		Appelez-nous	-
21	8182190		Overlay, Door		Appelez-nous	-
22	8181858		Medallion		Appelez-nous	-
23	WP8181859		Knob, Control   (Replaces: 8181859)			Immediately	$ 41.63
24	8181852		Endcap, Left		Appelez-nous	-
25	8181853		Endcap, Right		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
