01 - Cooktop
02 - Control Panel
03 - Chassis
04 - Drawer And Broiler
05 - Door, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

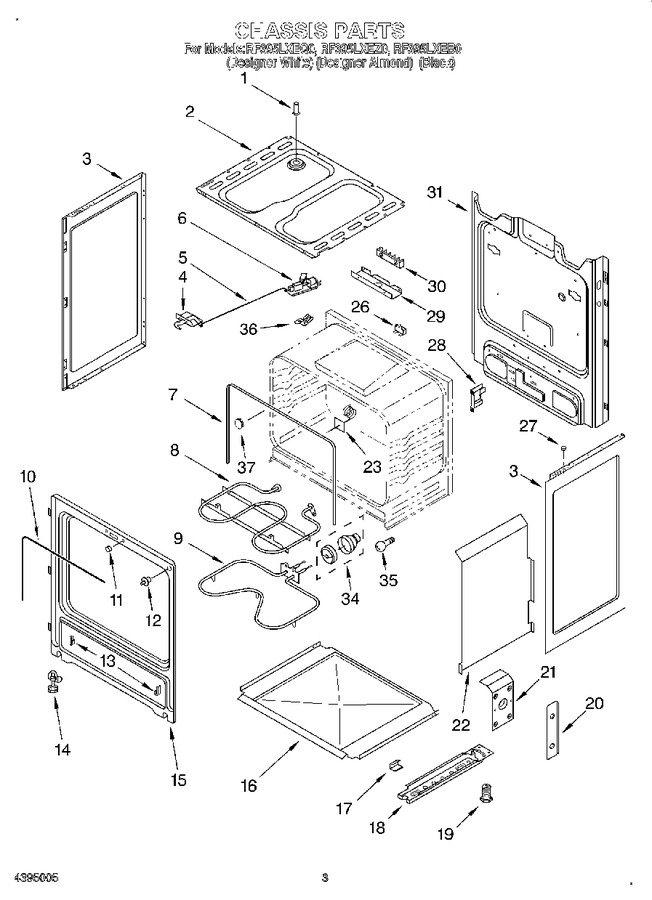

| 1 | WP3196567 | Screw (2) (Replaces: 3196567) |
|
$ 8.06 | |||||
| 1 | W11222268 | Tube, Oven Vent (Replaces: 3169108) |
|
$ 104.30 | |||||
| 2 | W11699791 | Box, Burner (Replaces: 3186144) |
|
$ 262.30 | |||||
| 3 | 3186075 | Panel, Side (2) (black) |
|
- | |||||
| 3 | 3186074 | Panel, Side (2) (almond) |
|
- | |||||
| 3 | 3186073 | Panel, Side (2) (white) |
|
- | |||||
| 4 | WP9761013 | Latch, Door (Replaces: 3196119) |
|
$ 256.36 | |||||
| 4 | WP3400832 | Screw (2) (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 5 | 3196715 | Rod, Latch |
|
- | |||||
| 6 | W11233072 | Screw, (2) (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | 3196125 | Solenoid Assy. |
|
- | |||||
| 7 | 3195737 | Seal, Oven Flange |
|
- | |||||
| 8 | W10856603 | Element, Broil (Replaces: 3195063) |
|
Immediately | $ 154.62 | ||||
| 8 | WP3196174 | Screw (4) (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| 9 | WP3196174 | Screw (2) (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| 9 | WPW10308477 | Element, Bake (Replaces: 3195067) |
|
Immediately | $ 71.86 | ||||
| 10 | W11542153 | Seal, Oven Door (Replaces: 3195023) |
|
Immediately | $ 50.20 | ||||
| 11 | W10877054 | Spacer, Door (Replaces: 3196392) |
|
Immediately | $ 56.06 | ||||
| 12 | WP3196262 | Switch, Door (Replaces: 3196262) |
|
$ 165.47 | |||||
| 13 | WP3196175 | Screw (2) (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 13 | WP3195546 | Glide, Drawer (2) (Replaces: 3195546) |
|
Immediately | $ 8.33 | ||||
| 14 | WP98008545 | Screw (4) (Replaces: 3196179) |
|
$ 18.60 | |||||
| 14 | W11233072 | Screw, (2) (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WP3196037 | Foot, Front (2) (Replaces: 3196037) |
|
$ 87.12 | |||||
| 15 | 3186156 | Frame, Front |
|
- | |||||
| 16 | WP8054068 | Tray, Insulation (Replaces: 3186145) |
|
$ 104.36 | |||||
| 17 | 3196576 | Clip, Panel (6) |
|
- | |||||
| 18 | W11233072 | Screw (6) (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 18 | W11818353 | Rail, Base (2) (Replaces: 3186055) |
|
$ 62.66 | |||||
| 19 | WPW10058460 | Foot, Rear (2) (Replaces: 312701) |
|
Immediately | $ 8.24 | ||||
| 20 | WP7101P246-60 | Screw (4) (Replaces: 3196177) |
|
$ 8.24 | |||||
| 20 | 3196091 | Shield, Outer (2) |
|
- | |||||
| 21 | 3196092 | Shield, Inner (2) |
|
- | |||||
| 21 | WP7101P246-60 | Screw (2) (Replaces: 3196177) |
|
$ 8.24 | |||||
| 22 | 3195717 | Retainer, Side (2) |
|
- | |||||
| 22 | W11233072 | Screw (4) (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 23 | 3148440 | Sensor, Oven |
|
- | |||||
| 23 | W11233072 | Screw, (2) (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 26 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 26 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 27 | 238614 | Bumper, Side (2) (Replaces: 3195809) |
|
$ 84.79 | |||||
| 28 | WP3196175 | Screw (4) (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 28 | W10404688 | Support, Oven (2) (Replaces: 3186116) |
|
$ 17.69 | |||||
| 29 | W11233072 | Screw, (2) (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 29 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 30 | WP112432 | Nut, Hex (Replaces: 112432) |
|
$ 8.63 | |||||
| 30 | WP8203546 | Block, Terminal (Replaces: 4449868) |
|
Immediately | $ 30.13 | ||||
| 30 | WP3196163 | Screw (2) (Replaces: 3196163) |
|
$ 7.30 | |||||
| 31 | W11233072 | Screw, (2) (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 31 | 3195707 | Back, Main |
|
- | |||||
| 34 | W11594027 | Light Socket Assy (Replaces: 3150505) |
|
Immediately | $ 87.01 | ||||
| 35 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 36 | WP112432 | Nut, (3) (Replaces: 112432) |
|
$ 8.63 | |||||
| 36 | 3169573 | Strap, Ground |
|
- | |||||
| 37 | WPW10208653 | Insulation, Wrap (Replaces: 3195037) |
|
Immediately | $ 55.47 | ||||
| 37 | W11311894 | Insulation, Back (Replaces: 3186148) |
|
$ 115.11 | |||||
| 37 | 3196439 | Button, Plug (2) |
|
- |
