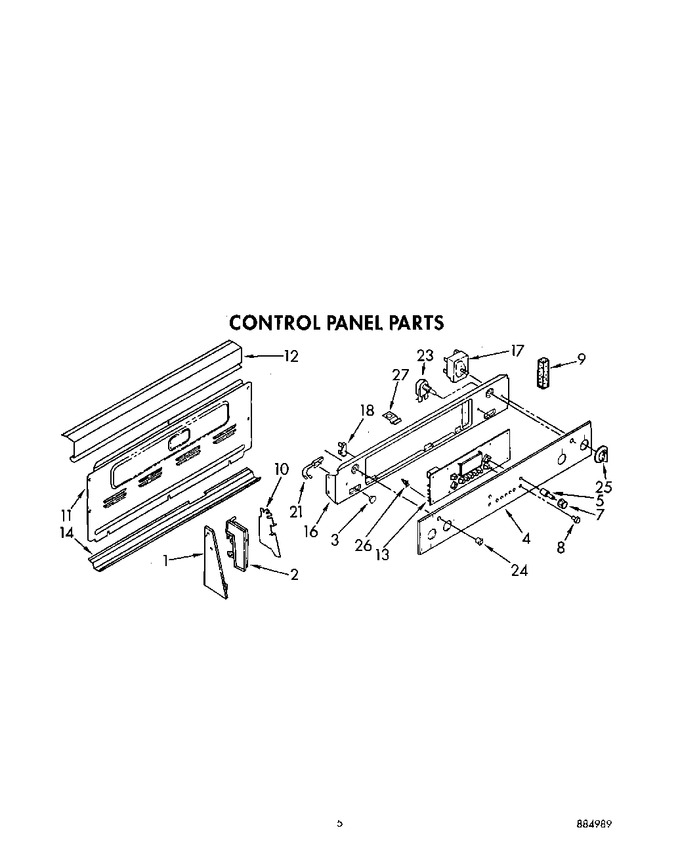

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313190		End Trim L.h.		Appelez-nous	-
1	WP681414		Screw (6)   (Replaces: 343641)			Immediately	$ 7.85
1	313191		End Trim R.h.		Appelez-nous	-
2	313232		End Cap R.h.		Appelez-nous	-
2	313233		End Cap L.h.		Appelez-nous	-
3	311688		Lens, Indicator Light (2)		Appelez-nous	-
4	3150773		Glass, Panel		Appelez-nous	-
5	3149319		Shaft, Bit Generator		Appelez-nous	-
7	313523		Knob, Bit Generator				$ 13.66
8	313958		Button, Set (8)		Appelez-nous	-
9	3147603		Seal, Foam (2)		Appelez-nous	-
10	WP965173		Screw (2)   (Replaces: 246132)			Immediately	$ 10.72
10	313609		Shield, Glass (2)		Appelez-nous	-
11	313195		Cover, Rear		Appelez-nous	-
11	WP681414		Screw (12)   (Replaces: 343641)			Immediately	$ 7.85
12	3149847		Trim, Top		Appelez-nous	-
12	254225		Screw (4)		Appelez-nous	-
13	3148560		Timer, Clock		Appelez-nous	-
14	254225		Screw (2)		Appelez-nous	-
14	313424		Trim, Bottom		Appelez-nous	-
16	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
16	3148430		Bracket, Control		Appelez-nous	-
17	WP486579		Switch, Infinite (screw (2))   (Replaces: 311865)				$ 7.34
17	W10900107		Switch, Infinite (6`` Element (2))   (Replaces: 3148946)			Immediately	$ 57.63
17	5500-287		Switch, Infinite (8`` Element (2))   (Replaces: 3148945)			Immediately	$ 52.39
18	WP3196548		Fuse, Thermal   (Replaces: 313214)			Immediately	$ 47.71
21	313106		Indicator Light Surface Unit (2)		Appelez-nous	-
23	312581		Switch, Light		Appelez-nous	-
23	312796		Lockwasher		Appelez-nous	-
24	313030		Bezel Switch (1)		Appelez-nous	-
25	WP681414		Screw (2)   (Replaces: 343641)			Immediately	$ 7.85
25	WP3149983		Knob, Control (4)   (Replaces: 3149982)				$ 23.23
26	313087		Support (9)		Appelez-nous	-
27	313482		Bottom, Support		Appelez-nous	-
