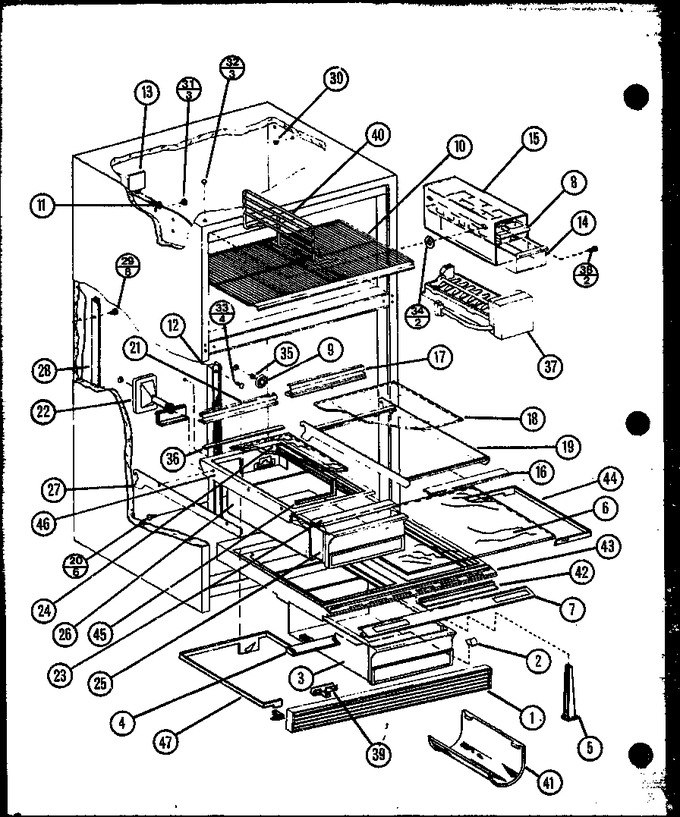

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7520514 | Grille-toe L |
|
- | |||||
| 2 | 10038401 | Knob, Crisper Control |
|
- | |||||
| 3 | D7581033 | Pan Crisper |
|
- | |||||
| 4 | YD7860605 | Slide, Crisper |
|
- | |||||
| 5 | D7602202 | Crisper Support Post |
|
- | |||||
| 6 | 10036016 | Glass Crisper Top Gg |
|
- | |||||
| 7 | D7616652 | Trim, Crisper |
|
- | |||||
| 8 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 47.84 | ||||
| 9 | M0310314 | Plug |
|
- | |||||
| 10 | D7580706 | Shelf, Frz |
|
- | |||||
| 11 | 67006425 | Screw (Replaces: M0230917) |
|
Immediately | $ 7.30 | ||||
| 12 | D7599002 | Ladder, Center |
|
- | |||||
| 13 | D7874402 | Cover-fl Tb/plug |
|
- | |||||
| 14 | D7620024 | Bin, Ice |
|
- | |||||
| 15 | D7620110 | Rack, Ice |
|
- | |||||
| 16 | 10049908 | Trim, Shelf |
|
- | |||||
| 17 | C8913603 | Trim, Shelf Rear |
|
- | |||||
| 18 | 10036018 | Glass Shelf |
|
- | |||||
| 19 | D7871002 | Frame, Cantilever |
|
- | |||||
| 20 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 21 | C8990403 | Trim |
|
- | |||||
| 22 | D7859305 | Grommet M.k. |
|
- | |||||
| 23 | 10049913 | Trim, Shelf |
|
- | |||||
| 24 | 10036017 | Glass M.k. Shelf |
|
- | |||||
| 25 | D7698329 | Pan-meat |
|
- | |||||
| 26 | D7698113 | Sleeve M.k. |
|
- | |||||
| 27 | D7862903 | Blank Side Rail |
|
- | |||||
| 27 | D7862904 | Blank Side Rail |
|
- | |||||
| 28 | D7599105 | Ladder, Side |
|
- | |||||
| 29 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 30 | M0311301 | Plug Button |
|
- | |||||
| 31 | WP67001130 | Plug, Button (wht) (Replaces: M0310701) |
|
Immediately | $ 5.98 | ||||
| 32 | M0310716 | Plug |
|
- | |||||
| 33 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 34 | M0270508 | Washer |
|
- | |||||
| 35 | B8362502 | Insul. Mk Plug |
|
- | |||||
| 36 | 10043101 | Ext. Rear Glass |
|
- | |||||
| 38 | M0219559 | Screw |
|
- | |||||
| 39 | D7859401 | Slide-mk Control |
|
- | |||||
| 40 | D7806002 | Divider, Wire |
|
- | |||||
| 41 | D7547614 | Rack, Bottle |
|
- | |||||
| 42 | D7718402 | Seal Crisper |
|
- | |||||
| 43 | D7856504 | Frame |
|
- | |||||
| 44 | D7859603 | Band Crisper Control |
|
- | |||||
| 45 | A3263905 | Gasket-per Ft |
|
- | |||||
| 46 | D7853302 | Frame M.k. V |
|
- | |||||
| 47 | D7859503 | Band M.k. Control |
|
- | |||||
| NI | M257244 | Screw |
|
- | |||||
| NI | 10144001 | Glass Shelf Assembly |
|
- | |||||
| NI | 10144005 | Glass Shelf Assembly |
|
- | |||||
| NI | R0179156 | Glass Crisper Top Assy |
|
- |
