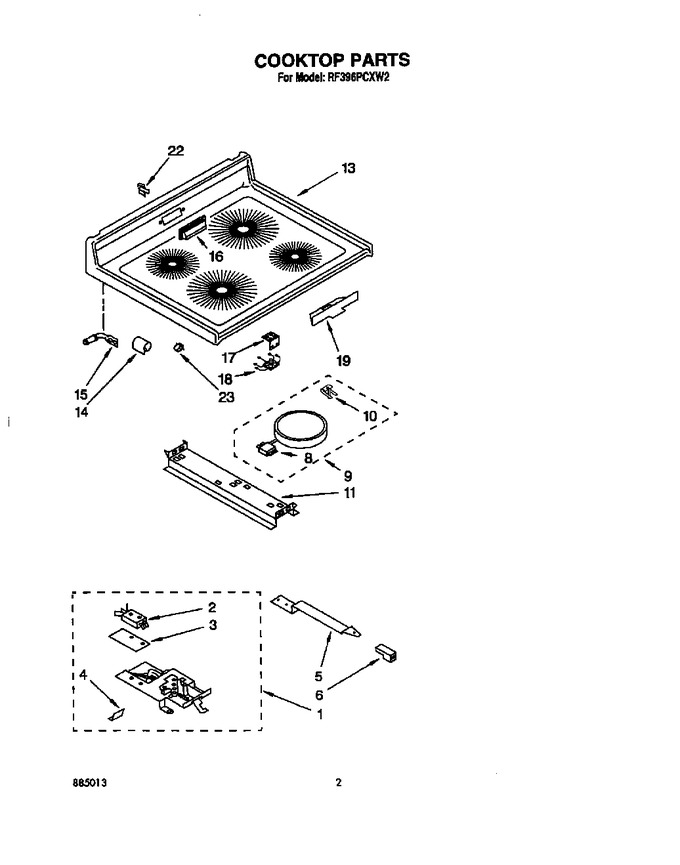

SELECT A DIAGRAM

02 - Cooktop, Lit/optional


03 - Control Panel


04 - Door And Drawer


05 - Unit, Optional


06 - Oven


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw (2)   (Replaces: 343641)			Immediately	$ 8.47
1	3181596		Latch Assembly		Appelez-nous	-
2	3148725		Safety Switch		Appelez-nous	-
2	98106		Screw (2)		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	313035		Shield, Terminal		Appelez-nous	-
4	309258		Screw (2)		Appelez-nous	-
5	3169081		Handle, Latch		Appelez-nous	-
5	308422		Screw (2)		Appelez-nous	-
6	3148684		Knob, Latch		Appelez-nous	-
6	155023		Screw,			Immediately	$ 7.91
8	3149125		Limiter, Temp. (180 Mm - Lr)		Appelez-nous	-
8	3149123		Limiter, Temp. (230 Mm - Rr)		Appelez-nous	-
8	3149127		Limiter, Temp. (250 Mm (lf))		Appelez-nous	-
8	3149126		Limiter, Temp. (200 Mm - Rf)		Appelez-nous	-
9	3148827		Element, Surface (includes No.8) (230 Mm (rr))		Appelez-nous	-
9	3148826		Element, Surface (includes No. 8) (200 Mm (rf))		Appelez-nous	-
9	3148825		Element, Surface (includes No.8) (180 Mm (lr))		Appelez-nous	-
9	3148828		Element, Surface (includes No.8) (250 Mm (lf))		Appelez-nous	-
10	WP486754		Screw (8)   (Replaces: 246119)				$ 8.01
10	3149191		Spring (8)				$ 9.45
11	3148809		Bracket, Top		Appelez-nous	-
11	98520		Screw (4)		Appelez-nous	-
13	3176524		Cooktop (almond)		Appelez-nous	-
13	3176523		Cooktop (white)		Appelez-nous	-
14	307965		Bracket, Hinge (2)		Appelez-nous	-
14	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 8.47
15	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 8.47
15	307966		Pin, Hinge (2)		Appelez-nous	-
16	3149012		Cover, Vent (almond)		Appelez-nous	-
16	3149011		Cover, Vent (white)		Appelez-nous	-
17	98520		Screw (2)		Appelez-nous	-
17	3149032		Bracket, Light		Appelez-nous	-
18	3149029		Light, Indicator		Appelez-nous	-
19	3149262		Shield, Probe		Appelez-nous	-
22	3149190		Clip, Mounting		Appelez-nous	-
23	311311		Clip, Wire		Appelez-nous	-
	LIT3150302		Guide, Use And Care		Appelez-nous	-
	LIT885013		Repair Parts List		Appelez-nous	-
	LIT3182687		Video, Ceran Cooktop		Appelez-nous	-
	LIT3147395		Instructions, Installation		Appelez-nous	-
	LIT3149507		Cooking Guide		Appelez-nous	-
	LIT3181449		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
