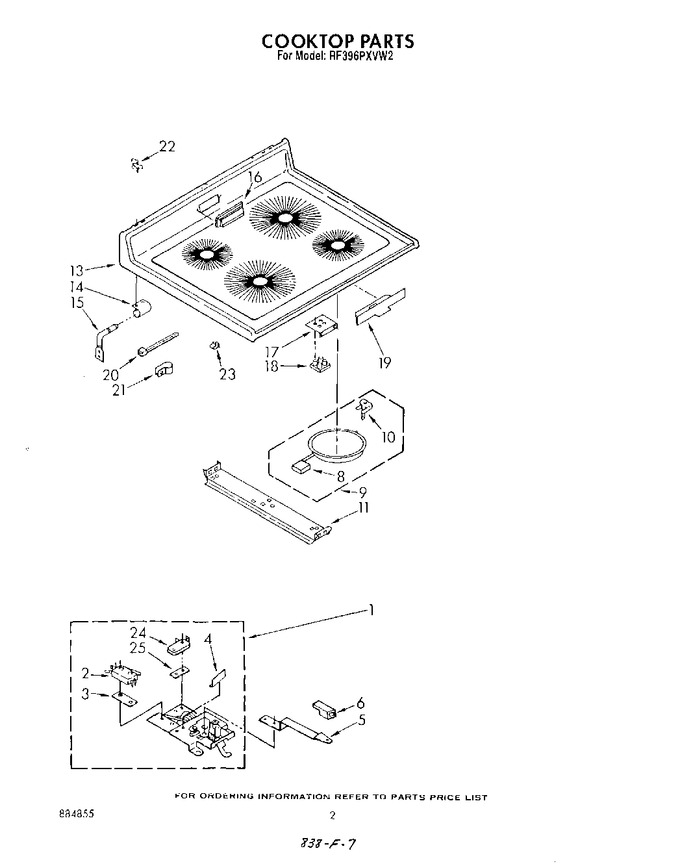

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw (2) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 1 | 3171149 | Latch Assembly |
|
- | |||||
| 2 | 98106 | Screw (2) |
|
- | |||||
| 2 | 3148725 | Safety Switch |
|
- | |||||
| 3 | 309245 | Insulator, Switch |
|
- | |||||
| 4 | 313035 | Shield, Terminal |
|
- | |||||
| 4 | 309258 | Screw (2) |
|
- | |||||
| 5 | 3147065 | Handle, Latch |
|
- | |||||
| 5 | 308422 | Screw (2) |
|
- | |||||
| 6 | 3148684 | Knob, Latch |
|
- | |||||
| 6 | 155023 | Screw, |
|
Immediately | $ 7.91 | ||||
| 8 | 3149123 | Limiter, Temp. (230 Mm - Rr) |
|
- | |||||
| 8 | 3149127 | Limiter, Temp. (250 Mm (lf)) |
|
- | |||||
| 8 | 3149125 | Limiter, Temp. (180 Mm - Lr) |
|
- | |||||
| 8 | 3149126 | Limiter, Temp. (200 Mm - Rf) |
|
- | |||||
| 9 | 3148828 | Element, Surface (includes 8, 10) (250 Mm - Lf) |
|
- | |||||
| 9 | 3148825 | Element, Surface (includes 8, 10) (180 Mm - Lr) |
|
- | |||||
| 9 | 3148826 | Element, Surface (includes 8, 10) (200 Mm - Rf) |
|
- | |||||
| 9 | 3148827 | Element, Surface (includes 8, 10) (230 Mm - Rr) |
|
- | |||||
| 10 | 3149191 | Spring (8) |
|
$ 9.45 | |||||
| 10 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 8.01 | |||||
| 11 | 3148809 | Bracket, Top |
|
- | |||||
| 11 | 98520 | Screw (4) |
|
- | |||||
| 13 | 3176523 | Cooktop (white) |
|
- | |||||
| 13 | 3176524 | Cooktop (almond) |
|
- | |||||
| 14 | 307965 | Bracket, Hinge (2) |
|
- | |||||
| 14 | WP681414 | Screw (4) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 15 | 307966 | Pin, Hinge (2) |
|
- | |||||
| 15 | WP681414 | Screw (4) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 16 | 3149012 | Cover, Vent (almond) |
|
- | |||||
| 16 | 3149011 | Cover, Vent (white) |
|
- | |||||
| 17 | 3149032 | Bracket, Light |
|
- | |||||
| 17 | 98520 | Screw (2) |
|
- | |||||
| 18 | 3149029 | Light, Indicator |
|
- | |||||
| 19 | 3150346 | Shield, Probe |
|
- | |||||
| 20 | 3149157 | Tie, Cable |
|
- | |||||
| 21 | WP308605 | Relief, Strain (Replaces: 308605) |
|
$ 11.76 | |||||
| 21 | 98520 | Screw |
|
- | |||||
| 22 | 3149190 | Clip, Mounting |
|
- | |||||
| 23 | 311311 | Clip, Wire |
|
- | |||||
| 24 | 3148669 | Switch, Lock |
|
- | |||||
| 25 | 3147864 | Insulator, Switch |
|
- | |||||
| LIT3149922 | Guide, Use And Care |
|
- | ||||||
| LIT3147389 | Instructions, Installation |
|
- | ||||||
| LIT884855 | List, Repair Parts |
|
- | ||||||
| LIT3149779 | Tech Sheet |
|
- | ||||||
| LIT3149507 | Guide, Cooking |
|
- |
