02 - Cooktop
03 - Control Panel
04 - Door And Drawer
05 - Unit, Lit/optional
06 - Oven
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:

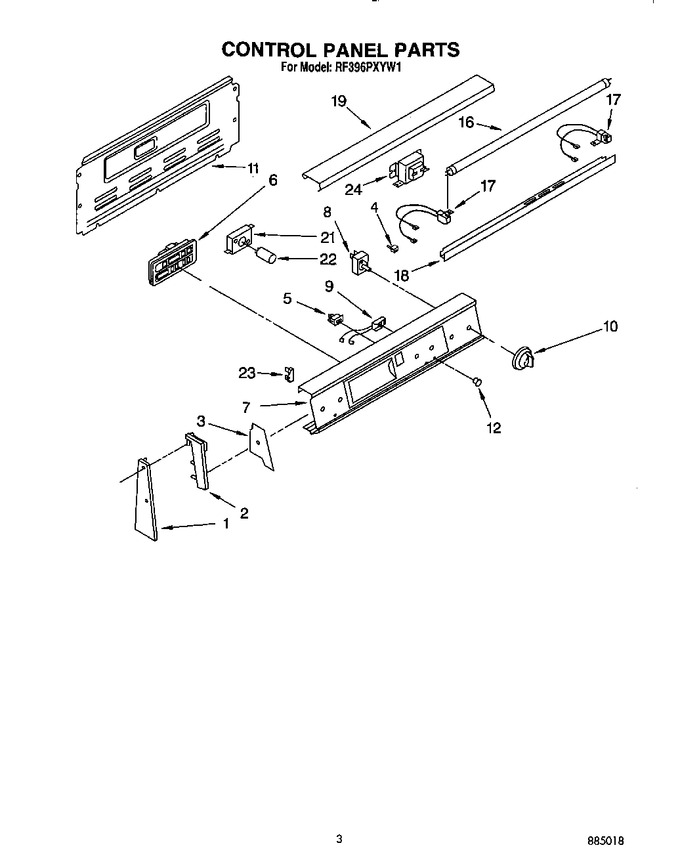

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 313191 | End Trim R.h. |
|
- | |||||
| 1 | 313190 | End Trim L.h. |
|
- | |||||
| 1 | WP681414 | Screw (6) (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 2 | 313182 | End Cap R.h. |
|
- | |||||
| 2 | 254225 | Screw, (4) 8-bt X 1/4 |
|
- | |||||
| 2 | 313181 | End Cap L.h. |
|
- | |||||
| 3 | 313608 | Shield, R Or L |
|
- | |||||
| 3 | WP965173 | Screw, (2) 8a X 3/8 (Replaces: 246132) |
|
Immediately | $ 10.72 | ||||
| 4 | 3147832 | Adapter, Terminal |
|
- | |||||
| 5 | 3182718 | Switch, Rocker (designer White) |
|
- | |||||
| 5 | 3182717 | Switch, Rocker (white/almond/black) |
|
- | |||||
| 6 | 3182392 | Erc Timer Control (designer White) |
|
- | |||||
| 6 | WP965173 | Erc Timer Control (screw) (Replaces: 246132) |
|
Immediately | $ 10.72 | ||||
| 6 | 3182391 | Erc Timer Control (white/almond/black) |
|
- | |||||
| 7 | 3169208 | Panel, Control (white/almond/black) |
|
- | |||||
| 7 | 3169209 | Panel, Control (designer White) |
|
- | |||||
| 8 | WP486579 | Switch, Infinite (screw, 8-32 X 1/4 (8)) (Replaces: 311865) |
|
$ 7.34 | |||||
| 8 | WP3148952 | Switch, Infinite (6`` Unit (2)) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 8 | WP3148955 | Switch, Infinite (8`` Unit (2)) (Replaces: 3148955) |
|
$ 145.03 | |||||
| 9 | 313102 | Indicator Light (2) |
|
$ 66.48 | |||||
| 10 | 3183118 | Knob, Control (4) (infinite Switch) (white/almond/black) |
|
$ 23.04 | |||||
| 10 | 3183117 | Knob, Control (4) (infinite Switch) (designer White) |
|
$ 24.34 | |||||
| 11 | 313195 | Rear Cover |
|
- | |||||
| 11 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 12 | 313101 | Lens, Amber (2) |
|
- | |||||
| 16 | 313110 | Lamp, Fluorescent |
|
- | |||||
| 17 | WP313808 | Socket, Lamp (screw, 6-32 X 1/4) (Replaces: 311932) |
|
$ 7.60 | |||||
| 17 | 3183281 | Socket, Lamp (light Rh) |
|
- | |||||
| 17 | 3183282 | Socket, Lamp (light Lh) |
|
- | |||||
| 18 | 3184112 | Backguard, Lamp |
|
- | |||||
| 19 | 3149831 | Cover, Lamp (black) |
|
- | |||||
| 19 | 3149832 | Cover, Lamp (designer White) |
|
- | |||||
| 21 | 3147224 | Socket, Starter |
|
- | |||||
| 22 | 387695 | Starter, Lamp |
|
$ 8.20 | |||||
| 23 | WP3196548 | Fuse, Thermal (Replaces: 313214) |
|
Immediately | $ 47.71 | ||||
| 24 | 660001 | Ballast |
|
- |
