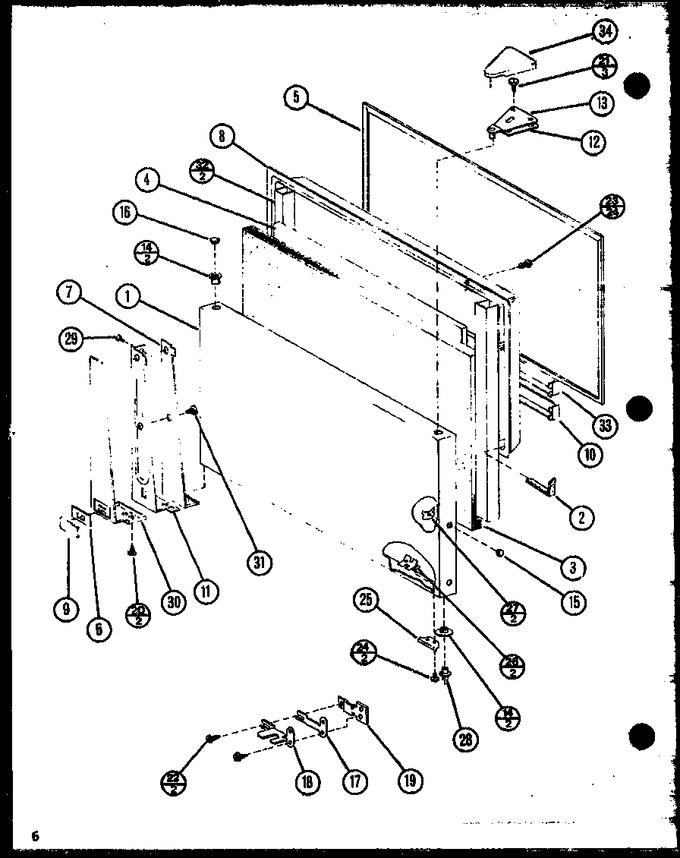

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7745204		Door Frz W Tr20		Appelez-nous	-
2	B0523563		Insulation Ft. K		Appelez-nous	-
3	B5683513		Insulation		Appelez-nous	-
4	B5683515		Insulation		Appelez-nous	-
5	D7605108		Gasket		Appelez-nous	-
6	C8962701		Pad Nameplate		Appelez-nous	-
7	D7745007		Handle Pad Inner W		Appelez-nous	-
8	D7869602		Inner Door, Frz		Appelez-nous	-
9	C8962618		Nameplate		Appelez-nous	-
10	D7869807		Retainer, Cant. V		Appelez-nous	-
11	D7744801		Door Handle		Appelez-nous	-
12	B8389003		Shim, Top Hinge, .016		Appelez-nous	-
12	B8389002		Shim Top Hinge		Appelez-nous	-
12	B8389001		Shim, Top Hinge		Appelez-nous	-
13	B5744301		Hinge		Appelez-nous	-
14	C3652901		Bushing, Hinge Pin		Appelez-nous	-
15	M0311301		Plug Button		Appelez-nous	-
16	M0310601		Plug		Appelez-nous	-
17	B8351401		Shim K		Appelez-nous	-
17	B8351402		Shim K		Appelez-nous	-
17	B8351403		Shim, Center Hinge		Appelez-nous	-
18	C8948601		Center Hinge Bracket		Appelez-nous	-
19	C8925501		Kit, Tap Plate & Screw		Appelez-nous	-
20	WPW10348409		Screw   (Replaces: M0222416)			Immediately	$ 7.76
21	R9800670		Kit, Screw   (Replaces: M0257244)				$ 9.38
22	M0226831		Screw		Appelez-nous	-
23	M0219717		Screw		Appelez-nous	-
24	M0203458		Screw		Appelez-nous	-
25	C8894802		Door Stop		Appelez-nous	-
26	B8363501		Nut		Appelez-nous	-
27	B8361401		Nut		Appelez-nous	-
28	B8373101		Center Pin Hinge		Appelez-nous	-
29	M0203931		Screw, Tf		Appelez-nous	-
30	D7744909		Pad		Appelez-nous	-
31	M0215115		Screw		Appelez-nous	-
32	C8987106		Seal Door Dike		Appelez-nous	-
33	D7869907		Door Shelf		Appelez-nous	-
34	D7872103		Cover Hinge L		Appelez-nous	-
