SELECT A DIAGRAM

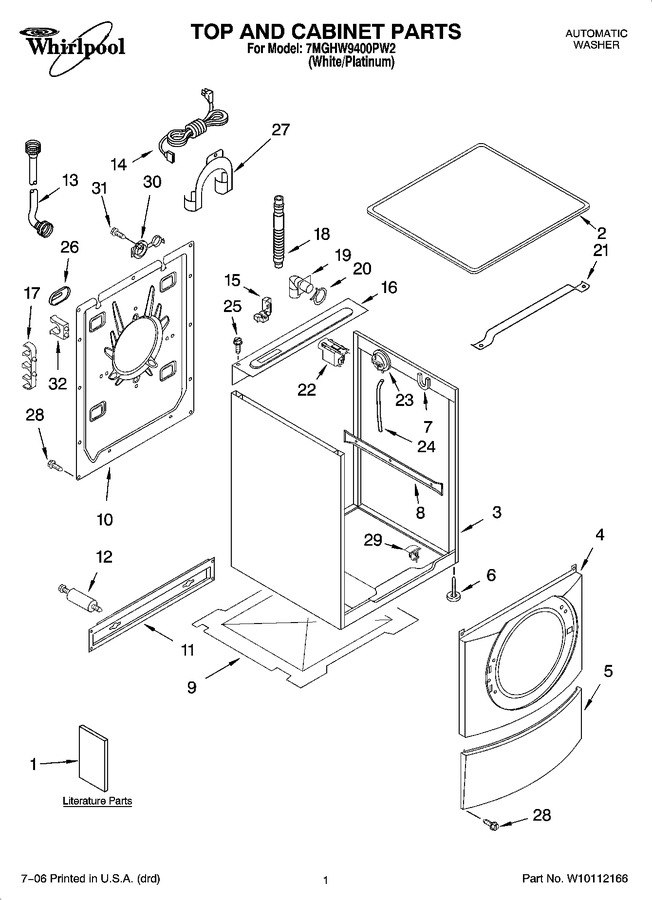

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8182780		Use & Care Guide		Appelez-nous	-
1	8182136		Quick Start Guide		Appelez-nous	-
1	8182782		Dispenser Guide		Appelez-nous	-
2	8181641		Top		Appelez-nous	-
3	8181630		Cabinet		Appelez-nous	-
4	8181838		Panel, Front		Appelez-nous	-
5	8181643		Toe Panel		Appelez-nous	-
6	8181636		Foot, Leveling				$ 9.57
7	WP8181763		Bracket, Spring   (Replaces: 8181763)				$ 79.99
8	8183008		Brace, Side Panel		Appelez-nous	-
9	8181635		Pan, Bottom				$ 66.73
10	8182698		Panel, Rear		Appelez-nous	-
11	WPW10003040		Brace, Transport   (Replaces: 8182117)				$ 96.77
12	W10289554A		Bolt, Shipping (lower)   (Replaces: 8182798)				$ 64.96
12	W10289554A		Bolt, Shipping (upper)   (Replaces: 8182797)				$ 64.96
13	WP89503		Hose, Water Inlet (red Coupler)   (Replaces: 8182792)			Immediately	$ 24.09
13	WP89503		Hose, Water Inlet (blue Coupler)   (Replaces: 8182795)			Immediately	$ 24.09
14	WP8183009		Cord, Power   (Replaces: 8183009)				$ 147.66
15	8182635		Strain Relief   (Replaces: 8181690)				$ 16.72
16	8182607		Brace, Rear		Appelez-nous	-
17	8182701		Clip, Outer Hose Holder				$ 81.73
18	WP8181737		Outer Drain Hose   (Replaces: 8181737)			Immediately	$ 62.50
19	W11757170		Connector, Hose Outlet   (Replaces: 8181738)			Immediately	$ 6.39
20	WP3367052		Clamp, Hose   (Replaces: 8181752)				$ 8.32
21	8181632		Brace, Top		Appelez-nous	-
22	WPW10367632		Filter, Interference   (Replaces: 8183019)				$ 122.22
23	WPW10514214		Switch, Pressure   (Replaces: 8181695)			Immediately	$ 146.04
24	WPW10004260		Hose, Pressure Switch   (Replaces: 8181739)			Immediately	$ 7.00
25	8181691		Screw		Appelez-nous	-
26	WP8540268		Cover, Transport   (Replaces: 8182700)				$ 6.95
27	WPW10280024		Storage, Hose   (Replaces: 8181768)				$ 79.53
28	WP488729		Screw   (Replaces: 8181828)			Immediately	$ 7.79
29	WPW10085220		Microswitch (2)   (Replaces: 8182830)				$ 33.25
30	W11116978		Grommet, Cord Support (2)   (Replaces: 8182200)				$ 22.80
31	8182201		Screw, 3 X 8 Mm				$ 13.41
32	8182109		Harness Channel		Appelez-nous	-
32	8182702		Clip, Outer Hose Holder				$ 38.17

    View Diagram in Separate Window       Print Part List
