Diagram for 03 - Cabinet
03 - Cabinet

Diagram for 04 - Top And Console
04 - Top And Console

Diagram for 05 - 4319410 Burner
05 - 4319410 Burner


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 345703 Top (white)   (Replaces: 4319377) Special Order $ 261.58

1 4319405 Top (almond) Appelez-nous -
2 307563 Rivet, Plastic (4) Appelez-nous -
3 688041 Nut, Knurled Appelez-nous -
4 345530 Ring, Trim Appelez-nous -
5 90891 Nut, Hex Appelez-nous -
6 688193 Lockwasher Appelez-nous -
14 686769 Protector Support Appelez-nous -
20 690621 Timer, 60 Hz. Appelez-nous -
22 348171 Bracket, Timer   (Replaces: 4319376) Appelez-nous -
23 W11808444 Screw, 8-32 X 5/16 (2)   (Replaces: 98139) Appelez-nous -
29 WP681414 Screw, 8-18 X 3/8   (Replaces: 690989) In-Stock Immediately $ 8.47

31 9830192 Panel, Control Appelez-nous -
32 9830050 Timer Knob & Skirt Assembly Appelez-nous -
36 689038 Switch, Push-to-start Appelez-nous -
51 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 8.47

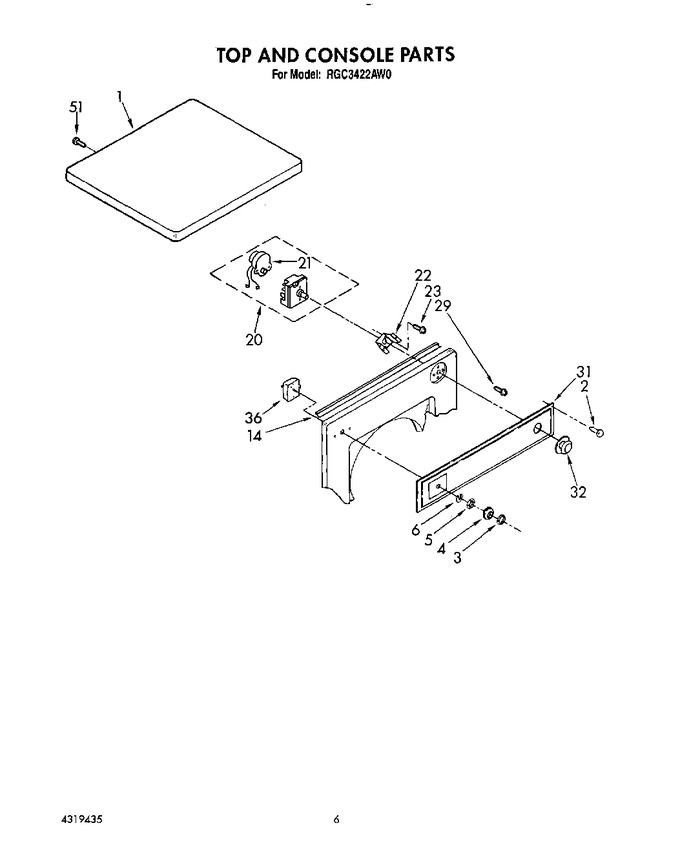

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for RGC3422AW0
