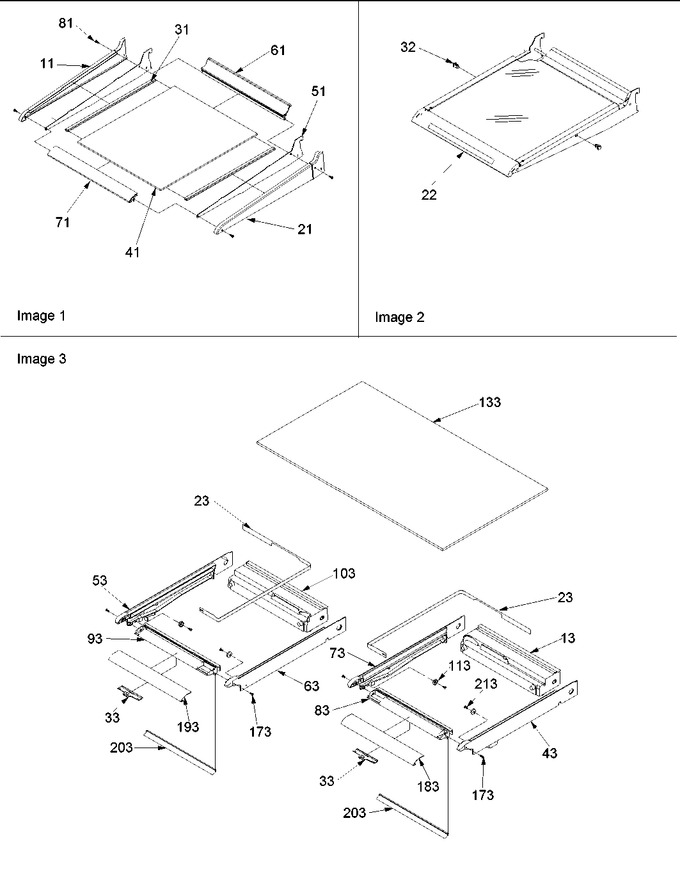

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10436603 | Cover, Glass Shelf Rail |
|
- | |||||
| 13 | 10433804 | Rail, Crisper Back |
|
- | |||||
| 21 | 10436604 | Cover, Glass Shelf Rail |
|
- | |||||
| 23 | 10467804 | Band, Crisper Cont. |
|
- | |||||
| 31 | 10562504 | Ext, Gl Shelf Side |
|
- | |||||
| 33 | 10797501 | Slide, Crisper |
|
- | |||||
| 41 | 10370010 | Shelf, Glass |
|
- | |||||
| 43 | 10432703 | Rail, Side Crisper |
|
- | |||||
| 51 | 10681402 | Rail, Pntd |
|
- | |||||
| 53 | 10432704 | Rail, Side Crisper |
|
- | |||||
| 61 | 10436905 | Extr, Gl Shelf Rear |
|
- | |||||
| 63 | 10432805 | Rail, Ctr. Crisper |
|
$ 21.50 | |||||
| 71 | 10436819 | Ext, Gl Shelf Front |
|
- | |||||
| 73 | 10432806 | Rail, Ctr. Crisper |
|
$ 23.67 | |||||
| 81 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 83 | 10687801 | Rail, R. Crisper Frt |
|
- | |||||
| 93 | 10687802 | Rail, L. Crisper Frt |
|
- | |||||
| 103 | 10435604 | Rail, Crisper Back |
|
- | |||||
| 133 | 10370012 | Shelf, Glass |
|
$ 86.24 | |||||
| 173 | 67006692 | Screw, Hi Lo (Replaces: M0237932) |
|
$ 10.79 | |||||
| 183 | 10688055 | Extr, R Crisp Front |
|
- | |||||
| 193 | 10688056 | Extr-l Crisp Front |
|
- | |||||
| 203 | 10530204 | Seal, Crisper |
|
$ 39.10 |
