Diagram for 01 - Cooktop Parts
01 - Cooktop Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Door And Drawer Parts
03 - Door And Drawer Parts

Diagram for 04 - Oven Chassis Parts
04 - Oven Chassis Parts

Diagram for 05 - Oven Parts, Miscellaneous Parts
05 - Oven Parts, Miscellaneous Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9780492PW Lamp Cover, Black Appelez-nous -
2 3191072 Breaker, 15 Amp Appelez-nous -
3 9750263FW End Cap R.h. Appelez-nous -
3 9750262FW End Cap L.h. Appelez-nous -
4 9781776 Backguard Appelez-nous -
5 9781709 Panel, Control Appelez-nous -
6 9750272FW Knobs, Control (5) Appelez-nous -
7 WP9750343 Lens, Indicator (3)   (Replaces: 9752589) In-Stock Immediately $ 6.00

8 9780801 Light Module (oven) Appelez-nous -
9 313102 Light Indicator Special Order $ 66.48

10 6700G0001 Thermostat, Oven   (Replaces: 9750401) In-Stock Immediately $ 328.86

11 3191100FW Switch, Rocker Appelez-nous -
13 WP9750641 Infinite Switch (2400w 8``)   (Replaces: 9750641) In-Stock Immediately $ 103.02

13 WP9750638 Infinite Switch (1400w 6``)   (Replaces: 9750638) In-Stock Immediately $ 113.89

14 9751480FW Outlet, Untimed Appelez-nous -
15 9781713 Timer / Clock Appelez-nous -
18 9780265 Screw Appelez-nous -
19 3400853 Screw Appelez-nous -
20 WP3400882 Screw   (Replaces: 3400816) In-Stock Immediately $ 7.55


    View Diagram in Separate Window     Print Icon   Print Part List

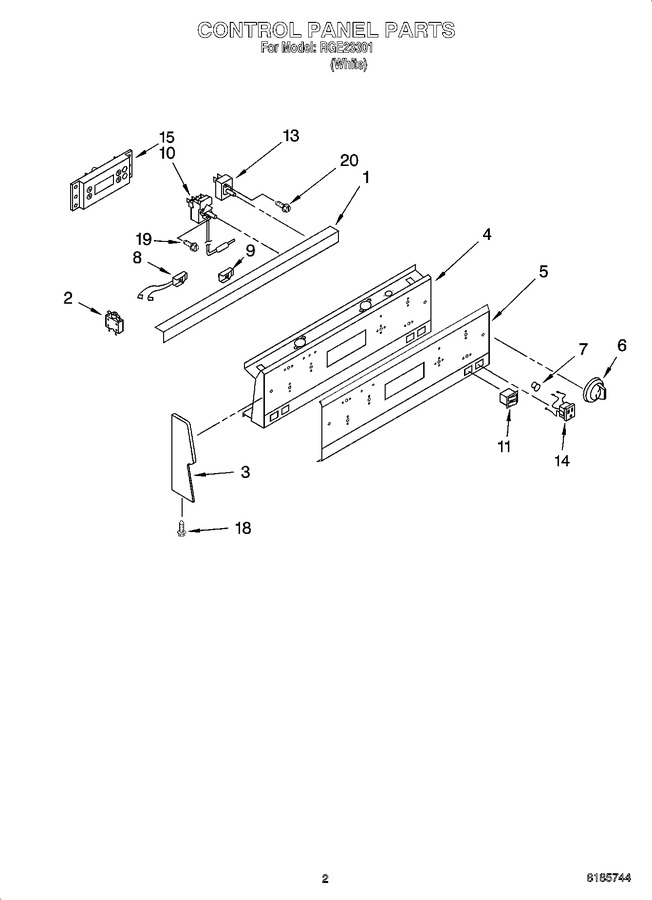

Diagram for RGE23301
