Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10474802 Grille, Toe (white) Special Order $ 44.88

2 WP67001130 Plug   (Replaces: M0310709) In-Stock Immediately $ 8.21

3 Y10430108 Pan-crisper Appelez-nous -
4 10797501 Slide, Crisper Appelez-nous -
5 10461901 Post, Crisper Support In-Stock Immediately $ 25.85

6 10370012 Shelf, Glass Special Order $ 86.24

7 10688008 Extr, R. Crisper Frt Appelez-nous -
7 10688011 Extr. L. Crisper Frt Appelez-nous -
8 WP841180A Tray, Ice   (Replaces: D7725401) In-Stock Immediately $ 47.84

9 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

10 10481001 Roller, Pan Special Order $ 10.99

11 D7599002 Ladder, Center Appelez-nous -
12 D7874402 Cover-fl Tb/plug Appelez-nous -
13 10530201 Seal, Crisper Appelez-nous -
14 10467804 Band, Crisper Cont. Appelez-nous -
15 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

16 10505604 Ext., Wire Shelf Appelez-nous -
17 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

18 M0230923 Screw Appelez-nous -
19 D7806002 Divider, Wire Appelez-nous -
20 WP67001130 Plug, Top Hinge Button (wht)   (Replaces: M0310729) In-Stock Immediately $ 8.21

21 D7599105 Ladder, Side Appelez-nous -
22 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

23 10250502 Rack, Freezer Appelez-nous -
24 10423001 Rack, Ice Service Appelez-nous -
25 M0219523 Screw Appelez-nous -
26 M0270508 Washer Appelez-nous -
27 67006692 Screw, Hi Lo   (Replaces: M0237932) Special Order $ 10.79

28 10433804 Rail, Crisper Back Appelez-nous -
29 10432701 Rail, Side Crisper Appelez-nous -
30 10432702 Rail, Side Crisper Appelez-nous -
31 10432803 Rail, Ctr. Crisper Appelez-nous -
32 10432804 Rail, Ctr. Crisper Appelez-nous -
33 10435604 Rail, Crisper Back Appelez-nous -
34 10551501 Clip-toe Grille Appelez-nous -
35 10506002 Shelf, Wire Frz Appelez-nous -
36 10687801 Rail, R. Crisper Frt Appelez-nous -
37 10687802 Rail, L. Crisper Frt Appelez-nous -
NI 10698507 Assy, Crisp Frame Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

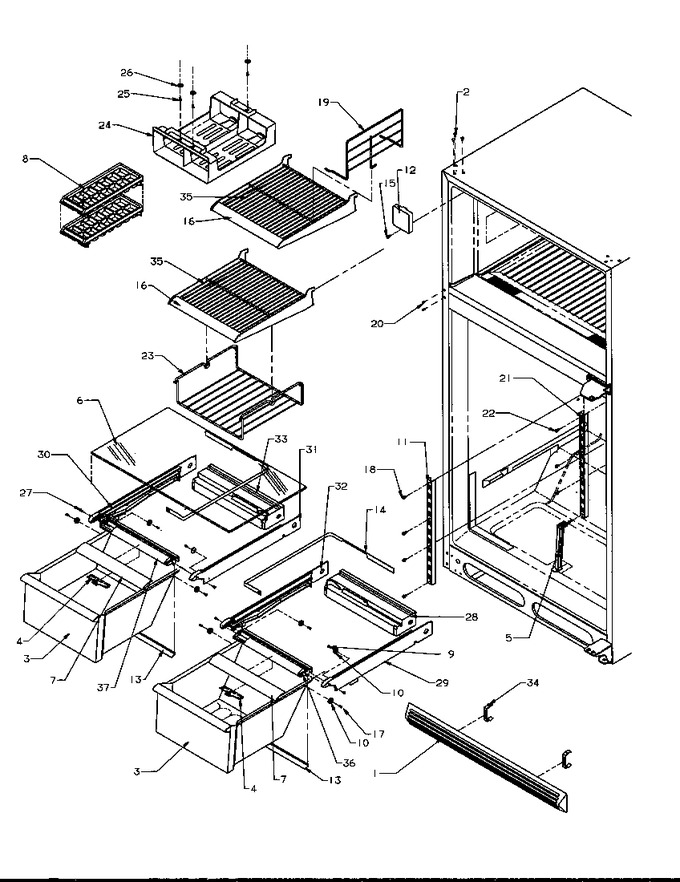

Diagram for TP22R3W (BOM: P1181603W W)
