SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Bottom


03 - Cabinet Shelving


04 - Cabinet Shelving

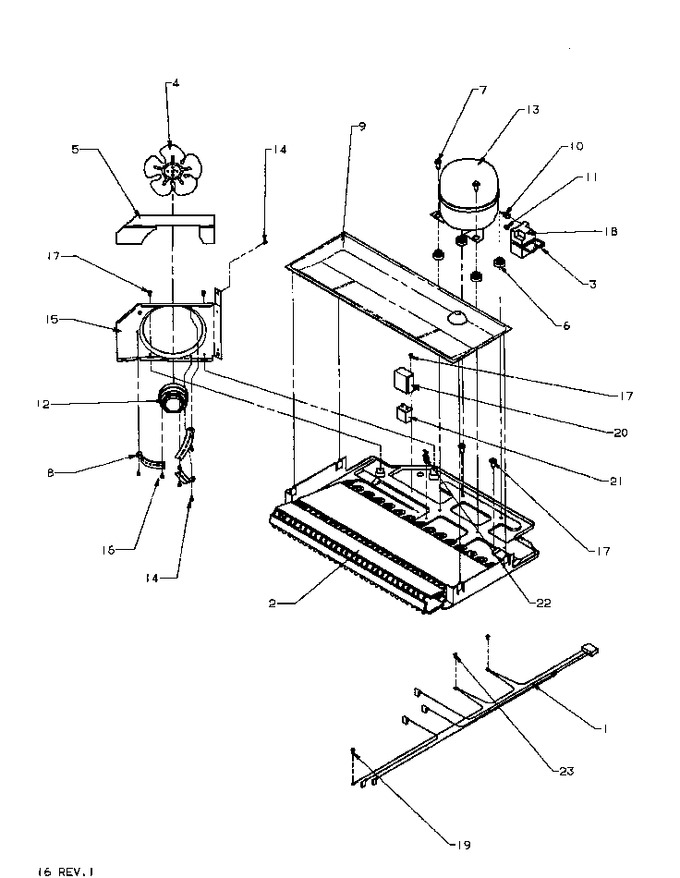

05 - Compressor Compartment


06 - Control Panel


07 - Divider Block


08 - Evap Area


09 - Fz Door Assy


10 - Ref Door Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10705801		Harness, Mach. Comp.		Appelez-nous	-
2	10481202		Assy,cond/pan-e Ct		Appelez-nous	-
3	YB8358601		Bale Strap		Appelez-nous	-
4	B5742602		Blade, Fan		Appelez-nous	-
5	10442702		Gasket, Cond. Fan		Appelez-nous	-
6	WPW10169124		Grommet, Compressor   (Replaces: 10514101)				$ 7.55
7	M0221548		Screw, Shoulder		Appelez-nous	-
8	10582501		Bracket, Cond. Motor		Appelez-nous	-
9	10427401		Pan, Drain		Appelez-nous	-
10	10377003		Overload		Appelez-nous	-
11	2154436		Relay-ptc   (Replaces: C8931502)				$ 141.69
12	833697		Motor, Fan   (Replaces: 10448603)			Immediately	$ 88.15
13	W10439652		Kit, Compressor   (Replaces: 10507802)				$ 442.20
14	M0227217		Screw, Sm		Appelez-nous	-
15	10426904		Shroud, Cond. Fan (e Coat)		Appelez-nous	-
16	M0223803		Screw		Appelez-nous	-
17	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
18	C8960801		Term Cover		Appelez-nous	-
19	M0253916		Screw		Appelez-nous	-
20	10266401		Shield-capacitor		Appelez-nous	-
21	WPW10662129		Capacitor   (Replaces: C8931602)			Immediately	$ 58.86
22	DC61-40081A		Tie, Wire   (Replaces: M0585401)				$ 0.94
23	WP489399		Screw   (Replaces: M0232903)				$ 7.30

    View Diagram in Separate Window       Print Part List
