SELECT A DIAGRAM

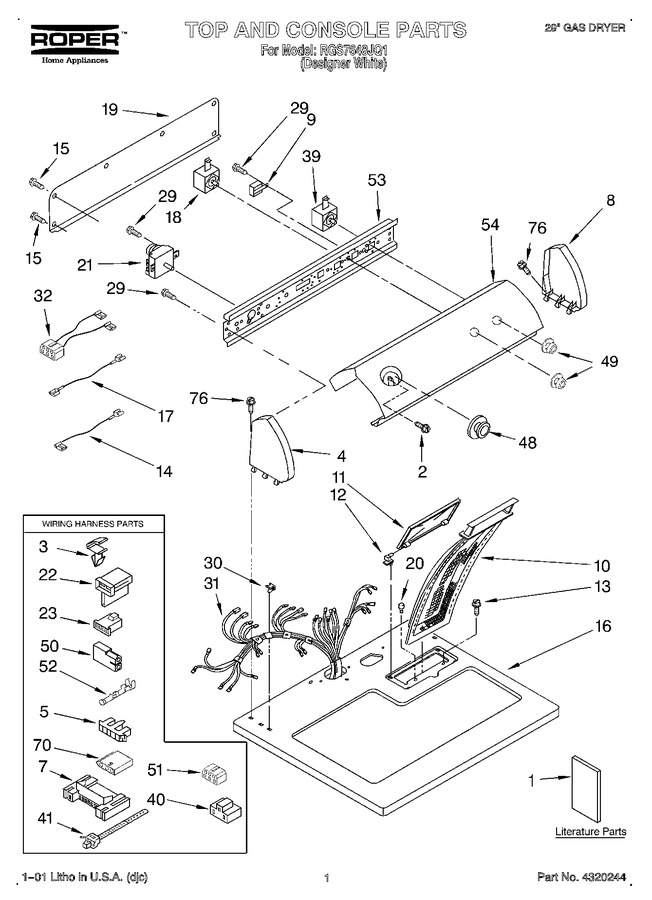

01 - Top And Console, Lit/optional


02 - Cabinet


03 - Bulkhead


04 - 8318272 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3978906		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3406692		Literature Parts (label, Wiring Diagram)		Appelez-nous	-
1	LIT3405637		Literature Parts (guide, Use & Care)		Appelez-nous	-
2	3400859		Screw, 8-18 X 7/32				$ 13.88
3	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
4	279960		Cap, End (l.h.)   (Replaces: 8274437)				$ 87.57
5	3397269		Connector, Timer				$ 25.55
7	3395683		Housing, Connector (motor)			Immediately	$ 54.45
8	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 87.57
9	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	8283378		Cover, Lint Screen				$ 44.80
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 8.11
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3401694		Wire, Jumper (tan)		Appelez-nous	-
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
16	8271390		Top		Appelez-nous	-
17	3401684		Wire, Jumper (black)				$ 34.57
18	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
19	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
20	297535		Bumper, Lint Lid		Appelez-nous	-
21	WP8299765		Timer   (Replaces: 8299765)				$ 336.63
22	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
23	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	3394307		Harness, Wiring		Appelez-nous	-
32	8539893		Wire-jumper Assembly (temperature)   (Replaces: 3396029)				$ 19.78
39	3398096		Switch, Push-to-start				$ 50.70
40	3401144		Connector, (pts Relay)				$ 12.81
41	3391249		Tie, Cable		Appelez-nous	-
48	8274380		Timer Knob Assembly		Appelez-nous	-
49	8274378		Knob, Control (2)		Appelez-nous	-
50	717252		Receptacle, 2 Way		Appelez-nous	-
51	3347243		Connector 6-circuit		Appelez-nous	-
52	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
53	8271418		Bracket, Control				$ 57.15
54	3977915		Panel, Control		Appelez-nous	-
70	3936144		Connector				$ 21.22
76	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
76	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
76	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
76	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
76	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
76	3406839		Dry Rack			Immediately	$ 65.68

    View Diagram in Separate Window       Print Part List
