SELECT A DIAGRAM

01 - Page 10


02 - Page 11


03 - Page 12


04 - Page 13


05 - Page 14


06 - Page 8


07 - Page 9

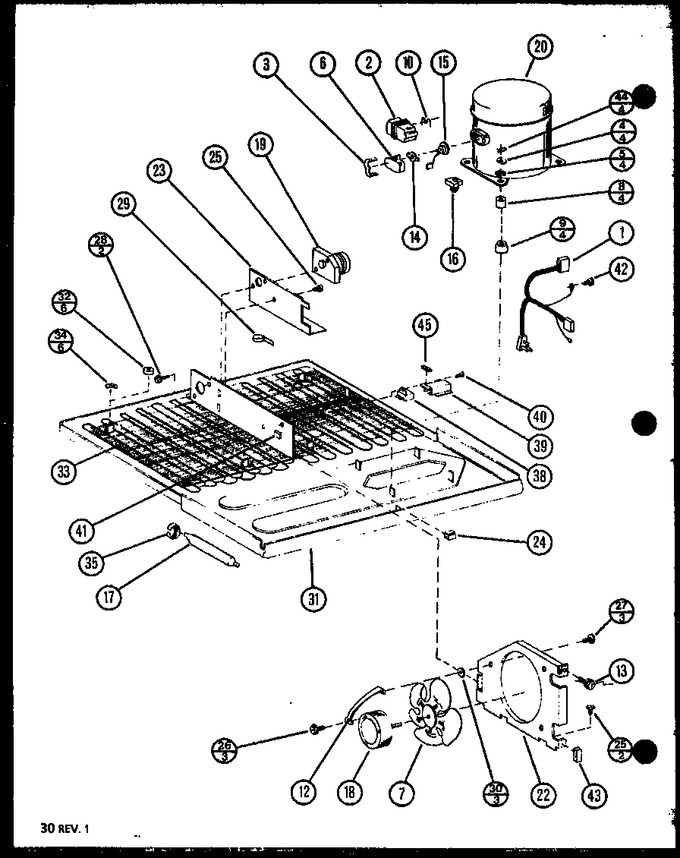

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10115901		Harness M.c.		Appelez-nous	-
3	A3041801		Strap K		Appelez-nous	-
4	B8365302		Washer		Appelez-nous	-
6	B0559501		Cover K		Appelez-nous	-
7	B5742601		Blade, Fan		Appelez-nous	-
8	A3072001		Sleeve K		Appelez-nous	-
9	WPW10169124		Grommet   (Replaces: B8333401)				$ 7.55
12	C8982101		Bracket, Cond Motor		Appelez-nous	-
13	WP489069		Screw-sd   (Replaces: M0233704)			Immediately	$ 8.40
14	C8916701		Spring K		Appelez-nous	-
15	C8866906		Overload		Appelez-nous	-
16	C3553407		Relay		Appelez-nous	-
17	WPB2150504		Drier   (Replaces: B5715001)				$ 136.98
18	833697		Motor, Fan   (Replaces: D7584001)			Immediately	$ 88.15
19	D7790401		Timer, Defrost		Appelez-nous	-
20	W10439652		Compressor   (Replaces: D7743203)				$ 442.20
22	D7691002		Cond. Fan Shrd		Appelez-nous	-
23	D7752701		Bracket, Timer		Appelez-nous	-
24	M0110508		Clip		Appelez-nous	-
25	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
26	M0223803		Screw		Appelez-nous	-
27	M0221332		Screw, Shoulder		Appelez-nous	-
28	M0218118		Screw		Appelez-nous	-
29	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
30	M0500107		Grommet K		Appelez-nous	-
31	D7595411		Base Pan - Ptd		Appelez-nous	-
32	B8346301		Spacer Cond.		Appelez-nous	-
33	D7654301		Condenser Pntd		Appelez-nous	-
34	M0293703		Speednut		Appelez-nous	-
35	M0104002		Clamp-drier		Appelez-nous	-
41	A9008301		Felt		Appelez-nous	-
42	M0253916		Screw		Appelez-nous	-
43	B5759604		Gasket		Appelez-nous	-
44	A3140801		Clip K		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
