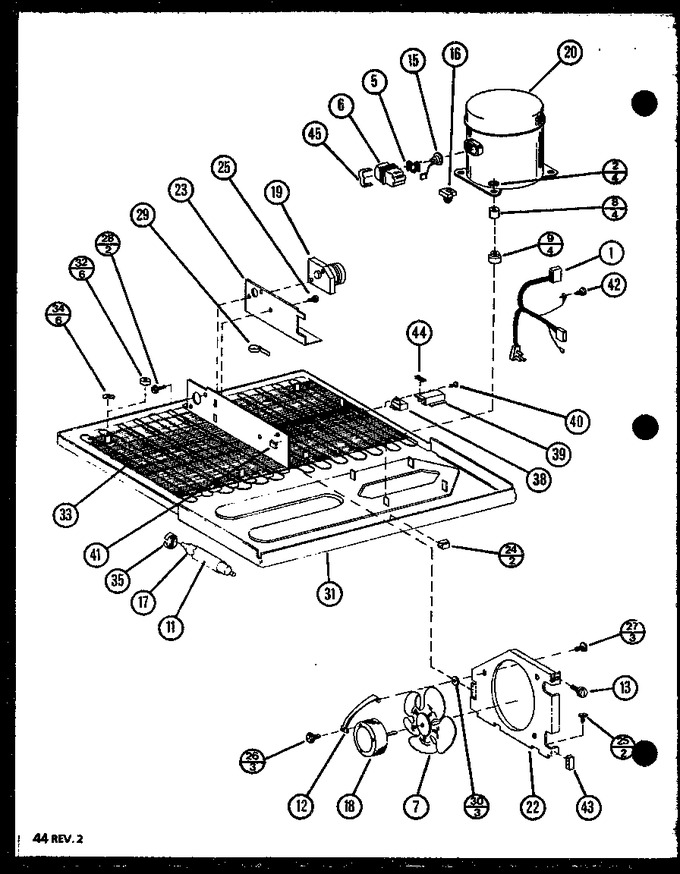

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10104801		Harness M.c.		Appelez-nous	-
2	B8352901		Clip Comp		Appelez-nous	-
5	B8358301		Spring, Overload		Appelez-nous	-
6	C8960801		Term Cover		Appelez-nous	-
7	B5742601		Blade, Fan		Appelez-nous	-
8	A3072001		Sleeve K		Appelez-nous	-
9	WPW10169124		Grommet   (Replaces: B8333401)				$ 7.55
11	B0523585		Insulation Batt Per Foot		Appelez-nous	-
12	C8982101		Bracket, Cond Motor		Appelez-nous	-
13	WP489069		Screw-sd   (Replaces: M0233704)			Immediately	$ 8.40
15	C8906206		Overload		Appelez-nous	-
16	C8931503		Relay		Appelez-nous	-
17	WPB2150504		Drier   (Replaces: B5715001)				$ 136.98
18	833697		Motor, Fan   (Replaces: D7584001)			Immediately	$ 88.15
19	10129301		Timer, Defrost				$ 86.08
20	30-FF10HBK1		Compressor Aea1410axa   (Replaces: D7736204)				$ 833.75
22	D7691002		Cond. Fan Shrd		Appelez-nous	-
23	D7690801		Timer Bracket		Appelez-nous	-
24	M0110508		Clip		Appelez-nous	-
25	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
26	M0223803		Screw		Appelez-nous	-
27	M0221332		Screw, Shoulder		Appelez-nous	-
28	M0218118		Screw		Appelez-nous	-
29	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
30	M0500107		Grommet K		Appelez-nous	-
31	D7595411		Base Pan - Ptd		Appelez-nous	-
32	B8346301		Spacer Cond.		Appelez-nous	-
33	D7654301		Condenser Pntd		Appelez-nous	-
34	M0293703		Speednut		Appelez-nous	-
35	M0104002		Clamp-drier		Appelez-nous	-
38	WPW10662129		Capacitor   (Replaces: C8931602)			Immediately	$ 58.86
39	C8931101		Shield-capacitor		Appelez-nous	-
40	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
41	A9008301		Felt		Appelez-nous	-
42	M0253916		Screw		Appelez-nous	-
43	B5759604		Gasket		Appelez-nous	-
44	A3261703		Grommet Per In.		Appelez-nous	-
45	YB8358601		Bale Strap		Appelez-nous	-
