View Diagram in Separate Window
Print Part List

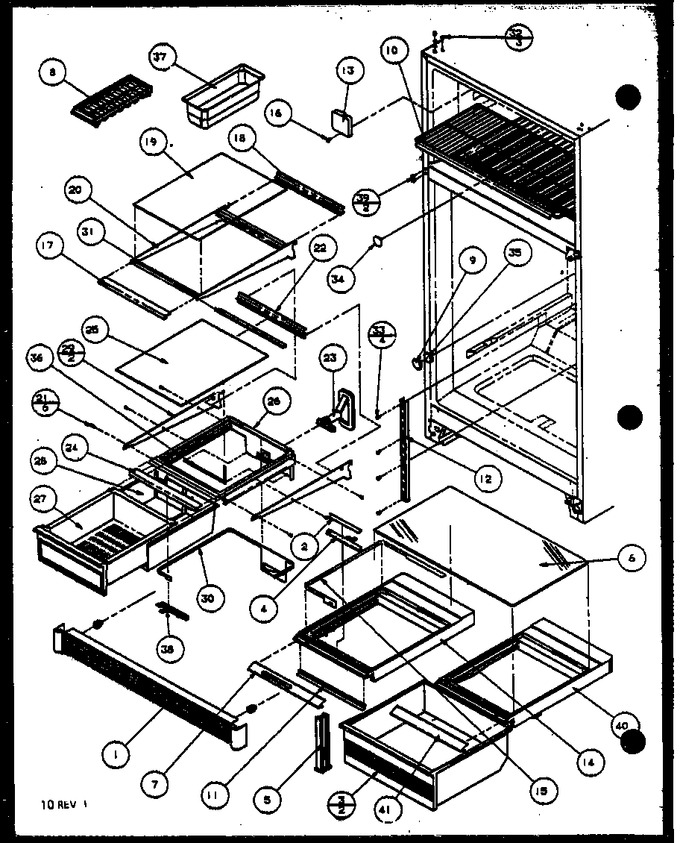

SELECT A DIAGRAM
01 - Page 1
02 - Page 10
03 - Page 2
04 - Page 4
05 - Page 5
06 - Page 6
07 - Page 7
08 - Page 9
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7520510 | Grille-toe-b K |
|
$ 44.22 | |||||
| 2 | 10199902 | Insert, Crisper Slide |
|
- | |||||
| 3 | D7581032 | Pan Crisper |
|
- | |||||
| 4 | 10199801 | Slide Crisper Control |
|
- | |||||
| 5 | 10199601 | Post, Crisper Support |
|
- | |||||
| 6 | D7421259 | Glass Crisper Top Gg |
|
- | |||||
| 7 | D7616665 | Trim Front Crisper |
|
- | |||||
| 8 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 47.84 | ||||
| 9 | M0310314 | Plug |
|
- | |||||
| 10 | D7580706 | Shelf, Frz |
|
- | |||||
| 11 | D7718402 | Seal Crisper |
|
- | |||||
| 12 | D7599002 | Ladder, Center |
|
- | |||||
| 13 | D7874402 | Cover-fl Tb/plug |
|
- | |||||
| 14 | 10182508 | Frame-crisper |
|
- | |||||
| 15 | 10200001 | Band, Crisper Control |
|
- | |||||
| 16 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 17 | 10049908 | Trim, Shelf |
|
- | |||||
| 18 | C8913603 | Trim, Shelf Rear |
|
- | |||||
| 19 | D7421282 | Glass Shelf |
|
- | |||||
| 20 | D7871003 | Frame, Cant. |
|
- | |||||
| 21 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 22 | C8990403 | Trim |
|
- | |||||
| 23 | D7859306 | Grommet M.k. |
|
- | |||||
| 24 | 10049910 | Trim, Shelf |
|
- | |||||
| 25 | D7421254 | Glass Shelf M.k |
|
- | |||||
| 26 | D7853302 | Frame M.k. V |
|
- | |||||
| 27 | D7698324 | Pan-meat |
|
- | |||||
| 28 | D7698111 | Sleeve M.k. |
|
- | |||||
| 29 | D7862906 | Blank Side Rail |
|
- | |||||
| 29 | D7862905 | Blank Side Rail |
|
- | |||||
| 30 | D7859503 | Band M.k. Control |
|
- | |||||
| 31 | 10043101 | Ext. Rear Glass |
|
- | |||||
| 32 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 5.98 | ||||
| 32 | M0310716 | Plug |
|
- | |||||
| 32 | M0310720 | Plug |
|
- | |||||
| 33 | M0230923 | Screw |
|
- | |||||
| 34 | M0310305 | Plug, Button (wht) |
|
- | |||||
| 35 | B8362502 | Insul. Mk Plug |
|
- | |||||
| 36 | A3263905 | Gasket-per Ft |
|
- | |||||
| 37 | D7272709 | Container, Ice |
|
- | |||||
| 38 | D7859401 | Slide-mk Control |
|
- | |||||
| 39 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 10.58 | |||||
| 40 | 10182507 | Frame-crisper |
|
- | |||||
| 41 | D7616664 | Trim Front Crisper |
|
- | |||||
| NI | D7871126 | Glass Shelf Assy |
|
- | |||||
| NI | D7871125 | Ude D7871112q |
|
- | |||||
| NI | Y00000000 | See Note Add-on Ice Maker -- (available From Sales, See Pages 24 - 25) |
|
- | |||||
| NI | 10254702 | Crisper Frame Assy R |
|
- | |||||
| NI | 10254701 | Crisper Frame Assyl |
|
- |
