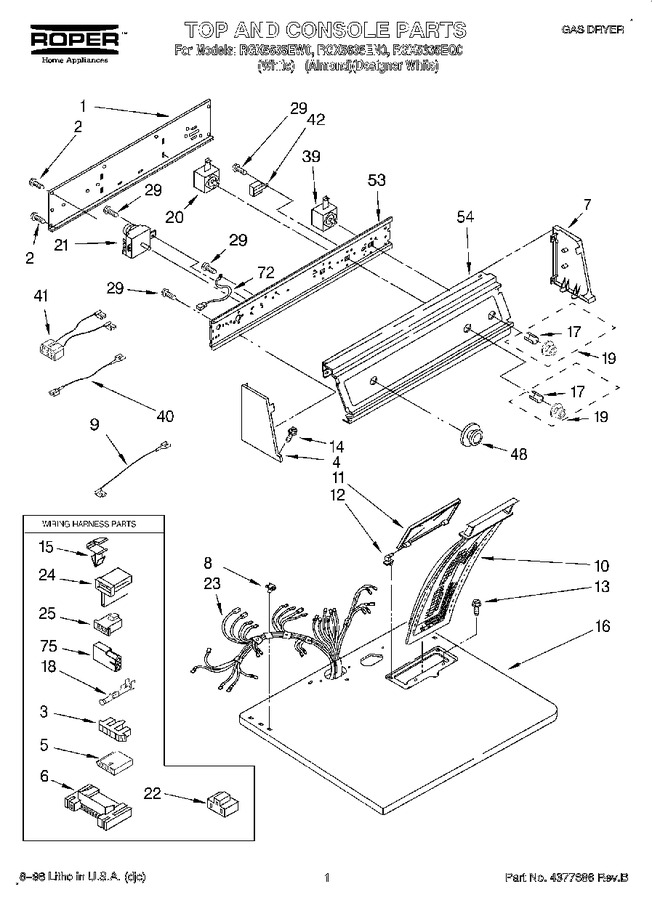

01 - Top And Console, Lit/optional
02 - Cabinet
03 - 3401771 Burner
04 - Bulkhead
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3397545 | Panel, Rear Console |
|
- | |||||
| 2 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 3 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 4 | 3358013 | Cap, End (l.h.) |
|
- | |||||
| 4 | 3358015 | For Model Rgx5635eq0 |
|
- | |||||
| 5 | 353425 | Connector (door Switch) |
|
- | |||||
| 6 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 7 | 3357995 | Cap, End (r.h.) |
|
- | |||||
| 7 | 3357997 | For Model Rgx5635eq0 |
|
- | |||||
| 8 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 9 | 3401694 | Wire, Jumper (tan) |
|
- | |||||
| 10 | 339392V | Screen, Lint (Replaces: 339392) |
|
Immediately | $ 41.91 | ||||
| 11 | 689310 | Cover, Lint Screen (almond) |
|
- | |||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 8.11 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 | |||||
| 15 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 16 | 3396023 | Top (almond) |
|
- | |||||
| 16 | 3396022 | Top (white) |
|
- | |||||
| 17 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 18 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 19 | 3398393 | Knob, Control (2) |
|
- | |||||
| 19 | 3398390 | For Model Rgx5635eq0 |
|
- | |||||
| 20 | 3399638 | Switch, Temperature |
|
$ 136.24 | |||||
| 21 | WP3976574 | Timer Assembly (60 Hz.) (Replaces: 3398137) |
|
Immediately | $ 437.84 | ||||
| 22 | 3401144 | Connector, (pts Relay) |
|
$ 12.81 | |||||
| 23 | 3405127 | Harness, Wiring |
|
- | |||||
| 24 | WP3403499 | Connector, 2-position Gas Valve (Replaces: 3403499) |
|
$ 6.02 | |||||
| 25 | WP3403498 | Connector, 3-position (gas Valve) (Replaces: 3403498) |
|
$ 7.30 | |||||
| 29 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 8.03 | |||||
| 39 | 3398096 | Relay, Push To Start |
|
$ 50.70 | |||||
| 40 | 3401684 | Wire, Jumper (black) |
|
$ 34.57 | |||||
| 41 | 8283286 | Wire Jumper Assembly (Replaces: 3396028) |
|
- | |||||
| 42 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 48 | 3405966 | Timer Knob & Dial |
|
- | |||||
| 48 | 3405965 | For Model Rgx5635eq0 |
|
- | |||||
| 53 | 3396293 | Bracket, Control |
|
- | |||||
| 54 | 3405696 | For Model Rgx5635eq0 |
|
- | |||||
| 54 | 3405694 | Panel, Control |
|
- | |||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 75 | 717252 | Receptacle, 2 Way |
|
- | |||||
| LIT3405518 | Guide, Use & Care |
|
- | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | ||||||
| LIT3401723 | Label, Wiring Diagram |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | ||||||
| LIT3405722 | Instructions, Door Reversing |
|
- | ||||||
| LIT3405338 | Instructions, Installation |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 |
