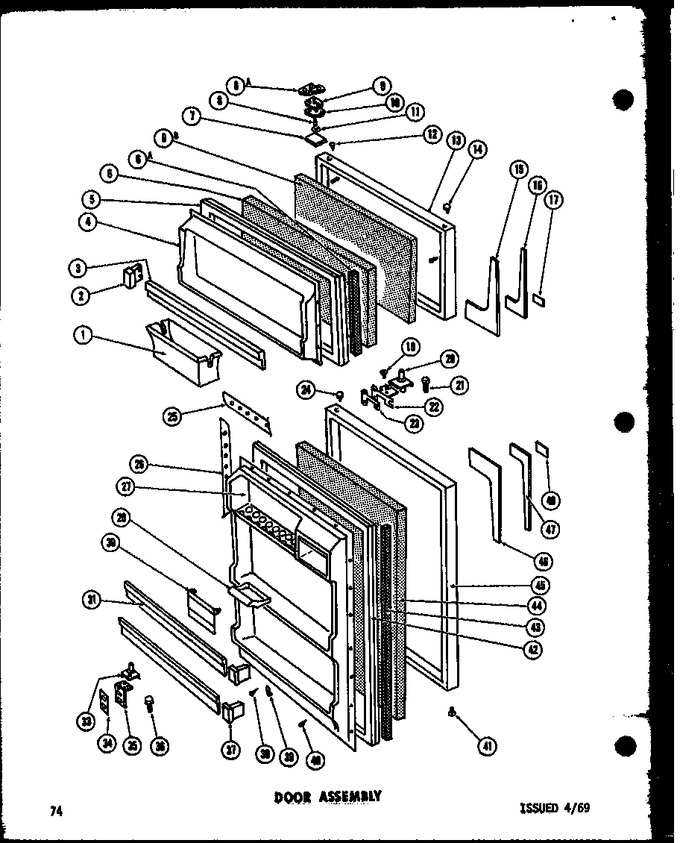

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D3934902		Ice Container		Appelez-nous	-
2	D3976807		Support		Appelez-nous	-
2	D3976808		Support		Appelez-nous	-
3	D3976703		Package Retainer		Appelez-nous	-
4	D3915303		Inner Door Panel, Fz		Appelez-nous	-
5	D3928204		Gasket		Appelez-nous	-
6	B0565609		Insulation		Appelez-nous	-
6	B0566707		Insulation		Appelez-nous	-
6	B0523564		Insulation Batt		Appelez-nous	-
7	M0275540		Sealer		Appelez-nous	-
8	B5640701		Top Hinge		Appelez-nous	-
8	A3089902		Sleeve Top Hinge		Appelez-nous	-
9	A3144001		Spacer		Appelez-nous	-
10	A3139701		Tap Strip		Appelez-nous	-
11	M0270522		Washer		Appelez-nous	-
12	M0310601		Plug		Appelez-nous	-
13	D7057717		Door Fr G-p-w Border		Appelez-nous	-
14	M5642301		Bushing, Hinge Pin		Appelez-nous	-
15	D7056601		Pad, Door Handle		Appelez-nous	-
16	D7057101		Handle, Door		Appelez-nous	-
17	C3623801		Nameplate - Cd		Appelez-nous	-
19	M0226931		Screw		Appelez-nous	-
20	B5640401		Center Hinge Assy		Appelez-nous	-
21	M0205731		Screw Phillips		Appelez-nous	-
22	B5640501		Center Hinge Assy		Appelez-nous	-
23	A3143501		Shim K		Appelez-nous	-
23	A3143502		Shim K		Appelez-nous	-
23	A3143503		Shim K		Appelez-nous	-
24	B5642301		Bushing, Hinge Pin		Appelez-nous	-
25	D3928102		Retainer Gasket		Appelez-nous	-
26	D3928105		Retainer Gasket		Appelez-nous	-
26	D3928104		Retainer Gasket		Appelez-nous	-
27	D7045501		Panel		Appelez-nous	-
29	D3799801		Butter Tray		Appelez-nous	-
30	D7026401		Butter Door		Appelez-nous	-
31	D3976703		Package Retainer		Appelez-nous	-
33	B5640901		Hinge Kit		Appelez-nous	-
34	A3143601		Shim		Appelez-nous	-
34	A3143603		Shim		Appelez-nous	-
34	A3143602		Shim		Appelez-nous	-
35	B5640201		Hinge Kit		Appelez-nous	-
36	M0246159		Screw		Appelez-nous	-
37	D3976805		Support		Appelez-nous	-
37	D3976806		Support		Appelez-nous	-
38	M0205518		Screw		Appelez-nous	-
39	A3139801		Stop Door		Appelez-nous	-
40	M0241118		Screw-sm		Appelez-nous	-
41	M0310604		Plug Button, Hinge Bushing Aut		Appelez-nous	-
42	D3928203		Gasket		Appelez-nous	-
43	B0523564		Insulation Batt		Appelez-nous	-
44	B5639606		Insulation		Appelez-nous	-
45	D7057718		Outer Door Shell, Refrig, Autu		Appelez-nous	-
46	D7056602		Handle Pad Kit		Appelez-nous	-
47	D7057102		Handle		Appelez-nous	-
48	C3633802		Nameplate		Appelez-nous	-
NI	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
NI	M0117201		Clip		Appelez-nous	-
NI	M0257231		Screw		Appelez-nous	-
NI	B0577902		Tie Bar		Appelez-nous	-
NI	A3079202		Strike, Light Switch		Appelez-nous	-
NI	A3143702		Shim		Appelez-nous	-
NI	A3139801		Stop Door		Appelez-nous	-
NI	M0207431		Screw		Appelez-nous	-
NI	M0211516		Screw A K		Appelez-nous	-
NI	M0310708		Plug		Appelez-nous	-
NI	A3069801		Support Bar Plate		Appelez-nous	-
NI	M0205518		Screw		Appelez-nous	-
NI	M0248231		Screw		Appelez-nous	-
NI	A3143701		Shim		Appelez-nous	-
NI	A3143703		Shim, Top Hinge .064		Appelez-nous	-
NI	M0310604		Plug Button, Hinge Bushing Aut		Appelez-nous	-
NI	M0241118		Screw-sm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
