Diagram # Part Number Description Series Availability Ships Price Add to Cart
153 M0202642 Screw Appelez-nous -
154 M0272605 Washer Appelez-nous -
155 C3575909 Motor Appelez-nous -
156 M0214617 Sems Appelez-nous -
157 B5638801 Tube, Drain Appelez-nous -
157 C3630902 Elbow Appelez-nous -
158 D7025320 Evaporator Appelez-nous -
159 M0214731 Screw Appelez-nous -
160 C3626701 Heater Def K Appelez-nous -
161 M0211831 Screw Appelez-nous -
162 M0102316 Clamp, Drier Appelez-nous -
163 C3603702 Angle, Back Appelez-nous -
164 B0598501 Blade, Fan Appelez-nous -
165 833697 Motor, Fan   (Replaces: B5646204) In-Stock Immediately $ 88.15

166 A3054501 Clip-cond Appelez-nous -
167 R9800670 Kit, Screw   (Replaces: M0211030) Special Order $ 10.58

168 WPB2150504 Drier   (Replaces: B0525001) Special Order $ 136.98

169 M0102315 Clamp Appelez-nous -
170 M0257037 Sems Fastner Appelez-nous -
171 A3013906 Spacer Appelez-nous -
172 M0218116 Screw Appelez-nous -
173 M0257039 Sems Fastner Appelez-nous -
174 A3013907 Spacer Appelez-nous -
175 A3085401 Bracket, Support Appelez-nous -
176 M0286003 Nut A Appelez-nous -
177 D7035701 Condenser Appelez-nous -
178 B0544101 Spacer Appelez-nous -
179 M0220101 Screw Appelez-nous -
180 B0598701 Bracket, Cond Motor Appelez-nous -
181 A3116301 Deflector Appelez-nous -
182 C3617702 Angle Appelez-nous -
183 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

184 B0599701 Retainer Appelez-nous -
185 B0599603 Seal Appelez-nous -
186 C3617601 Fan Shroud Appelez-nous -
187 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

188 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

189 M0233643 Screw Appelez-nous -
190 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

191 WP489069 Screw-sd   (Replaces: M0233704) In-Stock Immediately $ 8.40

192 D7001001 Pan, Drain Appelez-nous -
193 C3588103 Bracket Appelez-nous -
194 D7004106 Timer, Defrost Appelez-nous -
195 M0102406 Clamp Appelez-nous -
196 M0211532 Screw Appelez-nous -
197 M0221132 Screw Appelez-nous -
198 YA0381501 Clip, Waterline Appelez-nous -
199 A3026101 Grommet K Appelez-nous -
200 A3072001 Sleeve K Appelez-nous -
201 M0114401 Clip Appelez-nous -
202 D3871701 Compresssor Appelez-nous -
202 D3871901 Compressor-ae1410a-1/4 Appelez-nous -
203 A3043601 Spring K Appelez-nous -
204 C3552901 Overload Appelez-nous -
205 C3553401 Relay Appelez-nous -
206 B0551801 Terminal Cover Appelez-nous -
207 A3041801 Strap K Appelez-nous -
208 A0319701 Strain Relief Appelez-nous -
209 C3628201 Power Cord Appelez-nous -
210 C3620601 Back, Mach Compt K Appelez-nous -
211 C3620901 Back, Mach Compt K Appelez-nous -
212 D7030301 Heat Exchanger Appelez-nous -
213 A4568701 Grommet Appelez-nous -
214 B5636401 Thermostat K Appelez-nous -
215 D7025301 Evaporator Appelez-nous -
216 M0010510 X$x Nail Appelez-nous -
217 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

218 YA0381501 Clip, Waterline Appelez-nous -
219 C3536203 Bracket Appelez-nous -
220 B5622101 Fan Blade Appelez-nous -
NI B5629801 Insulation Appelez-nous -
NI A3128101 Grommet Appelez-nous -
NI A3125701 Stop,drain Pan Appelez-nous -
NI M0274018 Washer Appelez-nous -
NI M0102506 Clamp Appelez-nous -
NI A3063101 Pad A Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

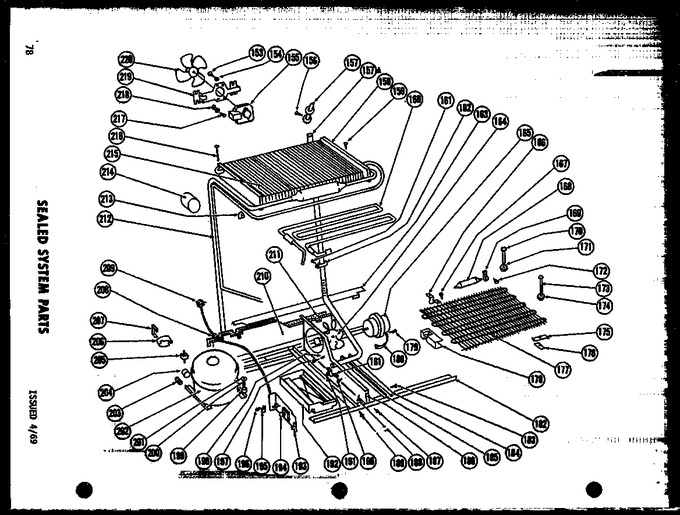

Diagram for TR15F-1-C
