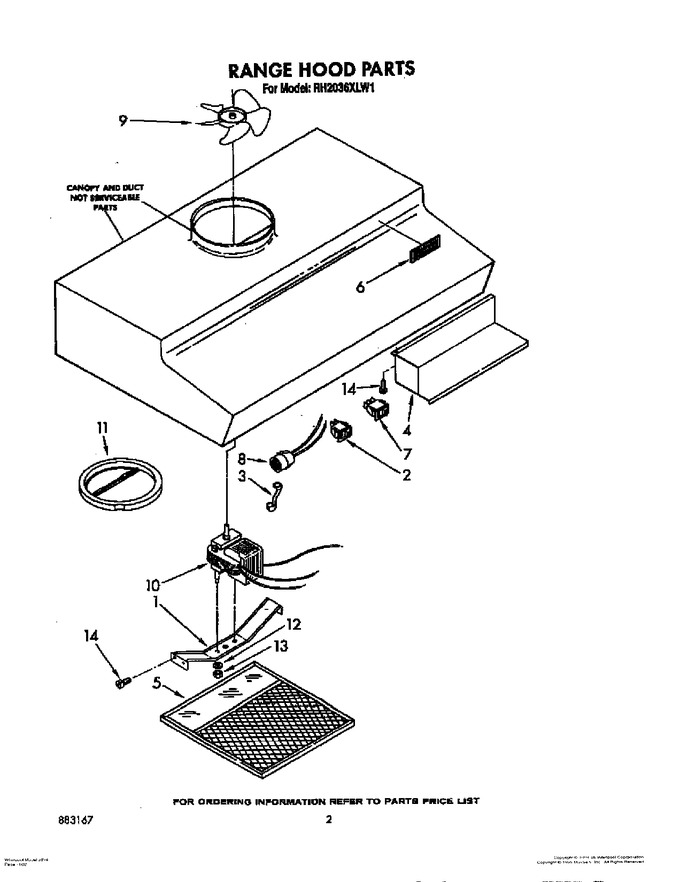

02 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 830756 | Bracket, Motor |
|
- | |||||
| 2 | W10673703 | Switch, Light (Replaces: 830768) |
|
$ 129.60 | |||||
| 3 | 830327 | Bushing, Strain Relief |
|
- | |||||
| 4 | 883123 | Cover, Wiring (stainless Steel) |
|
- | |||||
| 4 | 883096 | Cover, Wiring (almond) |
|
$ 21.97 | |||||
| 4 | 883095 | Cover, Wiring (white) |
|
$ 15.77 | |||||
| 5 | 883103 | Filter, With Lens |
|
- | |||||
| 6 | 830886 | Nameplate |
|
- | |||||
| 7 | 830769 | Switch, Fan |
|
- | |||||
| 8 | 883094 | Receptacle, Light |
|
- | |||||
| 9 | 830428 | Blade, Fan |
|
- | |||||
| 10 | 830757 | Motor, 2-speed |
|
- | |||||
| 11 | 883026 | Damper Assembly |
|
- | |||||
| 12 | 830462 | Washer, No. 8 (2) |
|
- | |||||
| 13 | WP486255 | Nut, 8-32 (2) (Replaces: 830484) |
|
$ 5.82 | |||||
| 14 | WP489069 | Screw, 8 X 1/4 (6) (Replaces: 830465) |
|
Immediately | $ 7.56 | ||||
| LIT830735 | Order Blank, Filter |
|
- | ||||||
| LIT883167 | List, Repair Parts |
|
- | ||||||
| LIT883104 | Instructions, Installation & Operating |
|
- |
