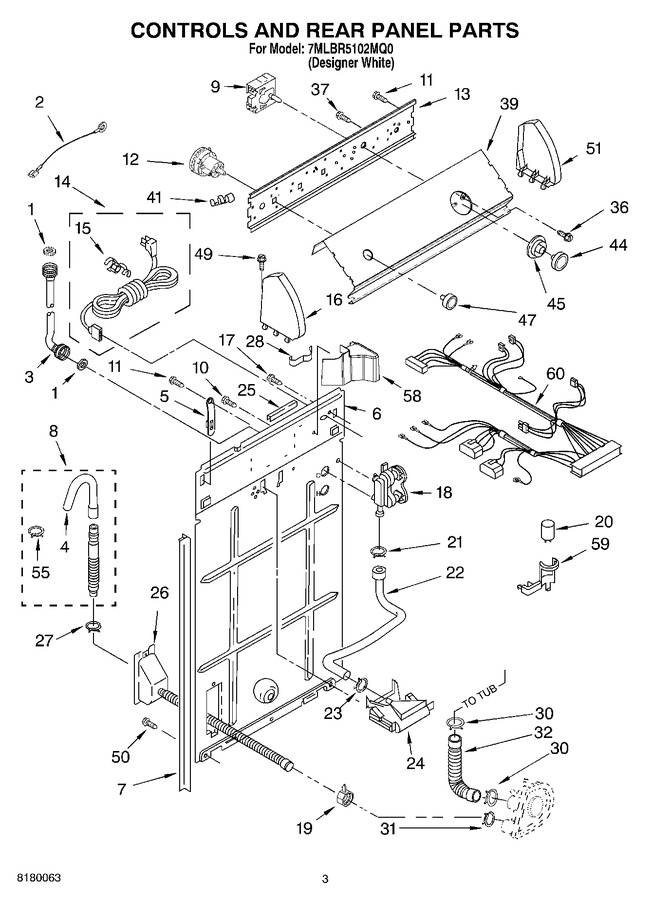

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (2) (Replaces: 16123) |
|
$ 8.16 | |||||
| 2 | 3398893 | Wire, Ground |
|
- | |||||
| 3 | WP89503 | Hose, Water Inlet (Replaces: 3949374) |
|
Immediately | $ 24.09 | ||||
| 4 | WP3357027 | Nozzle-drain Hose (Replaces: 3357027) |
|
$ 97.86 | |||||
| 5 | WP8568314 | Strap, Console (2) (Replaces: 8318255) |
|
$ 8.17 | |||||
| 6 | 8318407 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 27.57 | |||||
| 8 | 285664 | Hose, Drain (4 Ft.) (Replaces: 3951609) |
|
Immediately | $ 36.89 | ||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 63.94 | ||||
| 8 | 285666 | Hose, Drain (9 Ft.) (not Included) (Replaces: 661577) |
|
Immediately | $ 62.34 | ||||
| 9 | 8542377 | Timer, Control (50 Hz.) (motor Not A Service Part) |
|
- | |||||
| 10 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 11 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 12 | W10339228 | Switch, Water Level (Replaces: 3366849) |
|
Immediately | $ 232.22 | ||||
| 13 | 3948814 | Bracket, Control |
|
- | |||||
| 14 | 8532158 | Cord, Power |
|
- | |||||
| 15 | 3949468 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 8271369 | Cap, End (l.h.) |
|
- | |||||
| 17 | WP3351614 | Screw (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 18 | 8541697 | Valve, Water Inlet-single Port |
|
- | |||||
| 19 | 3976395 | Clamp, Hose |
|
$ 11.96 | |||||
| 20 | WP8572717 | Capacitor (Replaces: 661606) |
|
Immediately | $ 80.14 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 8.82 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 62662) |
|
Immediately | $ 24.78 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 8.82 | ||||
| 24 | WP3347034 | Break, Vacuum (Replaces: 3347034) |
|
Immediately | $ 75.28 | ||||
| 25 | 303294 | Edge Protector |
|
- | |||||
| 26 | WPW10358149 | Assembly, Drain Hose (Replaces: 8317940) |
|
Immediately | $ 48.16 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 3366912) |
|
Immediately | $ 8.52 | ||||
| 28 | 8528351 | Clip, Harness (Replaces: 3347812) |
|
- | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 8.58 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 3951449) |
|
Immediately | $ 28.99 | ||||
| 36 | WP3400818 | Screw, Timer Mounting (Replaces: 3400818) |
|
$ 8.81 | |||||
| 37 | 3179795 | Screw, Ground |
|
- | |||||
| 39 | 8539617 | Panel, Console |
|
- | |||||
| 41 | W10113937 | Clip, Grounding (Replaces: 357572) |
|
$ 11.37 | |||||
| 44 | W10807860 | Knob, Timer (Replaces: 8271345) |
|
Immediately | $ 52.47 | ||||
| 45 | WP3957849 | Dial, Timer (Replaces: 8271351) |
|
$ 48.07 | |||||
| 47 | WP3957799 | Knob, Control (Replaces: 8271339) |
|
$ 55.06 | |||||
| 49 | WP388326 | Screw, 8-18 X 1.25 (panel To Top) (Replaces: 388326) |
|
$ 9.29 | |||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 51 | 8271363 | Cap, End (r.h.) |
|
- | |||||
| 55 | WP3357331 | Clamp, Drain Hose (Replaces: 3366913) |
|
$ 8.19 | |||||
| 58 | 8314879 | Shield, Inlet Valve |
|
- | |||||
| 59 | 8318201 | Clip, Capacitor |
|
- | |||||
| 60 | 3956525 | Harness, Wiring (for Detail See Pages 9 & 10) |
|
- |
