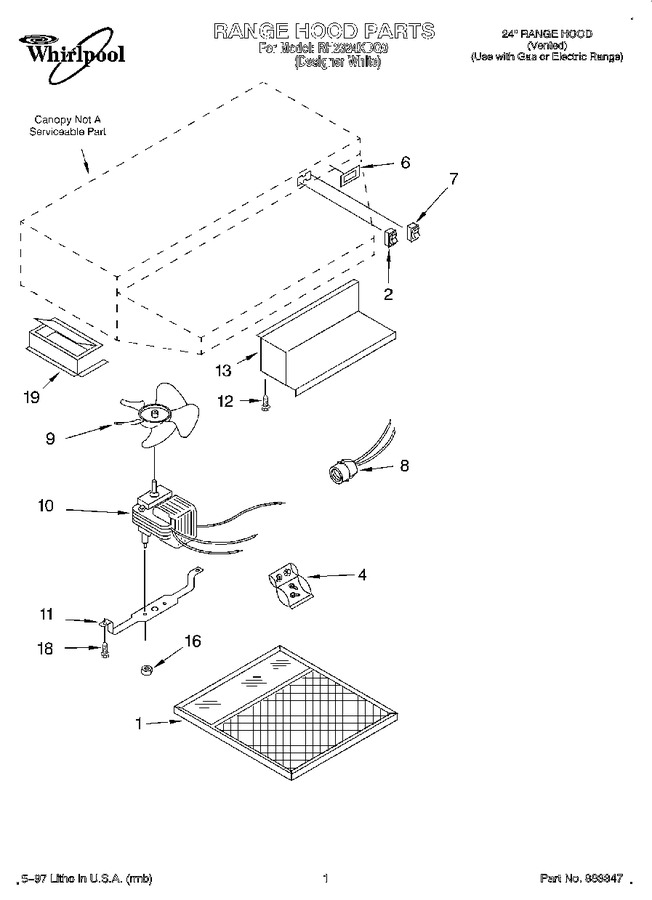

SELECT A DIAGRAM

01 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	883103		Filter, With Lens		Appelez-nous	-
2	883261		Switch, Light		Appelez-nous	-
4	883191		Installation, Hardware		Appelez-nous	-
6	883307		Nameplate (white Model)		Appelez-nous	-
7	W10673703		Switch, Fan   (Replaces: 883262)				$ 129.60
8	883094		Light Socket		Appelez-nous	-
9	830428		Blade, Fan		Appelez-nous	-
10	830757		Motor, 2-speed		Appelez-nous	-
11	883126		Bracket, Motor		Appelez-nous	-
12	WP489069		Screw, 8 X 1/4   (Replaces: 830465)			Immediately	$ 7.56
13	883095		Cover, Wiring				$ 15.77
16	883353		Nut, 6-32 (2)		Appelez-nous	-
18	WP488234		Screw, 8-32 X 1/4 (2)   (Replaces: 883354)				$ 6.37
19	830753		Damper		Appelez-nous	-
	LIT830735		Order Blank, Filter		Appelez-nous	-
	LIT883184		Wiring Diagram		Appelez-nous	-
	LIT883345		Installation & Operating Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
