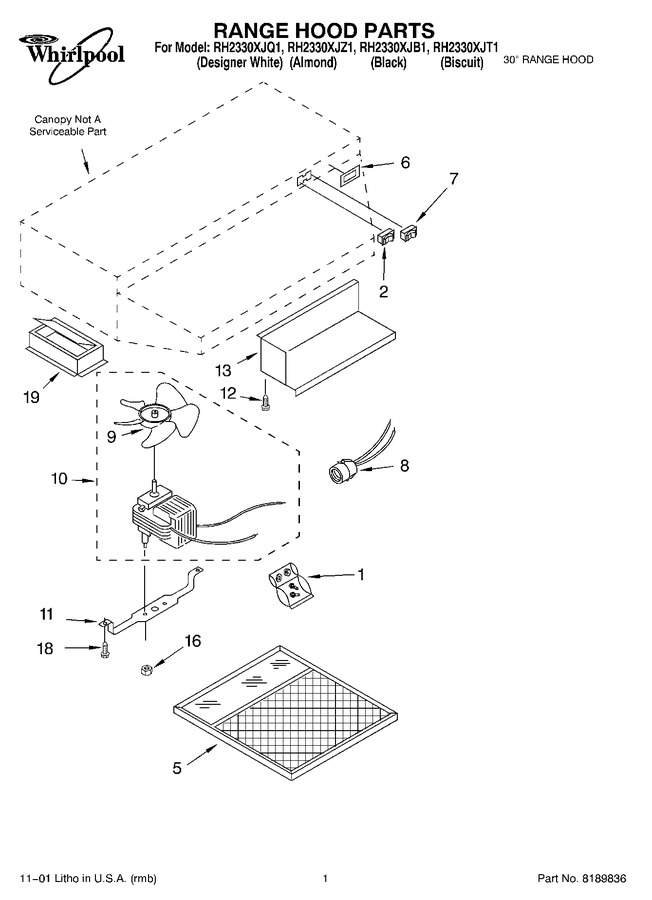

01 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 883191 | Installation, Hardware |
|
- | |||||
| 2 | 8189843 | Switch, Light (white Model) |
|
- | |||||
| 2 | 8189844 | Switch, Light (almond Model) |
|
- | |||||
| 2 | 8189845 | Switch, Light (black Model) |
|
- | |||||
| 2 | 8189846 | Switch, Light (biscuit Model) |
|
- | |||||
| 5 | 883103 | Filter, With Lens |
|
- | |||||
| 6 | 8189512 | Nameplate (almond Model) |
|
- | |||||
| 6 | 8189511 | Nameplate (white Model) |
|
- | |||||
| 6 | 8189514 | Nameplate (biscuit Model) |
|
- | |||||
| 6 | 8189513 | Nameplate (black Model) |
|
- | |||||
| 7 | 8189850 | Switch, Fan (biscuit Model) |
|
- | |||||
| 7 | 8189849 | Switch, Fan (black Model) |
|
- | |||||
| 7 | 8189847 | Switch, Fan (white Model) |
|
- | |||||
| 7 | 8189848 | Switch, Fan (almond Model) |
|
- | |||||
| 8 | 883094 | Light Socket |
|
- | |||||
| 9 | 883382 | Blade, Fan |
|
- | |||||
| 10 | 883378 | Motor/fan Assembly |
|
- | |||||
| 11 | 883397 | Bracket, Motor |
|
- | |||||
| 12 | WP489069 | Screw, 8 X 1/4 (Replaces: 830465) |
|
Immediately | $ 7.56 | ||||
| 13 | 883169 | Cover, Wiring (black) |
|
- | |||||
| 13 | 883096 | Cover, Wiring (almond/biscuit) |
|
$ 21.97 | |||||
| 13 | 883095 | Cover, Wiring (white) |
|
$ 15.77 | |||||
| 16 | 883353 | Nut, 6-32 (2) |
|
- | |||||
| 18 | WP488234 | Screw, 8-32 X 1/4 (2) (Replaces: 883354) |
|
$ 6.37 | |||||
| 19 | 830753 | Damper |
|
- | |||||
| LIT830735 | Order Blank, Filter |
|
- | ||||||
| LIT883184 | Wiring Diagram |
|
- | ||||||
| LIT8284867 | Installation & Operating Instructions |
|
- |
