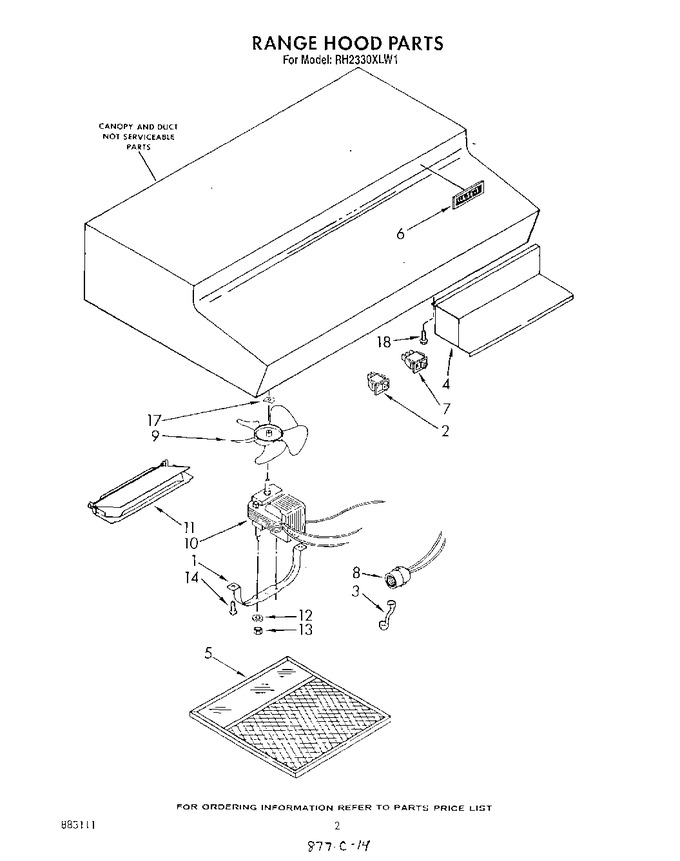

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	830764		Bracket, Motor		Appelez-nous	-
2	W10673703		Switch, Light   (Replaces: 830768)				$ 129.60
3	883024		Bushing, Strain Relief		Appelez-nous	-
4	883123		Cover, Wiring (stainless)		Appelez-nous	-
4	883096		Cover, Wiring (almond)				$ 21.97
4	883095		Cover, Wiring (white)				$ 15.77
5	883103		Filter, With Lens		Appelez-nous	-
6	830886		Nameplate		Appelez-nous	-
7	830769		Switch, Fan		Appelez-nous	-
8	883044		Receptacle, Light		Appelez-nous	-
9	830428		Blade, Fan		Appelez-nous	-
10	830770		Motor, 2-speed		Appelez-nous	-
11	830368		Damper Assembly		Appelez-nous	-
12	830462		Washer, No. 8 (2)		Appelez-nous	-
13	WP488130		Nut, 8-32 (2)   (Replaces: 883076)				$ 6.59
14	830767		Screw, 8 X 1/4 (2)		Appelez-nous	-
17	883075		Retainer, 3/16		Appelez-nous	-
18	WP489069		Screw, 8 X 1/4 (2)   (Replaces: 830465)			Immediately	$ 7.56
	LIT830735		Order Blank, Filter		Appelez-nous	-
	LIT883111		List, Repair Parts		Appelez-nous	-
	LIT883105		Instructions, Installation & Operating		Appelez-nous	-
