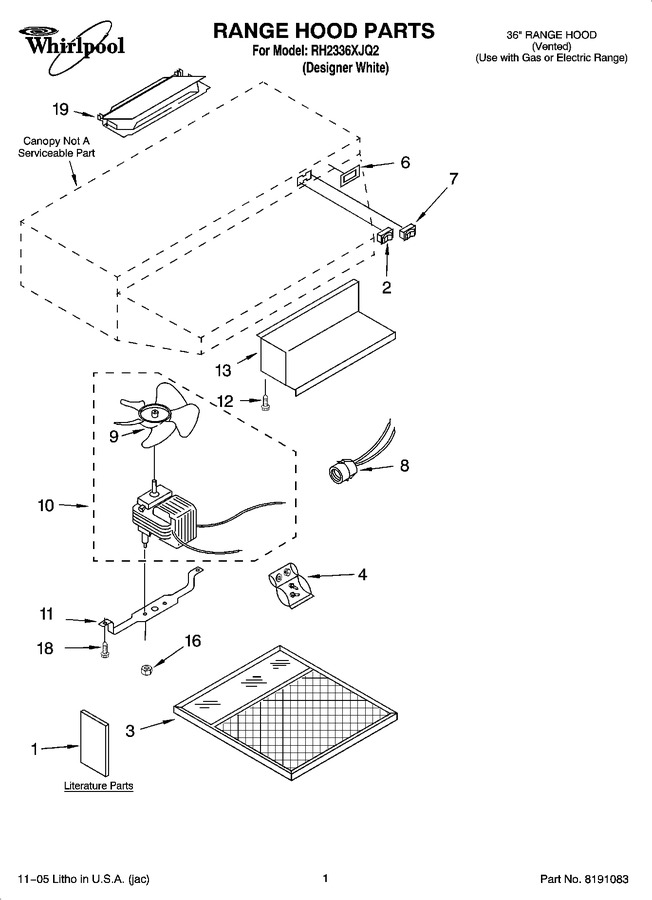

01 - Range Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 883184 | Wiring Diagram |
|
- | |||||
| 1 | 9763371 | Instructions, Installation |
|
- | |||||
| 2 | 8189843 | Switch, Light |
|
- | |||||
| 3 | 883103 | Filter, With Lens |
|
- | |||||
| 4 | 883191 | Installation, Hardware |
|
- | |||||
| 6 | 8189511 | Name Plate |
|
- | |||||
| 7 | 8189847 | Switch, Fan |
|
- | |||||
| 8 | 883094 | Light Socket |
|
- | |||||
| 9 | 883382 | Blade, Fan |
|
- | |||||
| 10 | 883378 | Motor/fan Assembly |
|
- | |||||
| 11 | 883397 | Bracket, Motor |
|
- | |||||
| 12 | WP489069 | Screw (Replaces: 830465) |
|
Immediately | $ 7.56 | ||||
| 13 | 883095 | Cover, Wiring |
|
$ 15.77 | |||||
| 16 | 883353 | Nut, 6-32 |
|
- | |||||
| 18 | 884354 | Screw, |
|
- | |||||
| 19 | 830753 | Damper 8-32 X 1/4 (2) |
|
- |
