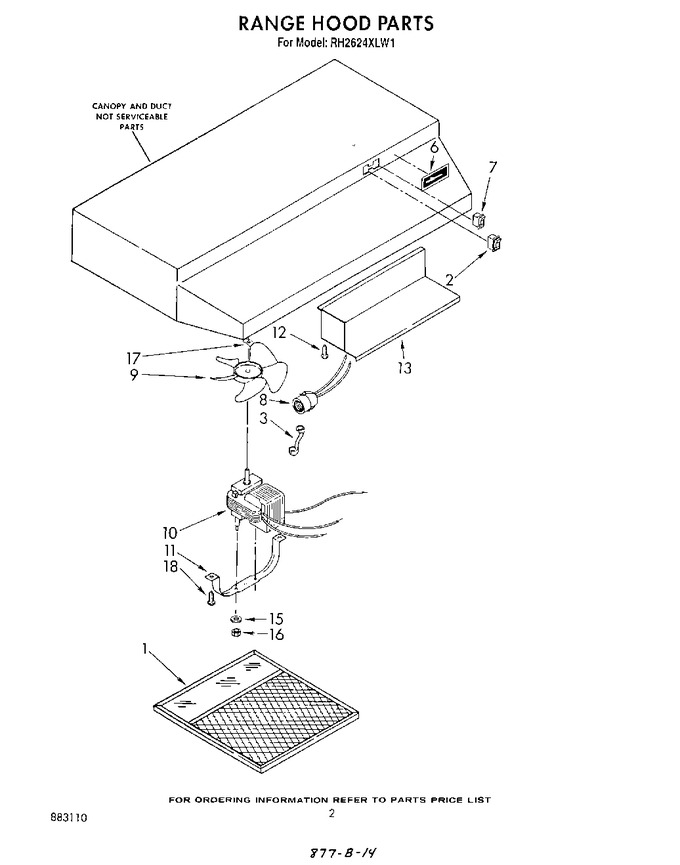

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 883093 | Lens, Light With Filter |
|
- | |||||
| 2 | W10673703 | Switch, Light (Replaces: 830768) |
|
$ 129.60 | |||||
| 3 | 883024 | Bushing, Strain Relief |
|
- | |||||
| 6 | 883101 | Nameplate |
|
- | |||||
| 7 | 830769 | Switch, Fan |
|
- | |||||
| 8 | 883094 | Light Socket |
|
- | |||||
| 9 | 830766 | Blade, Fan |
|
- | |||||
| 10 | 830765 | Motor, 2-speed |
|
- | |||||
| 11 | 830764 | Bracket, Motor |
|
- | |||||
| 12 | WP489069 | Screw, 8 X 1/4 (Replaces: 830465) |
|
Immediately | $ 7.56 | ||||
| 13 | 883095 | Cover, Wiring (white) |
|
$ 15.77 | |||||
| 13 | 883123 | Cover, Wiring (stainless) |
|
- | |||||
| 13 | 883096 | Cover, Wiring (almond) |
|
$ 21.97 | |||||
| 15 | 830462 | Washer, No. 8 (2) |
|
- | |||||
| 16 | WP488130 | Nut, 8-32 (2) (Replaces: 883076) |
|
$ 6.59 | |||||
| 17 | 883075 | Retainer (1) |
|
- | |||||
| 18 | WP681414 | Screw, No.10 X 1/2 (Replaces: 883102) |
|
Immediately | $ 7.62 | ||||
| 21 | 883077 | Screw, Ground |
|
- | |||||
| LIT830735 | Order Blank, Filter |
|
- | ||||||
| LIT883110 | List, Repair Parts |
|
- | ||||||
| LIT883099 | Installation & Operating Instructions |
|
- |
