View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
New Model Search:

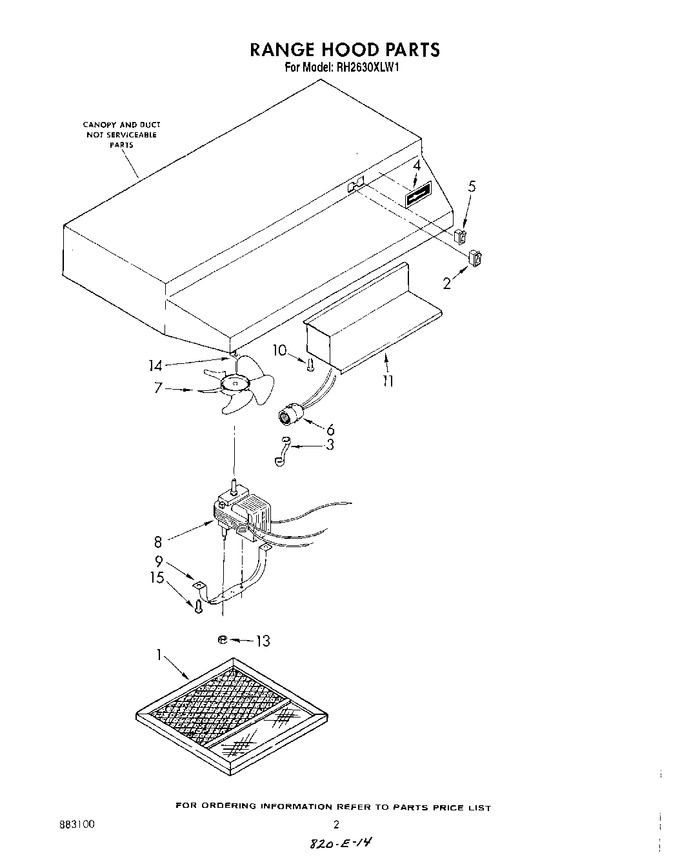

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 883093 | Filter - Lens Combination |
|
- | |||||
| 2 | W10673703 | Switch, Light (Replaces: 830768) |
|
$ 129.60 | |||||
| 3 | 883024 | Bushing, Strain Relief |
|
- | |||||
| 4 | 883101 | Nameplate |
|
- | |||||
| 5 | 830769 | Switch, Fan |
|
- | |||||
| 6 | 883094 | Light Socket |
|
- | |||||
| 7 | 830766 | Blade, Fan |
|
- | |||||
| 8 | 830765 | Motor, 2-speed |
|
- | |||||
| 9 | 830764 | Bracket, Motor |
|
- | |||||
| 10 | WP489069 | Screw, No.8x1/4 (Replaces: 830465) |
|
Immediately | $ 7.56 | ||||
| 11 | 883096 | Cover, Wiring (almond) |
|
$ 21.97 | |||||
| 11 | 883098 | Cover, Wiring (platinum, Stainless) |
|
Immediately | $ 20.66 | ||||
| 11 | 883095 | Cover, Wiring (white) |
|
$ 15.77 | |||||
| 11 | 883097 | Cover, Wiring (toast) |
|
$ 21.01 | |||||
| 13 | WP488130 | Nut No.8-32 (2) (Replaces: 883076) |
|
$ 6.59 | |||||
| 14 | 883075 | Push Nut (1) |
|
- | |||||
| 15 | WP681414 | Screw, No.10x1/2 (2) (Replaces: 883102) |
|
Immediately | $ 7.62 | ||||
| LIT830735 | Order Blank, Filter |
|
- | ||||||
| LIT883100 | Repair Parts List |
|
- | ||||||
| LIT883099 | Installation & Operating Instructions |
|
- |
