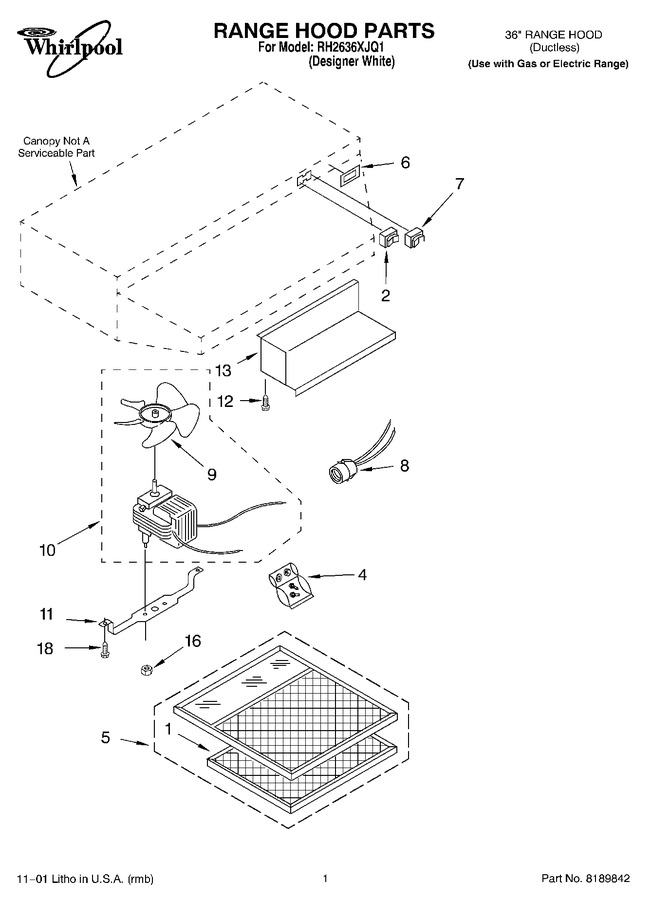

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 883151 | Pad, Charcoal (replacement, Package Of 3) |
|
$ 23.55 | |||||
| 2 | 8189843 | Switch, Light |
|
- | |||||
| 4 | 883185 | Installation, Hardware |
|
- | |||||
| 5 | 883149 | Filter, With Lens (includes 1 Charcoal Pad) |
|
- | |||||
| 6 | 8189511 | Name Plate |
|
- | |||||
| 7 | 8189847 | Switch, Fan |
|
- | |||||
| 8 | 883094 | Light Socket |
|
- | |||||
| 9 | 883381 | Blade, Fan |
|
- | |||||
| 10 | 883377 | Motor, Blade Assy |
|
- | |||||
| 11 | 883397 | Bracket, Motor |
|
- | |||||
| 12 | WP489069 | Screw (Replaces: 830465) |
|
Immediately | $ 7.56 | ||||
| 13 | 883095 | Cover, Wiring |
|
$ 15.77 | |||||
| 16 | 883353 | Nut, 6-32 (2) |
|
- | |||||
| 18 | WP488234 | Screw, 8-32 X 1/4 (2) (Replaces: 883354) |
|
$ 6.37 | |||||
| LIT830735 | Order Blank, Filter |
|
- | ||||||
| LIT8284867 | Installation & Operating Instructions (use With Gas Or Electric Range) |
|
- | ||||||
| LIT883184 | Wiring Diagram |
|
- |
