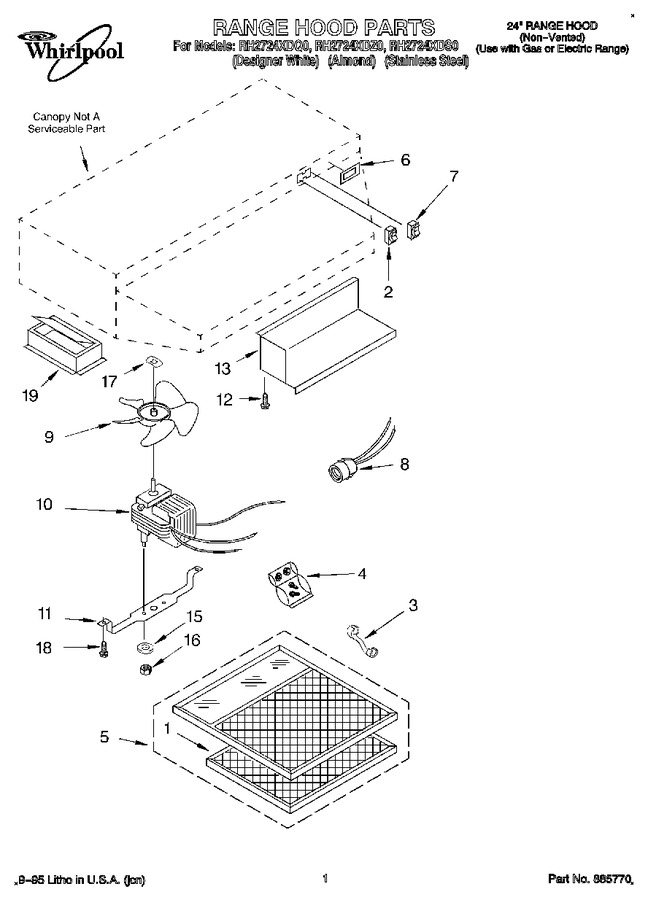

01 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 883151 | Pad, Charcoal (replacement, Package Of 3) |
|
$ 23.55 | |||||
| 2 | 883183 | Switch, Light (white Model) |
|
- | |||||
| 2 | 883335 | Switch, Light (almond Model) |
|
- | |||||
| 2 | W10673703 | Switch, Light (stainless Model) (Replaces: 883203) |
|
$ 129.60 | |||||
| 3 | 830327 | Bushing, Strain Relief |
|
- | |||||
| 4 | 883191 | Installation, Hardware |
|
- | |||||
| 5 | 883149 | Filter, With Lens (includes 1 Charcoal Pad) |
|
- | |||||
| 6 | 883308 | Nameplate (almond Model) |
|
- | |||||
| 6 | 883309 | Nameplate (stainless Model) |
|
- | |||||
| 6 | 883307 | Nameplate (white Model) |
|
- | |||||
| 7 | 883334 | Switch, Fan (almond Model) |
|
- | |||||
| 7 | 830769 | Switch, Fan (stainless Model) |
|
- | |||||
| 7 | W10673703 | Switch, Fan (white Model) (Replaces: 883182) |
|
$ 129.60 | |||||
| 8 | 883094 | Light Socket |
|
- | |||||
| 9 | 830428 | Blade, Fan |
|
- | |||||
| 10 | 830757 | Motor, 2-speed |
|
- | |||||
| 11 | 883126 | Bracket, Motor |
|
- | |||||
| 12 | WP489069 | Screw, 8 X 1/4 (Replaces: 830465) |
|
Immediately | $ 7.56 | ||||
| 13 | 883123 | Cover, Wiring (stainless) |
|
- | |||||
| 13 | 883095 | Cover, Wiring (white) |
|
$ 15.77 | |||||
| 13 | 883096 | Cover, Wiring (almond) |
|
$ 21.97 | |||||
| 15 | 830462 | Washer, No. 8 (2) |
|
- | |||||
| 16 | WP486255 | Nut, 8-32 (2) (Replaces: 830484) |
|
$ 5.82 | |||||
| 17 | 830411 | Retainer (1) |
|
- | |||||
| 18 | 830767 | Screw, 10 X 3/8 (2) |
|
- | |||||
| 19 | 830368 | Damper Assembly |
|
- | |||||
| LIT830735 | Order Blank, Filter |
|
- | ||||||
| LIT883184 | Wiring Diagram |
|
- | ||||||
| LIT883304 | Installation & Operating Instructions |
|
- |
